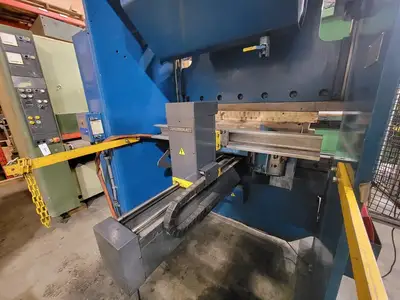

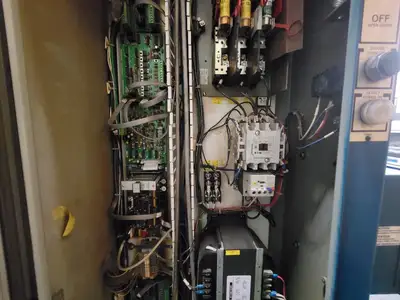

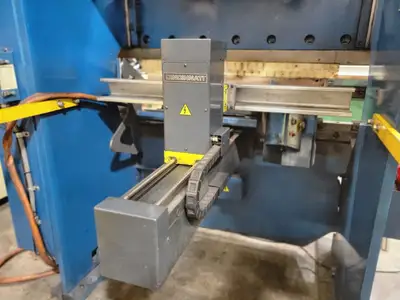

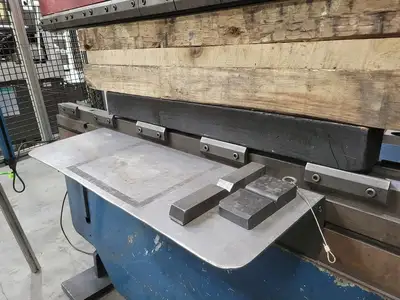

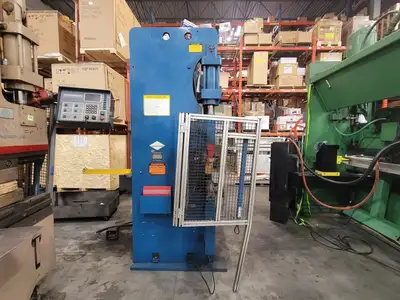

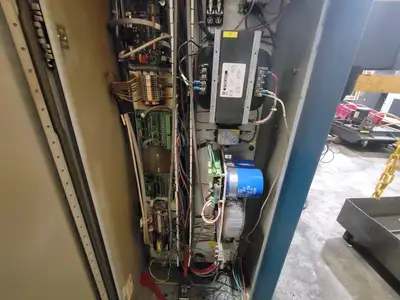

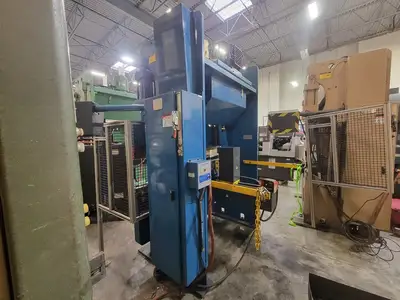

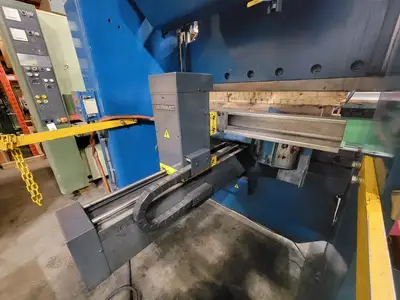

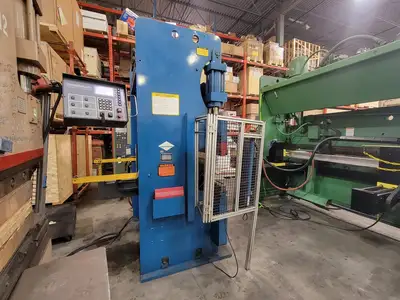

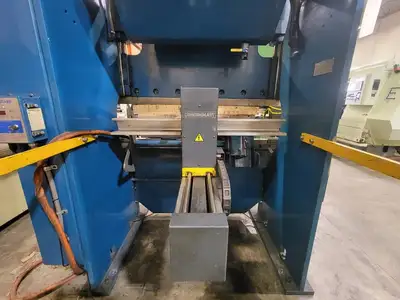

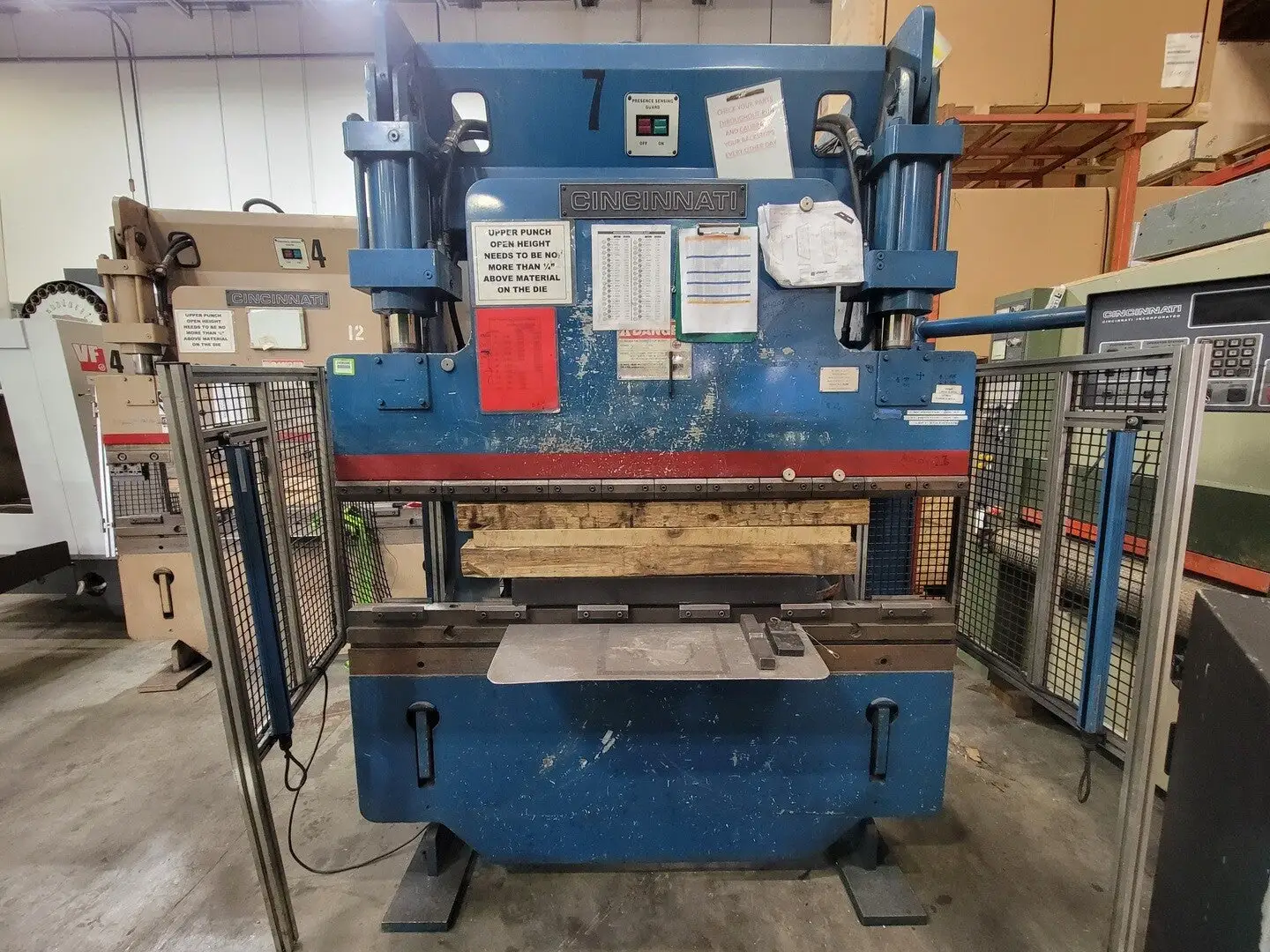

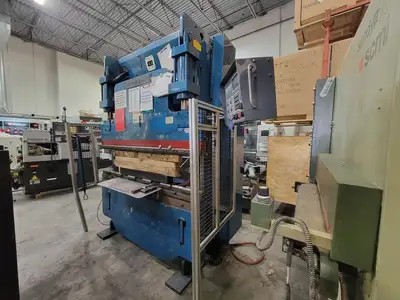

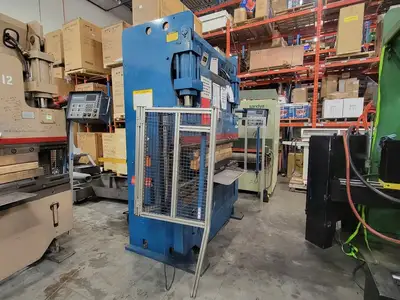

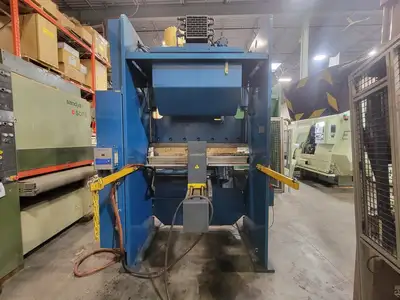

USED 1999 CINCINNATI 60CBII X 4

Bed Length: 6 ft
Tons: 60 ton
Brake Type: Hydraulic

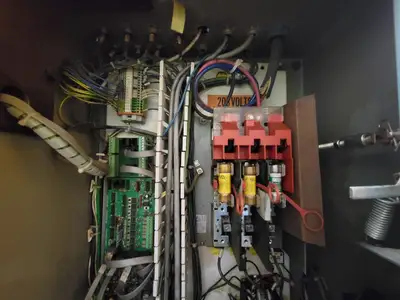

Voltage: 208 volts
Phase: 3-phase
Brochure PDF
Clear distance between housings: 4' 6"
Total overall die surface: 6 ft
Thickness x length: 1/4" plate x 3' 4"
Over vee die opening: 2"
Standard stroke length: 8"
Bed to ram height:
Closed: 9"
Open: 17"
Throat clearance from die centerline: 10"
Approximate ram speed:
High approach: 180 ipm
Forming:
Low: 10 ipm
Medium: 35 ipm
High: 70 ipm
Return: 195 ipm
Standard bed:
Distance from floor to top: 34"
Width at top bed: 3-1/2"
