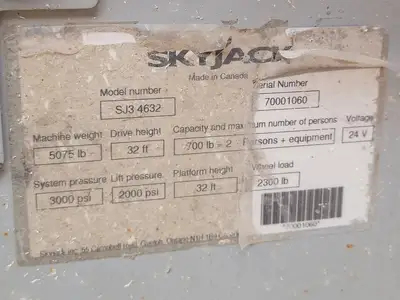

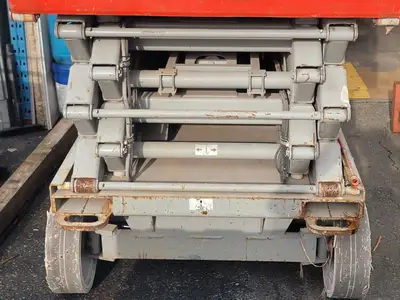

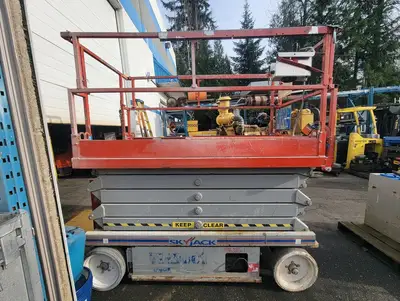

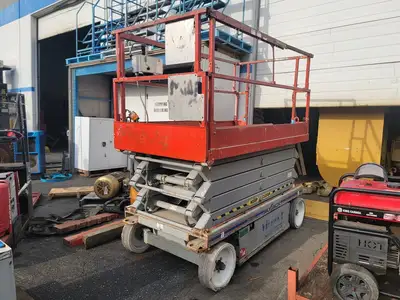

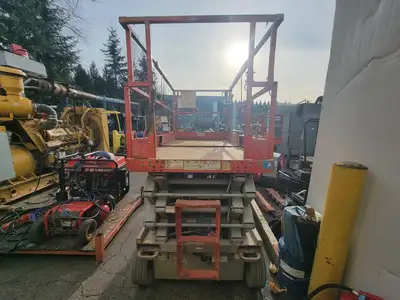

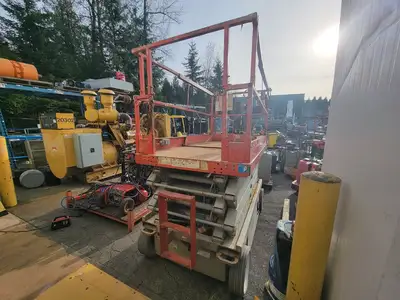

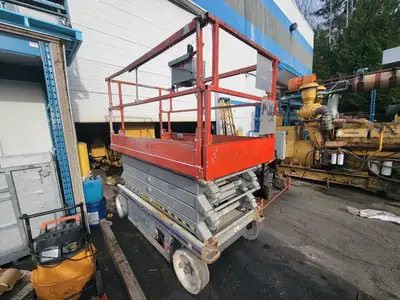

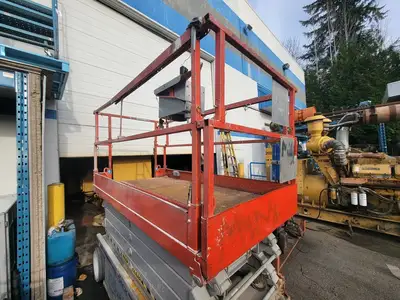

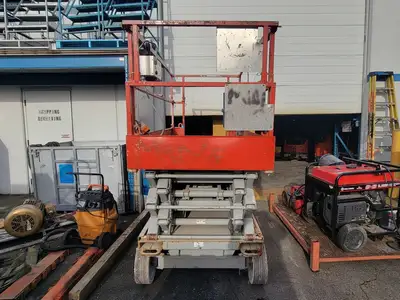

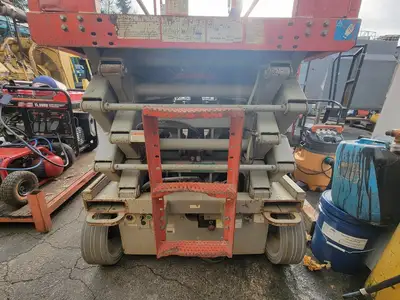

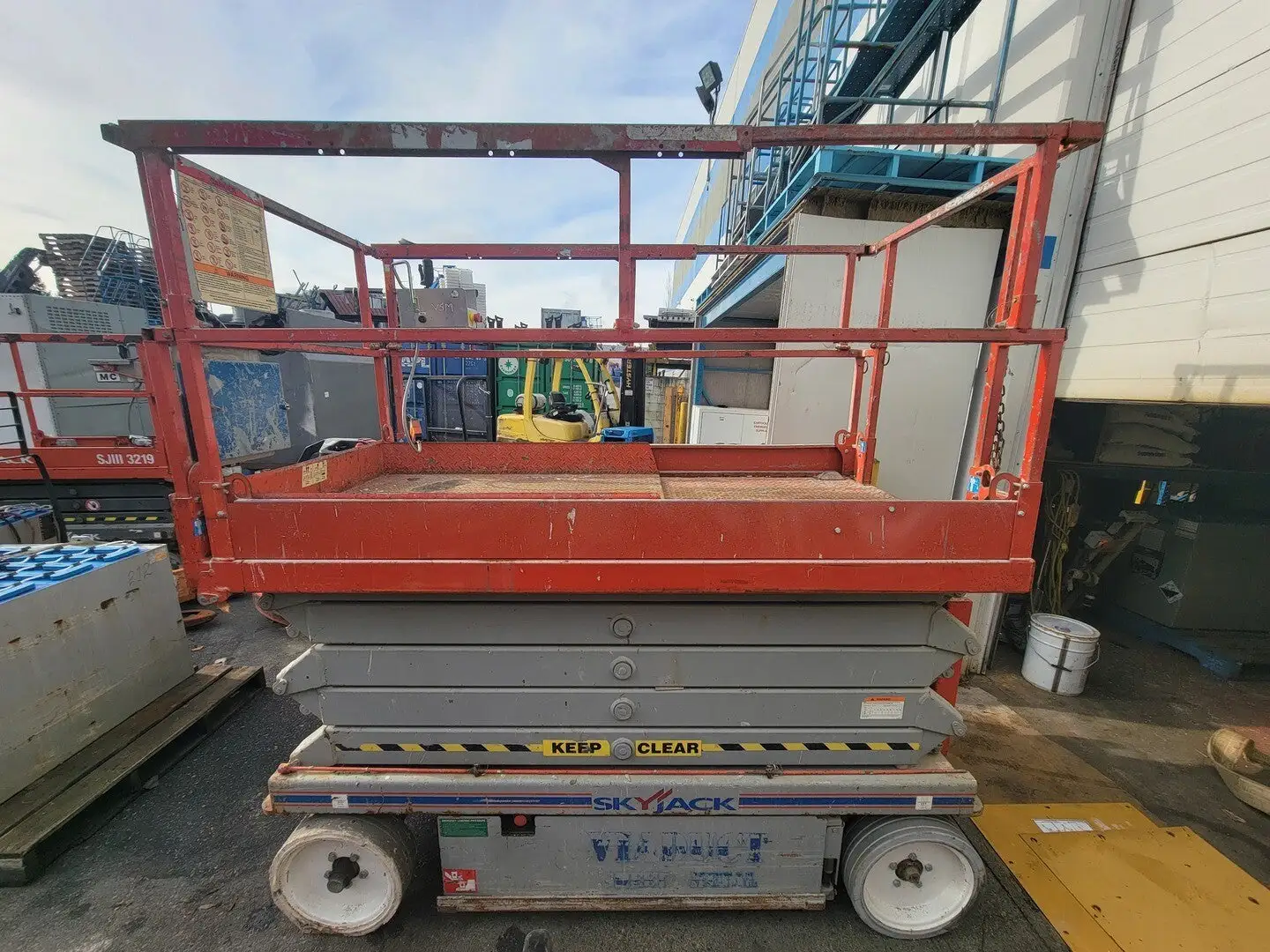

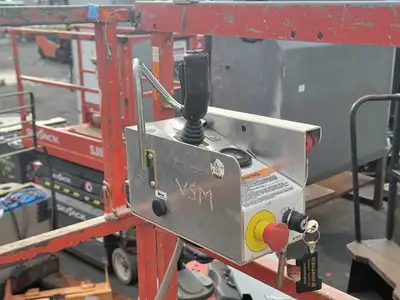

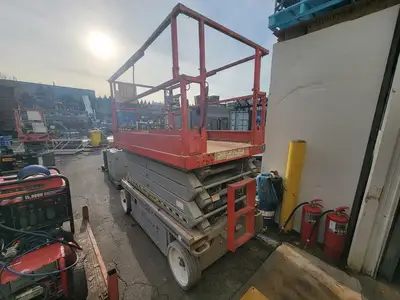

USED 2008 SKYJACK SJ3 4632

Max. Lift Capacity: 700 lb

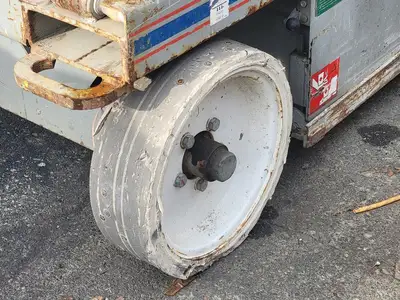

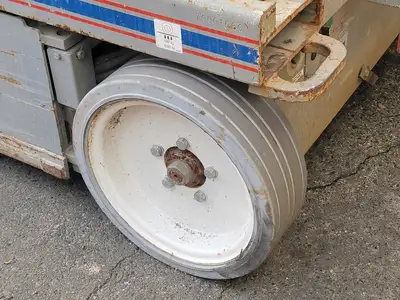

Tires: Solid Pneumatic
Fuel Type: Electric
Hours: 283

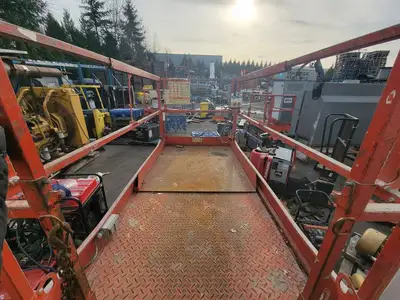

Platform Size: 42"X84"
Max. Lift Height: 38'
Product PDF
Work Height: 38 ft
Raised Platform Height: 32 ft
Lowered Platform Height: 48.5 in
Overall Width: 46 in
Overall Length: 91 in
Stowed Height (Rails Up): 88 in
Stowed Height (Rails Down): 74 in
Platform Width (Inside Dimension): 42 in
Platform Length (Inside Dimension): 84 in
Extension Deck (Roll Out): 4 ft
Ground Clearance (Stowed): 3.5 in
Ground Clearance (Raised): 0.75 in
Wheelbase: 69 in
Gradeability: 25%
Turning Radius (Inside): 47.5 in
Turning Radius (Outside): 93.5 in
Lift Time (With Rated Load): 59 sec
Drive Speed (Stowed): 2 mph (3.2 km/h)
Drive Speed (Raised): 0.7 mph (1.1km/hr)
Maximum Drive Height: Full Height
Capacity (Overall): 700 lbs (318 kg)
Maximum # of Persons: 2
