Housing: 65 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035)
Lens: Polycarbonate, ribbed inside orange, red, clear, blue, green or yellow
Type of mounting: any
Panel size: 22x1,25 mm (M22) and 30.5 mm (with adapter), mounting depth 34 mm
Cable entry: pre-wired at customer's request
Connection technology: Screw/plug-in terminal 2,5 mm2
Leakage current: 0,003 A (PLC-suitable)

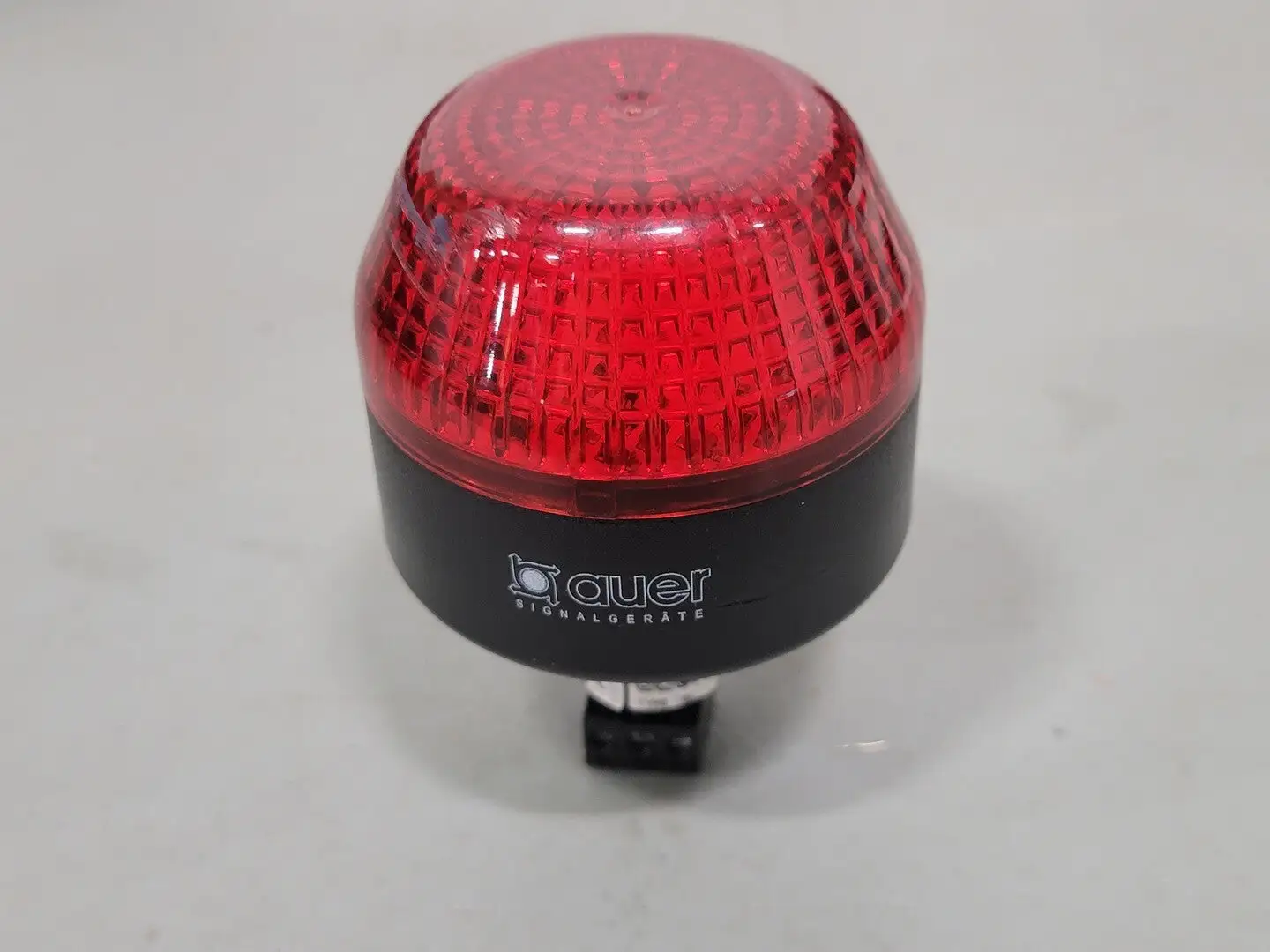

Beacon type: LED steady beacon or LED flashing beacon
Light source:12 LEDs Strobe/flash frequency 2 Hz
Duty cycle: 100 %
Service life: Light source: 100.000 h
Operating temperature: -25°C/+60°C
Degree of protection: IP65 & UL Type 4/4x/13
