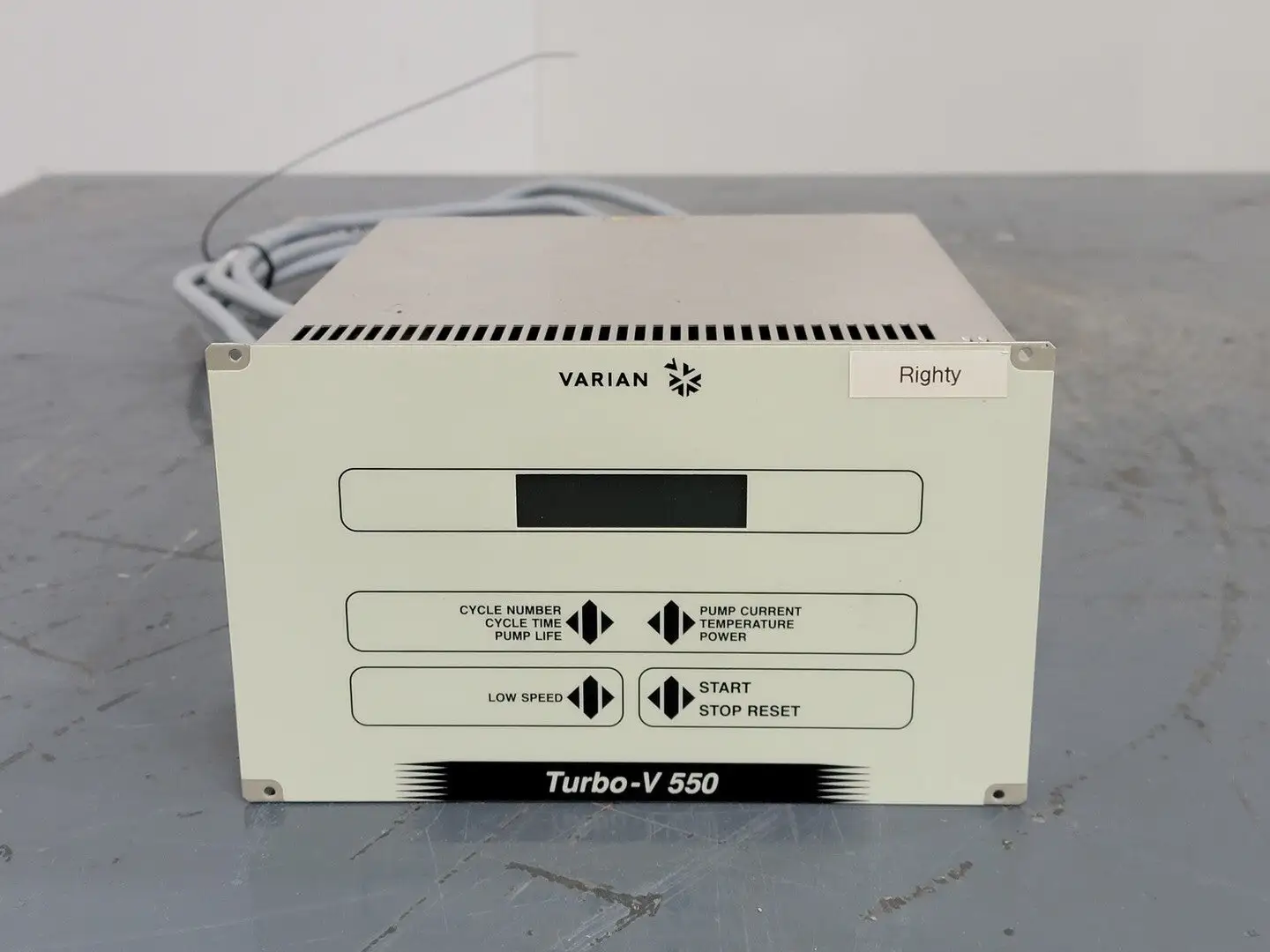

USED VARIAN 9699444

Input:-
Voltage: 100,120, 220, 240 Vac +/-10%, 1-phase
Frequency: 47 to 63 Hz
Power: 600 VA maximum
Output:-
Voltage: 54 Vac nominal +/-10%
Frequency: 700 Hz +/-2%
Power: 420 W maximum
Water Cooling: 320 W
Air Cooling: 220 W
Operating Temperature: 0 to 40 deg. C
Storage Temperature: -20 deg to 70 deg. C
Fuse (mains):-
2 x T4A (slow blow) for 220 or 240 input voltage
2 x T8A (slow blow) for 100 or 120 input voltage
P1 optoisolator input: Minimum ON 3mA, Maximum 5mA
J2 optoisolator output: 24 Vdc, 60mA
J6 output (fan): 120 Vac, 1A disregarding the mains
J7 output (forepump coil, etc.): 120 Vac, 1A disregarding the mains
Radio Interference Suppression: EN 55011 class A group 1; EN 61010-1; IECI000-4-2, 1000-4-3,1000-4-4

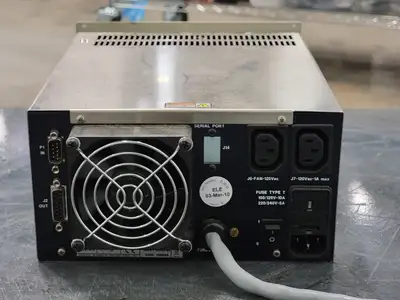

Auxiliary Connectors:-
P1: External INPUT signals (pins)
J2: OUTPUT signals (sockets)
J6: Output fan voltage
J7: Valve, forepump socket
J14: RS 232/422/485 connection (optional)
Interconnecting Cables: Main Cable (3-wire, 3-meter long), Pump Cable (6-wire, 5-meter long)
