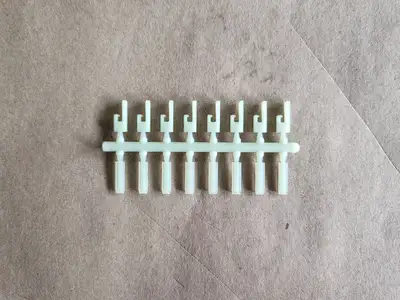

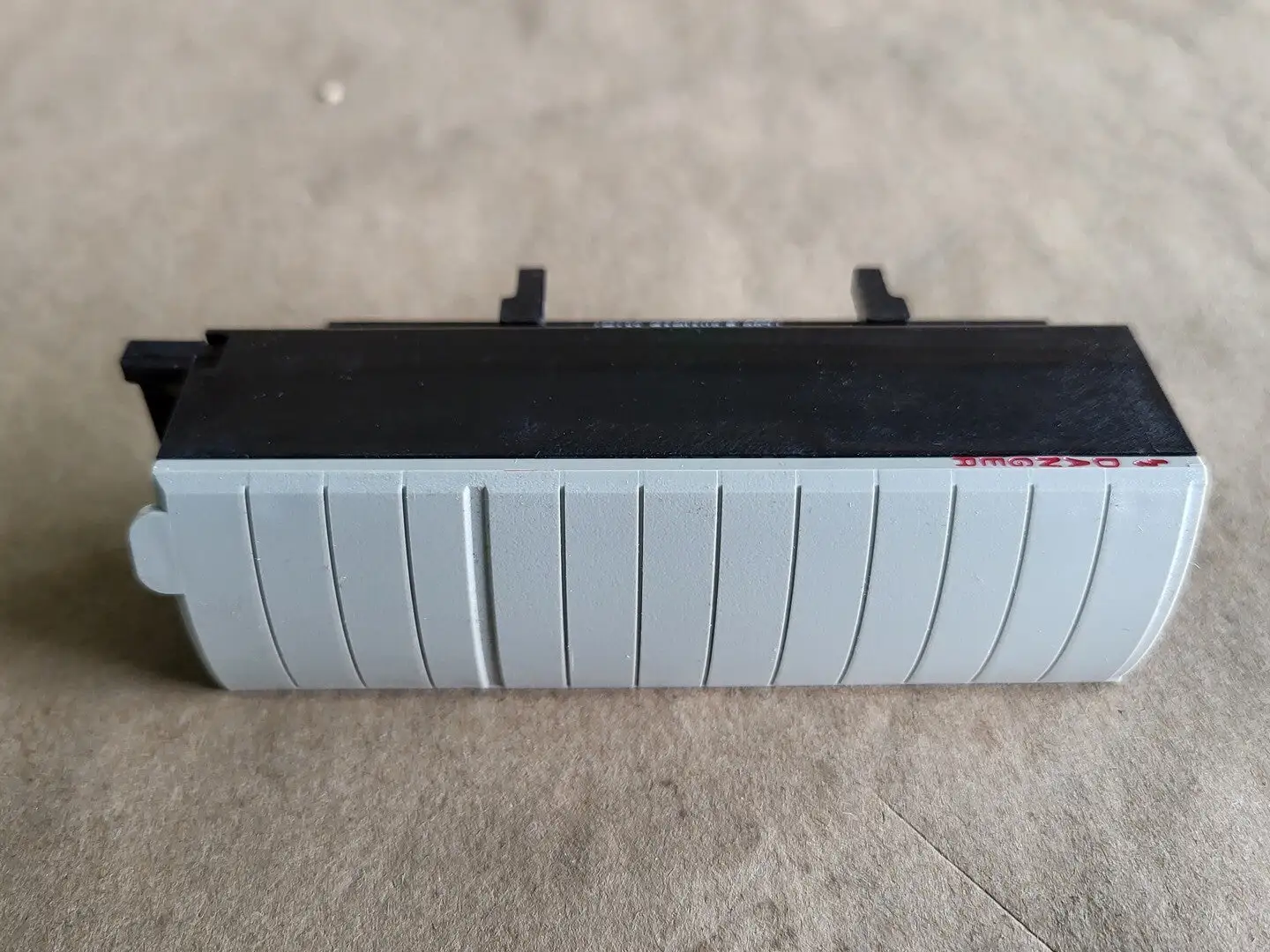

NEW ALLEN-BRADLEY 1756-TBNH

Series: ControlLogix
Module Type: Terminal Block
Clamp Type: Screw-Clamp
No. of Pins: 20
Screw Torque: 1.36 Nm
Single Wire Connection: 0.33 to 2.1 mm. sq.
Double Wire Connection: 0.33 to 1.3 mm. sq.
Wire Type: Solid or Standard
Max. Wire Insulation: 90 deg. celsius or greater, 1.2 mm (3.64 in.)
Operating Temperature: 32-140 fahrenheit
Backplane Current (5 Volts): 1,200 milliamps
Backplane Current (24 Volts): 2.5 milliamps
Power Dissipation: 6.19 Watts
Wire Size: 20 AWG
Housing Style: Standard
Removable: Yes
