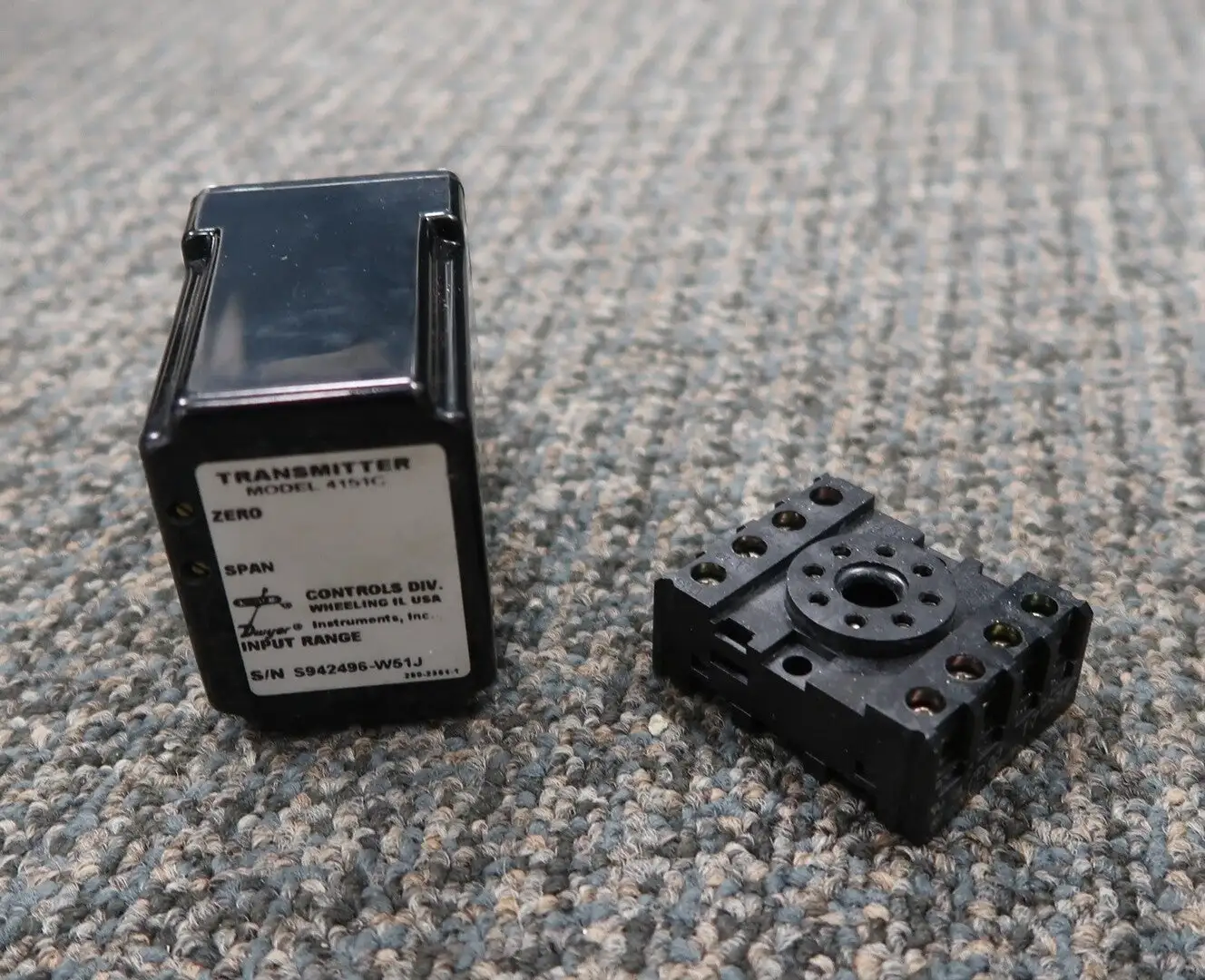

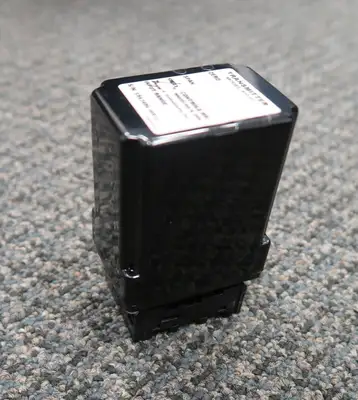

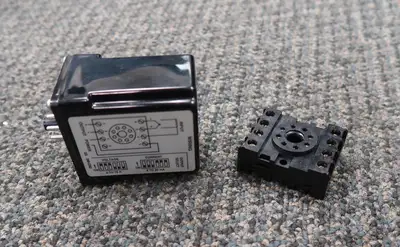

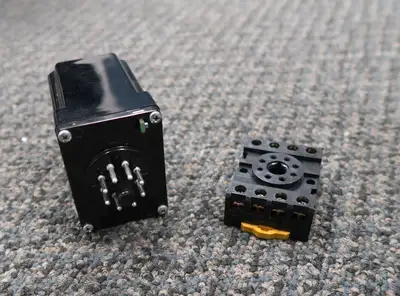

USED LOVE/DWYER 4151C

Isolation: 1500 VAC RMS
Linearity: 0.1% of full scale
Drift: +/-0.02% per deg. C typical, +/-0.05% per deg. C maximum
Power Supply: SC: 85 to 265 VDC/VAC 50 to 400 Hz
Output Loads: Current: 600 ohms maximum; Voltage: 500 ohms minimum (20 mA maximum)
Input Characteristics: RTD search current < 500 uA
Case Size: 60.3 mm W x 87.3 mm H x 44.4 mm D
Mounting: Mounts on industry standard 35 mm DIN Rail
Ambient Operating Temperature: 32 to 131 deg. F (0 to 55 deg. C)
