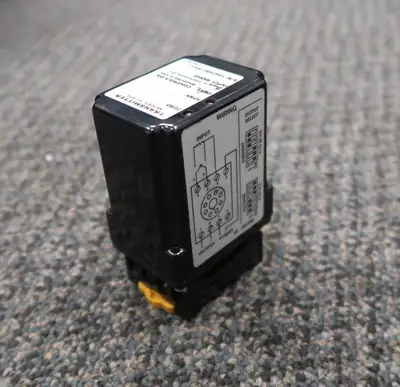

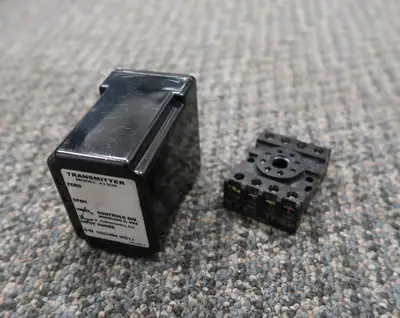

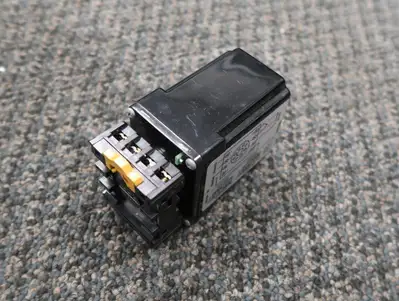

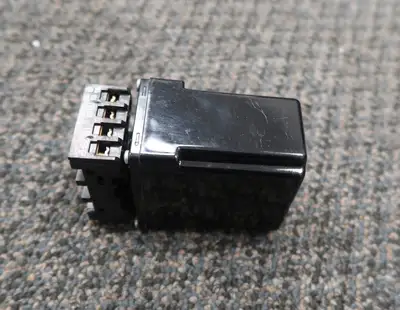

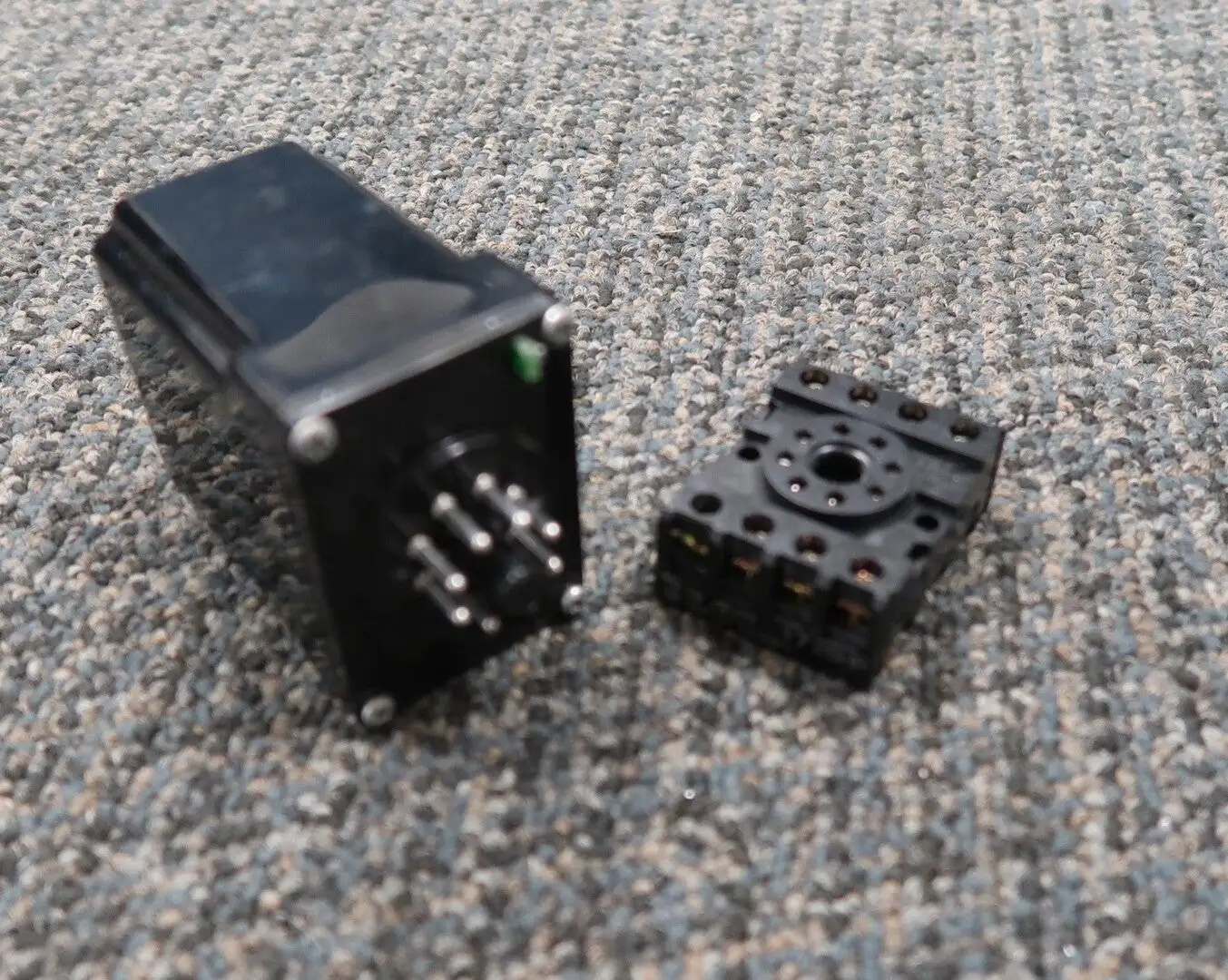

USED LOVE/DWYER 4130R

USD $45.86
1 available
Overview
Manufacturer:
LOVE/DWYER
Model:
4130R
Stock #:
12364
Specifications

Isolation: 1500 VAC RMS
Linearity:0.1% of full scale
Drift: +/-0.02% per deg. C typical, +/-0.05% per deg. C maximum
Ambient Operating Temperature: 32 to 131 deg. F (0 to 55 deg. C)
Power Supply: 85-256 VDC/VAC, 50-400 Hz
Output Loads: Current: 600 ohms maximum; Voltage: 500 ohms minimum, 20 mA maximum
Input Characteristics: Thermocouple: 3 megaohms impedance
Case Size: 60.3mm W x 87.3mm H x 44.4mm D
