NEW EMERSON KJ1501X1-BC2

Type: DC
Output Capacity: 24 Volts
Voltage: 24 volts
P/N: 12P2186X042

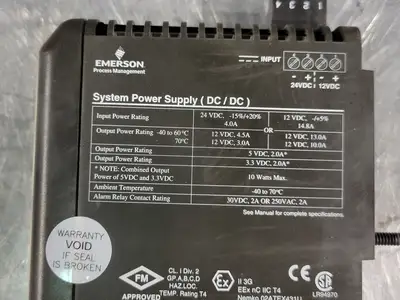

Input Power Rating: 24 VDC at 4.0 A or 12 VDC at 14.8 A
Output Power: 10 W total at 70° C (combined outputs of 5 VDC and 3.3 VDC)
Output Rating:
12 VDC at 13 A max to 60° C or
12 VDC at 10 A max to 70° C (12 VDC input)
12 VDC at 4.5 A max to 60° C or
12 VDC at 3 A max to 70° C (24 VDC input)
5 VDC at 2.0 A
3.3 VDC at 2.0 A
Ambient Temperature: -40 to 70° C
Alarm Relay Contact Rating: 30 VDC, 2A, or 250 VAC, 2A
Shock: 10g 1/2 Sinewave for 11 msec
Vibration: 1 mm Peak to Peak from 2 to 13.2 Hz; 0.7g from 13.2 to 150 Hz
Airborne Contaminants: ISA-S71.04-1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing
