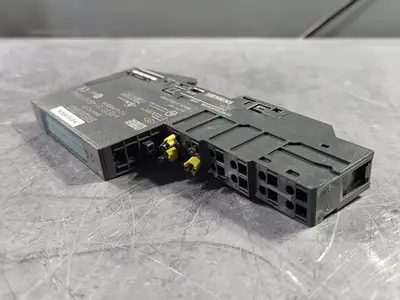

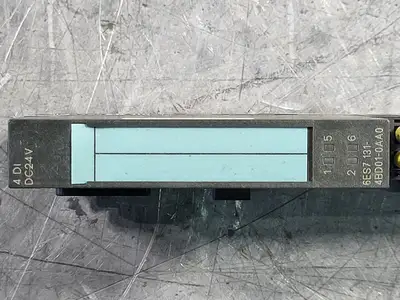

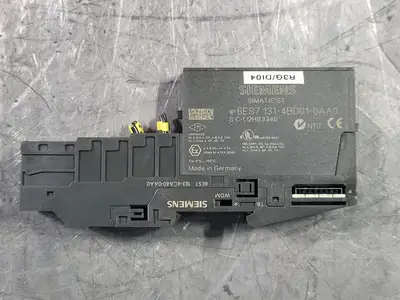

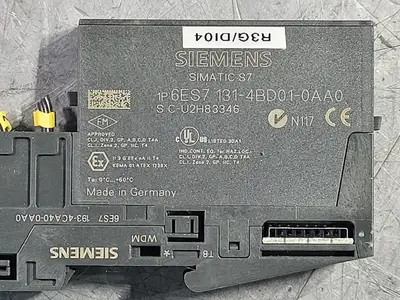

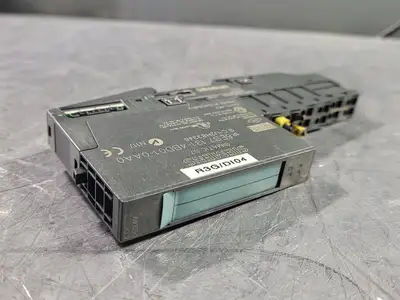

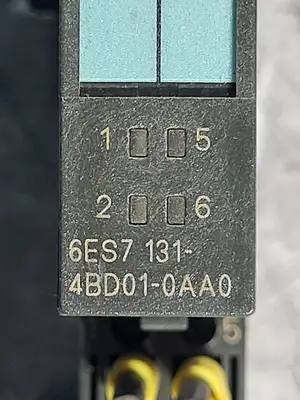

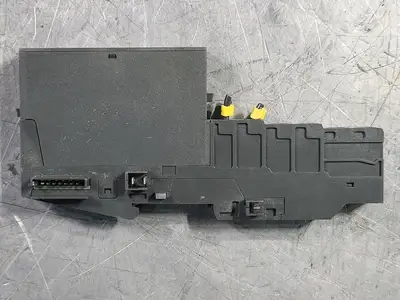

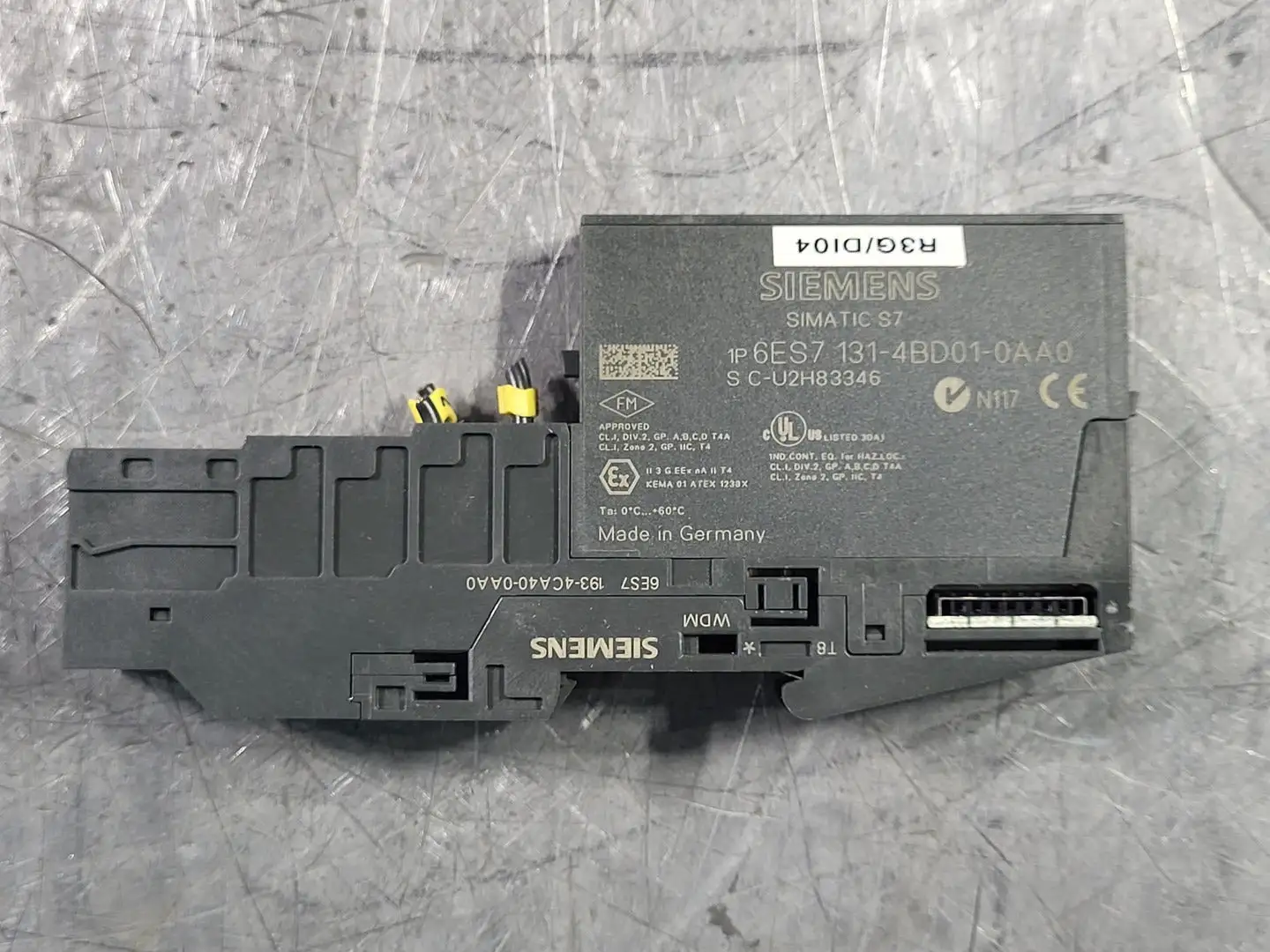

USED SIEMENS 6ES7 131-4BD01-0AA0

Supply Voltage
Rated Value (DC): 24 V; From Power Module
Reverse Polarity Protection: Yes
Input Current
From Supply Voltage L+, Max.: Dependent On Encoder
From Backplane Bus 3.3 V DC, Max.: 10 mA
Output Current
Rated Value: 500 mA
Permissible Range, Lower Limit: 0 mA
Permissible Range, Upper Limit: 500 mA
Digital Inputs
Number Of Digital Inputs: 4
Input Characteristic Curve In Accordance With IEC 61131, Type 1: Yes
Input Voltage
Type Of Input Voltage: DC
Rated Value (DC): 24 V
For Signal "0" -30 To +5 V
For Signal "1" +15 To +30 V
Input Current
For Signal "1", Typ. 7 mA; At 24 V
Input Delay (For Rated Value Of Input Voltage)
For Standard Inputs:
  Parameterizable: No
  At "0" To "1", Min. 2 ms; Typically 3 ms
At "0" To "1", Max. 4.5 ms
  At "1" To "0", Min. 2 ms; Typically 3 ms
  At "1" To "0", Max. 4.5 ms
