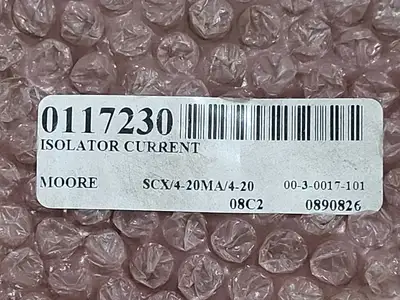

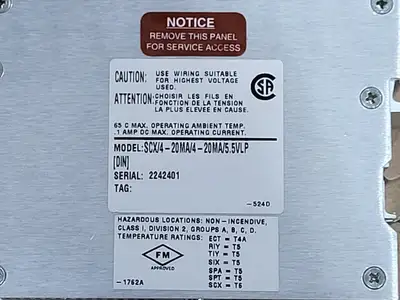

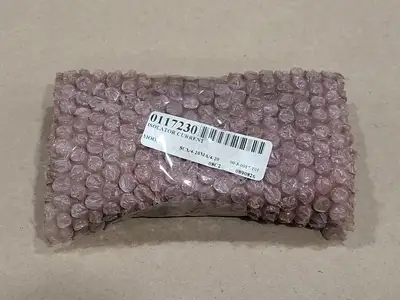

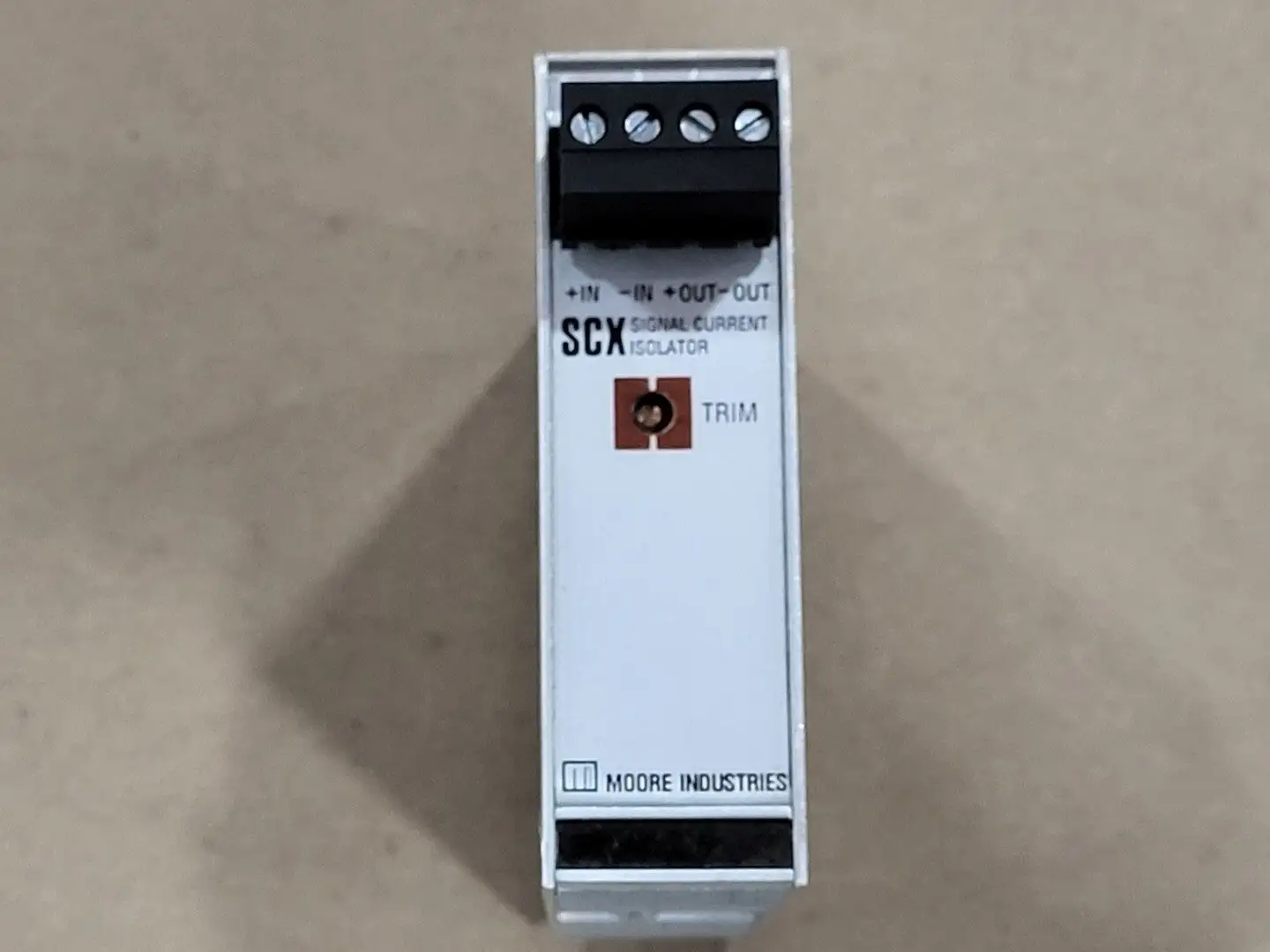

NEW MOORE INDUSTRIES SCX/4-20MA/4-20MA/5.5VLP

Calibration: -/+ 0.075% of span
Isolation: Input and Output are transformer isolated (500 Vrms) with no dc connections between them
Burden: 5.5V when outputs are shorted for 4-20 mA inputs, 10.5V with 250 ohms load
Output Tracking: Assuming 4-20 mA input and 4-20 mA output; the isolator output will follow the input below 3 mA when the input fails
Ambient Temperature Rating: -29 deg. C to 82 deg. C (-20 deg. F to 180 deg. F)
Effect: -/+0.018% /deg. C (-/+0.01%/ deg. F) per degree zero change; -/+0.005% per degree gain change
Adjustments:-
Type: External multiturn potentiometer
Trim: Adjusts output span -/+1%
