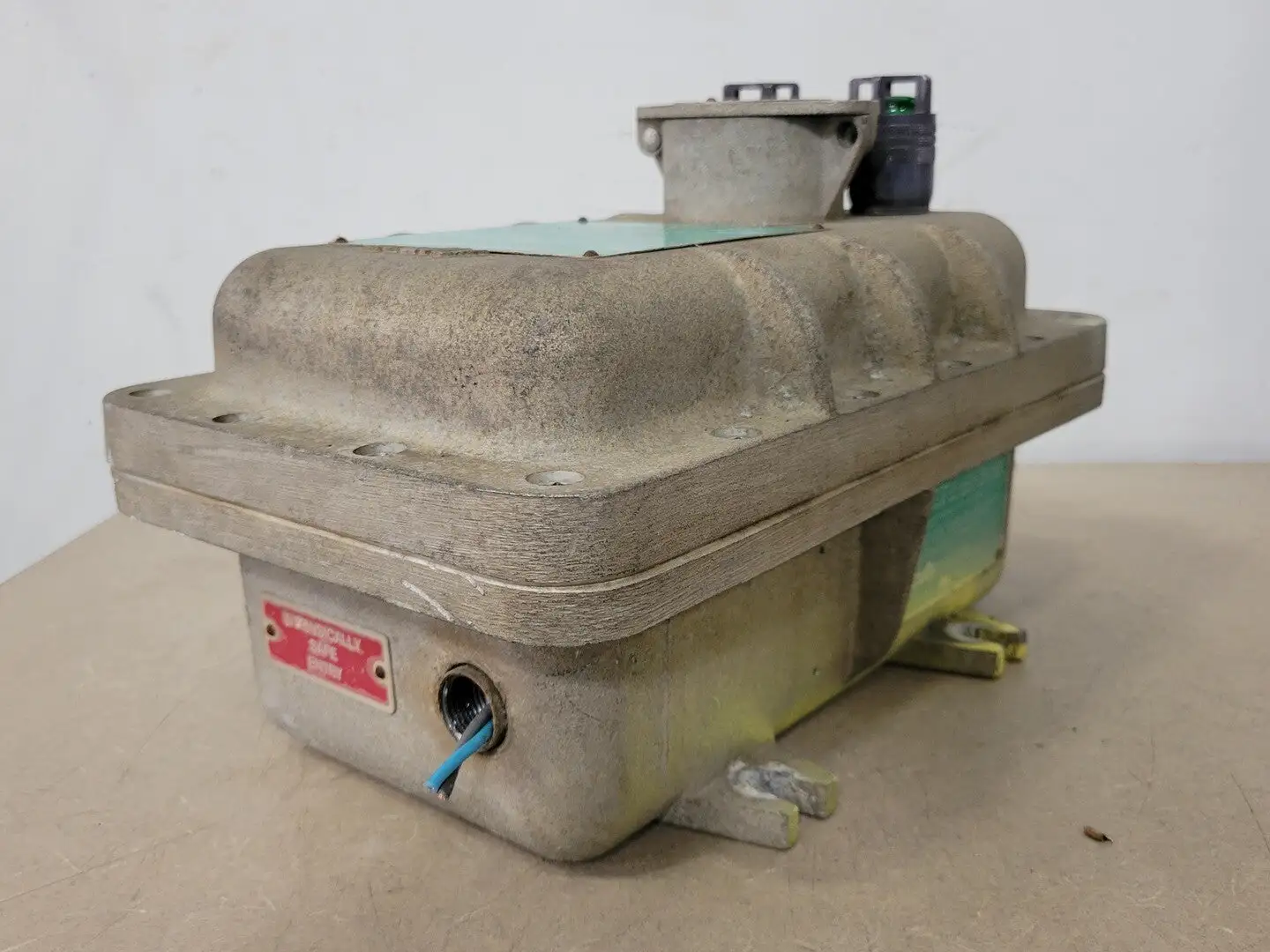

USED SCULLY ST-47-ELK

Operation Temperature: -40° to +140° F (-40° to +60° C)
Indicators: Red-not grounded/non-permit; Green-grounded/permit
Response Time: 0.5 seconds maximum
Electrical Connections: Internal terminal strips, identified for easy installation
Bypass Switch: Key lockable off-on bypass switch for ELK model only
Output Control: One normally open user contact rated 250, 5A resistive load
Power Requirements: 105-125 VAC, 50/60 Hz. 0.250 Amperes maximum

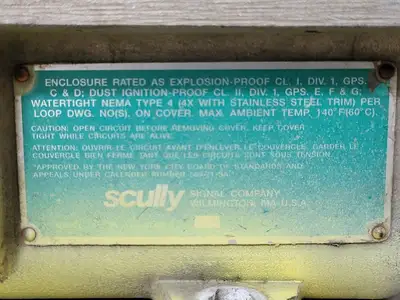

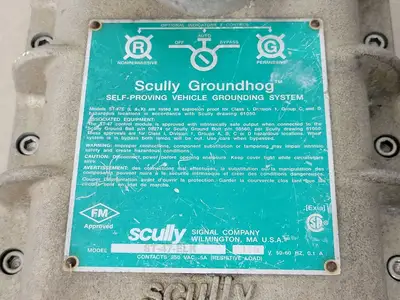

Approvals: Explosion-proof with intrinsically safe ground connection outputs. Rated for Class I, Division 1, Groups C & D Hazardous Locations, by FM Global (FM) to Canadian
and United States standards.
