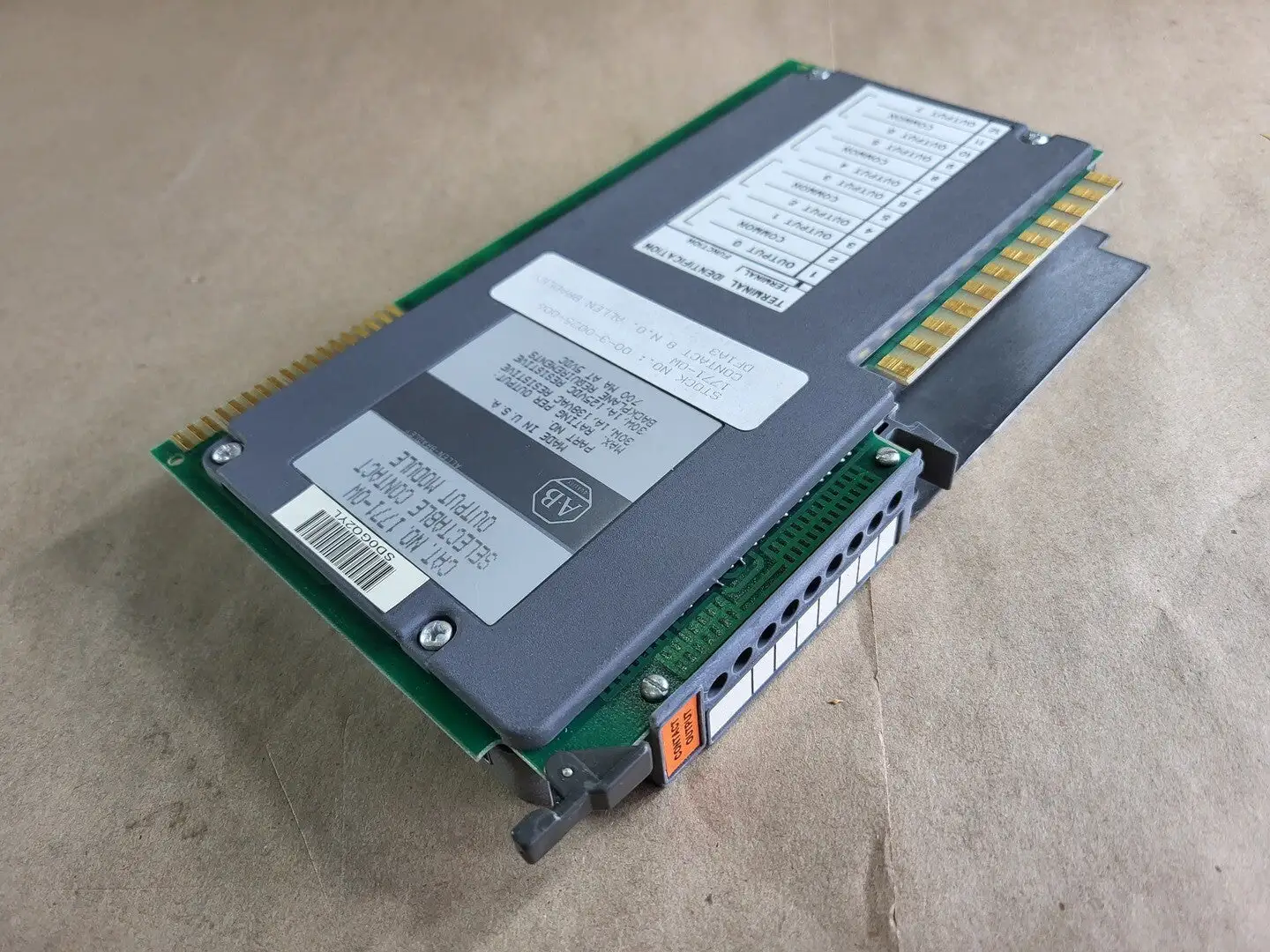

NEW ALLEN-BRADLEY 1771-OW

Thermal Dissipation: 11.3-12.7 BTU/hr
Power Dissipation: 3.3-3.7 Watts
Minimum contact Load: AC: 10mA @ 24V DC: 10mA @ 24V
Output current rating per channel: 1.0 A
Operating Voltage Range: 24 - 138VAC RMS; 24 -125VDC
No. of Inputs: Eight (8) relay channels
Contact Output Type: 8 Selectable
DC Operating Voltage: 24-235 Volts
Backplane Current: 700 Miliamperes
Max Continuous Current Per Module: 0.25 Amperes (at 120 Volts AC/DC) or 1 Ampere (at 30 Volts AC/DC) (30 Watts Max)
