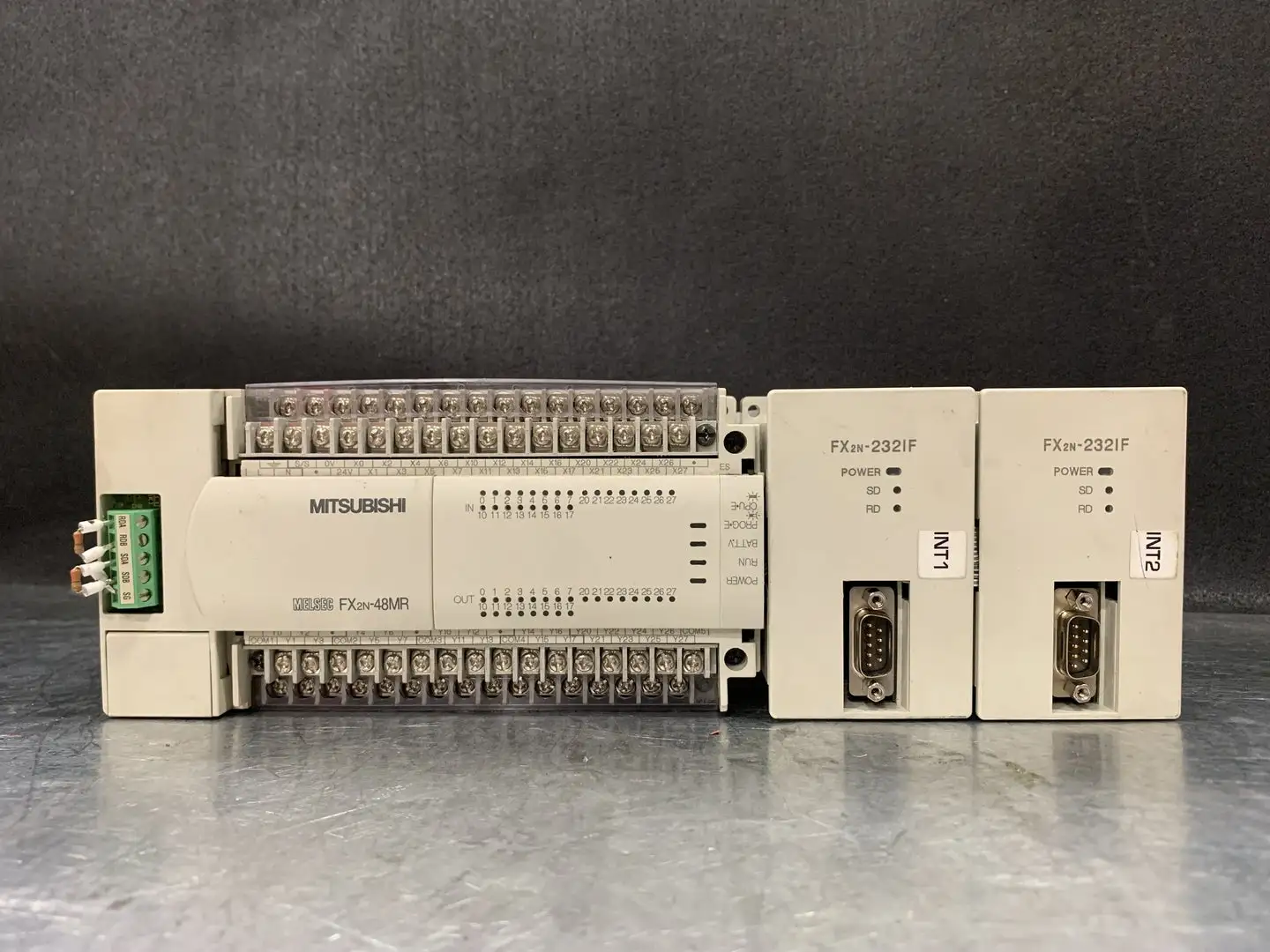

NEW MITSUBISHI FX2N-48MR

Series: FX2N (part of the FX family, known for compact and modular design)
I/O Points: 48 points total
Inputs: 24
Outputs: 24
Type: Main Unit
Power Supply: 100-240 VAC
Programming: Uses Mitsubishi GX Developer or GX Works software
Expansion: Supports additional modules for analog, communication, and special functions
Memory: Larger program capacity compared to FX1N series
Speed: Faster processing than FX1N, suitable for mid-range automation tasks
2 x Communication Interface Module (FX2N-232IF):-
Type: RS-232C
Purpose: Enables serial communication between the FX2N PLC and external device such as:
HMIs (Human Machine Interfaces)
Barcode Readers
PCs
Printers
Compatible Series: FX2N, FX1N, FX3U (with some limitations)
Communication Standard: RS-232C
Baud Rate: 300 to 19,200 bps
Connector: 9-pin D-sub
Functions Supported:-
Computer Link
Programming
Data exchanging with external devices
Mounting: Directly on the left side of the FX2N main unit
Current Consumed: 40 mA @ internal 5 VDC, 80 mA @ external 24 VDC
