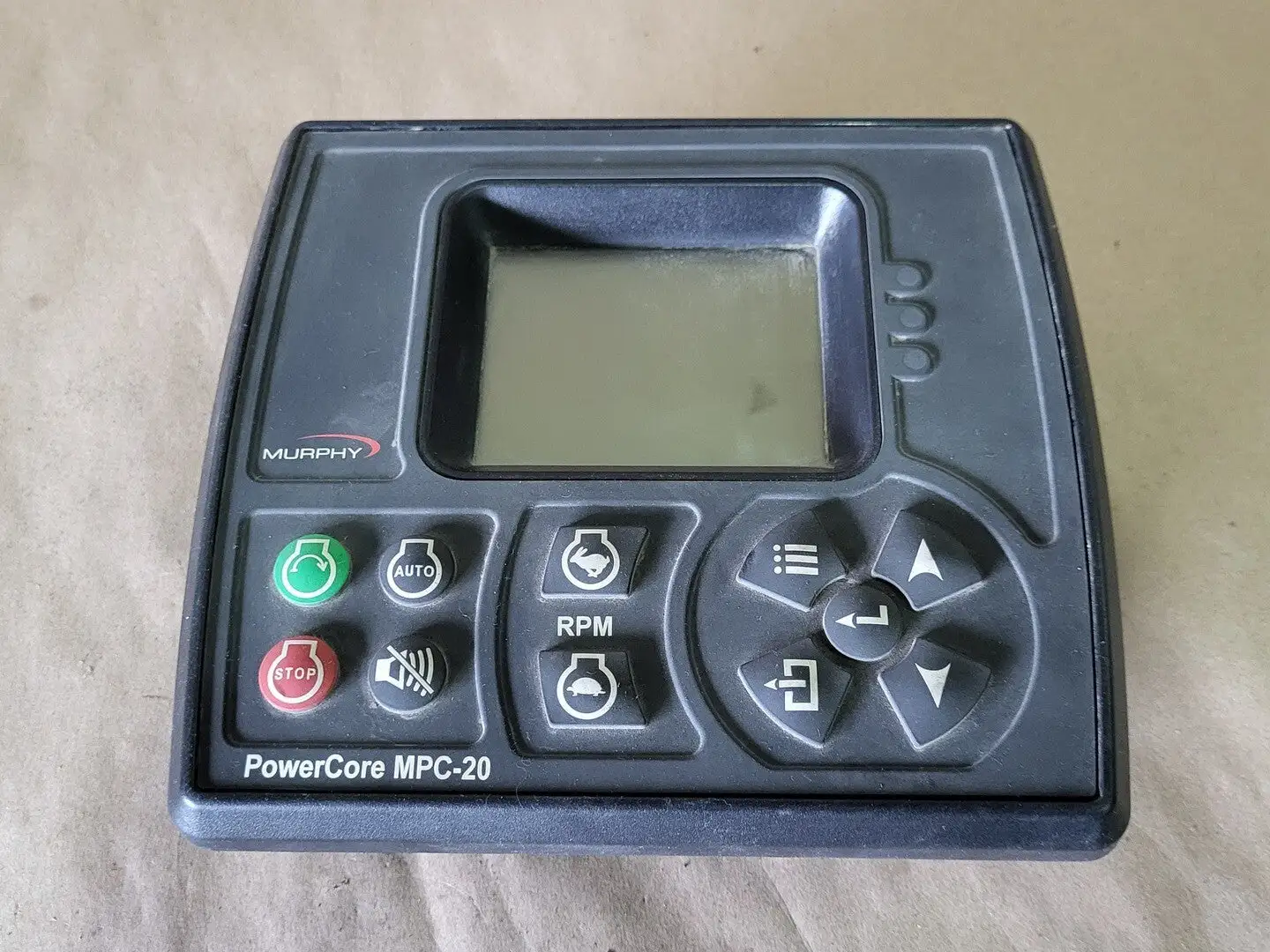

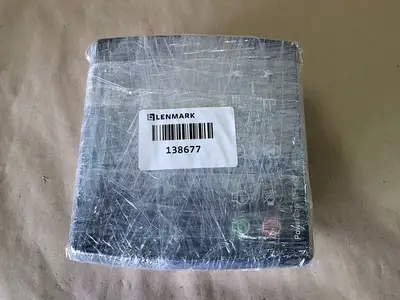

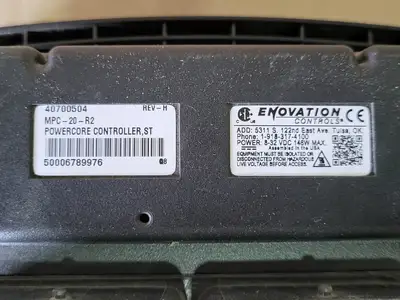

NEW MURPHY MPC-20-R2

Power Supply:
Operating Voltage: 8-32 VDC, reverse battery polarity & load dump protected
Current consumption: 18W Max without 2 2A High-sides, active, 146W Max with 2 2A High-sides active
Inputs (15):
(6) Digital, configurable (active on High, Low, Open)
(8) Analog, configurable (4-20 mA, 0-5V, resistive or digital ground)
(1) Frequency, supporting: Magnetic pickup (30 Hz - 10 kHz, 2.0 VAC-120 VAC) and Engine Alternator (30 Hz - 10 kHz, 4.5 VRMS - 90 VRMS)
 Outputs (13):
(6) Relay, Form C (dry / volt-free), 10A
(2) Low-side FET (-DC), 1A
(2) High-side FET (+DC), 2A
(2) +5VDC, 200mA
(1) 0-5VDC Analog
Communications:
(1) CAN: J1939
(1) RS485: Modbus RTU
(1) USB: Programming
Mating Connector: Delphi, SICMA 90 Position
