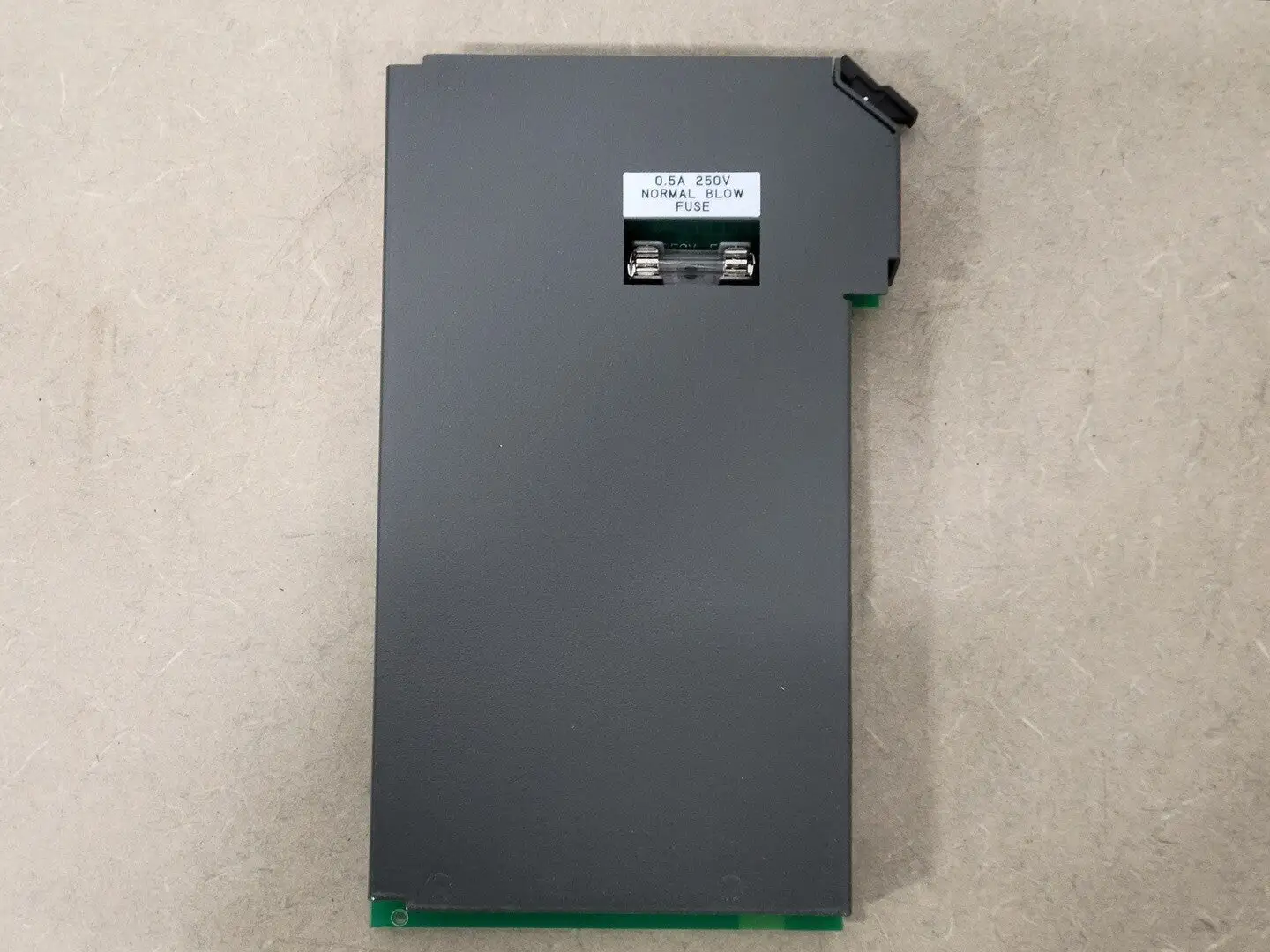

NEW ALLEN-BRADLEY 1771-IGD/A

Series: A
Part Number: 96042278 A01
Operating Temperature: 32 to 131 degrees fahrenheit
Power Dissipation: 2.7 Watts (max.); 0.4 Watts (min.)
Signal Delay: Less than 1ms
Compatible I/O Chassis: 1771-AM1 / 1771-AM2 Chassis
Compatible 1771 Chassis: Series A or B 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, 1771-A4B
Signal Voltage Rating: Positive Logic: On = 2.0 - 5.25 VDC; Off = -0.2 to 0.8 VDC Negative Logic: On = -0.2 to 0.8 VDC; Off = -2.0 - 5.25 VDC
Logic State: Positive and negative Logic ( selectable)
Module Type: TTL Input Module
Mounting: Rack Mounting
Number of Inputs: 16
Backplane Current: 0.50 A @ 5 VDC
Wiring Arm: 1771-WH
Voltage Category: 5 Volts DC, TTL
DC Operating Voltage: 5.0 - 5.3 Volts
Typical DC Signal Delay (On): < 1 ms
Typical DC Signal Delay (Off): < 1 ms
Typical AC Signal Delay (Off): 24 (+/-10) ms
Typical DC Signal Delay (Off): 20 (+/-9) ms
