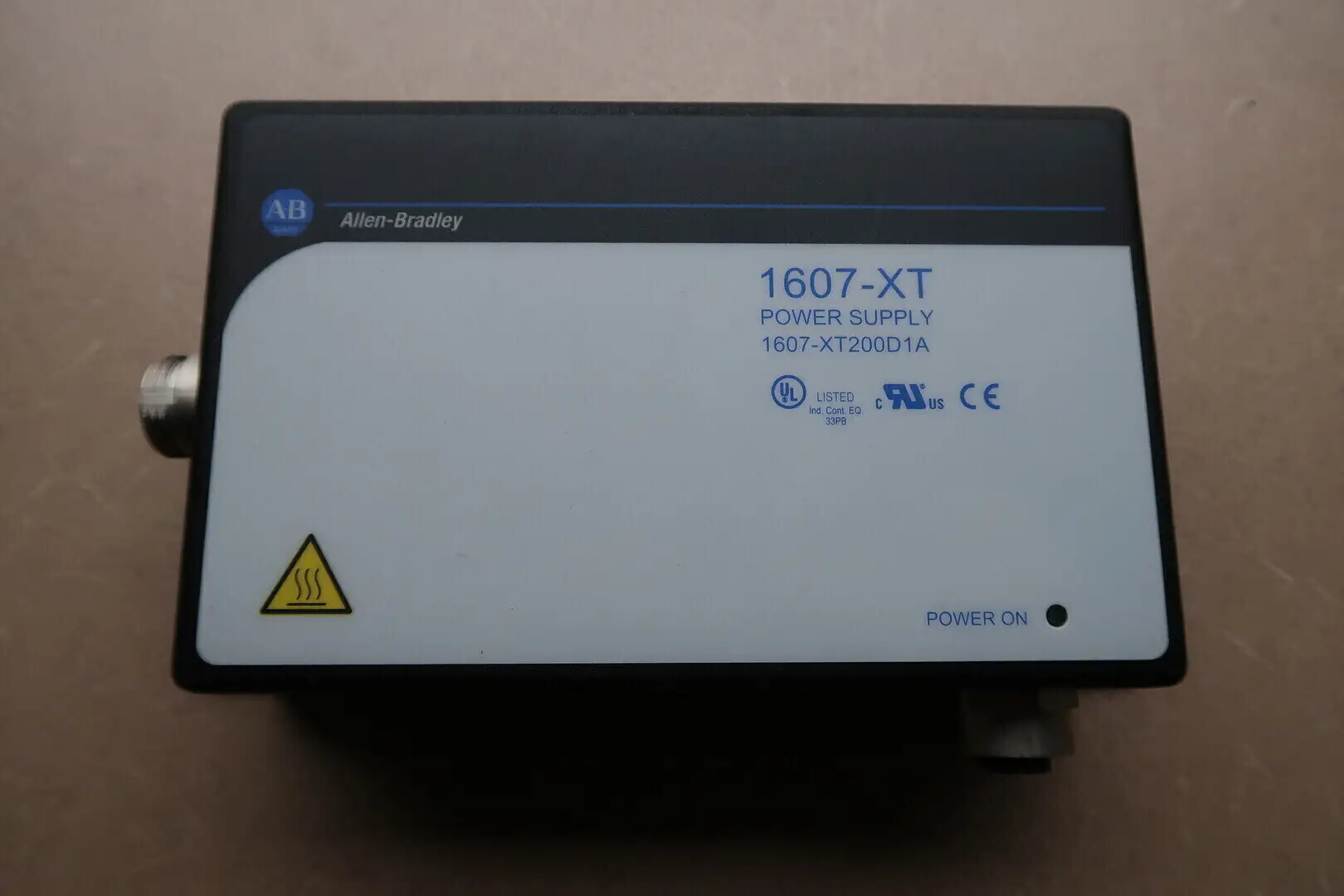

NEW ALLEN-BRADLEY 1607-XT200D1AÂ

Type: DC
Output Capacity: 24 Volts
Voltage: 240 volts
Frequency: 50-60 Hz
Output Power: 192 W (288 W with Power Boost)
Input Voltage: 100-240V AC, 100-300V DC
Operational Voltage Range: 90-264V AC, 100-300V DC
Power Factor Correction: >0.98 active
Hold-up Time: 50 ms
Rated Input Current: 2.4A (115V AC), 1.2A (230V AC); Imax 2.5A
Inrush Current: <25A
Efficiency: >82%, 120V AC; >85%, 230V AC
Output Voltage: 24V (+1%)
Rated Output Current: 8 A
Reserve Power: 12 A
Ripple Voltage: <240 mVpp bandwidth, 1MHz
Noise: <480 mVpp bandwidth, 20 MHz
Overcurrent Protection: 12.1-15.6 A (8.4-10.4 A after 4s Power Boost times out)
AC Power Light-emitting Diode (LED): Yes
Ambient Operating Temperature Range: -25 to +65 deg. F (-13 to +140 deg. F), derate 2.0%/K, 50 to 60 deg. C (122 to 140 deg. F)
Non-Operating (Storage) Temperature Range: -40 to +85 deg. C (-40 to +185 deg. F)
Humidity: Up to 100% with condensation
MTBF: >500,000 hours
Ingress Protection: IP67
Mounting Recommendations: Panel that is mounted with vertically oriented heatsinks. Clearance of 150 mm (5.9 in.) above power supply, 50 mm (1.97 in.) on all other surfaces.
