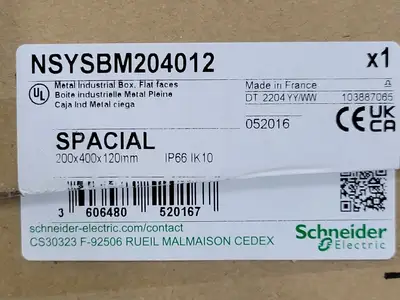

USED SCHNEIDER ELECTRIC NSYSBM204012

Range: Spacial
Product Name: Spacial SBM
Device Application: Multi-purpose
Category: Industrial box
Device Short Name: SBM
Enclosure Type: Flat face box
Enclosure Nominal Height: 200 mm
Enclosure Nominal Width: 400 mm
Enclosure Nominal Depth: 120 mm
Enclosure Mounting: Wall mounted

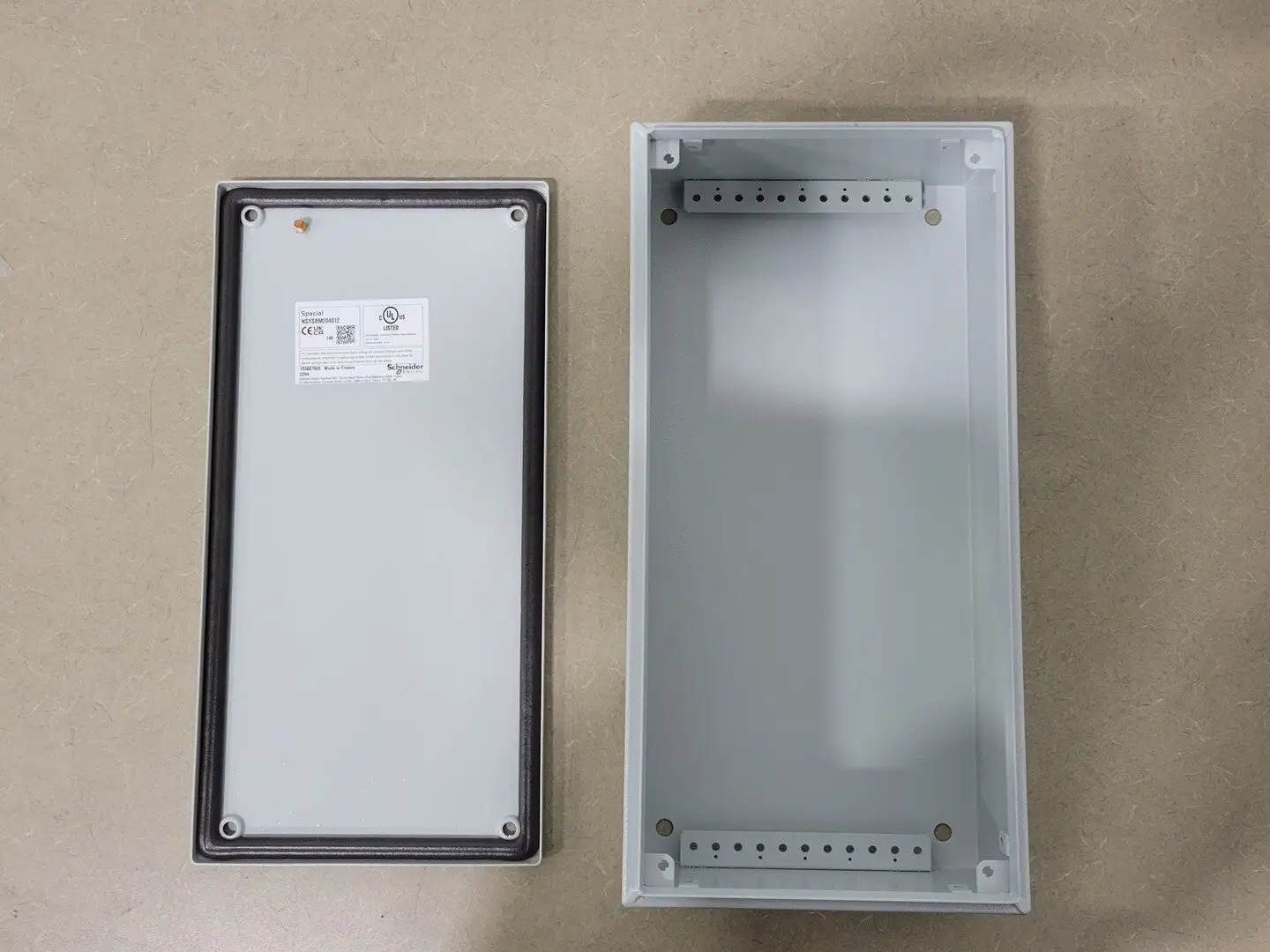

Device Composition: 4 cover screw / 1 cover / 1 body
Body Type: Single piece body folded and welded
Type Of Front Cover: Plain door
Cover Fixing: Half turn metal screw
Lock Type: Captive screw PZ2 outside sealed area
Removable Parts: Cover by captive screws
