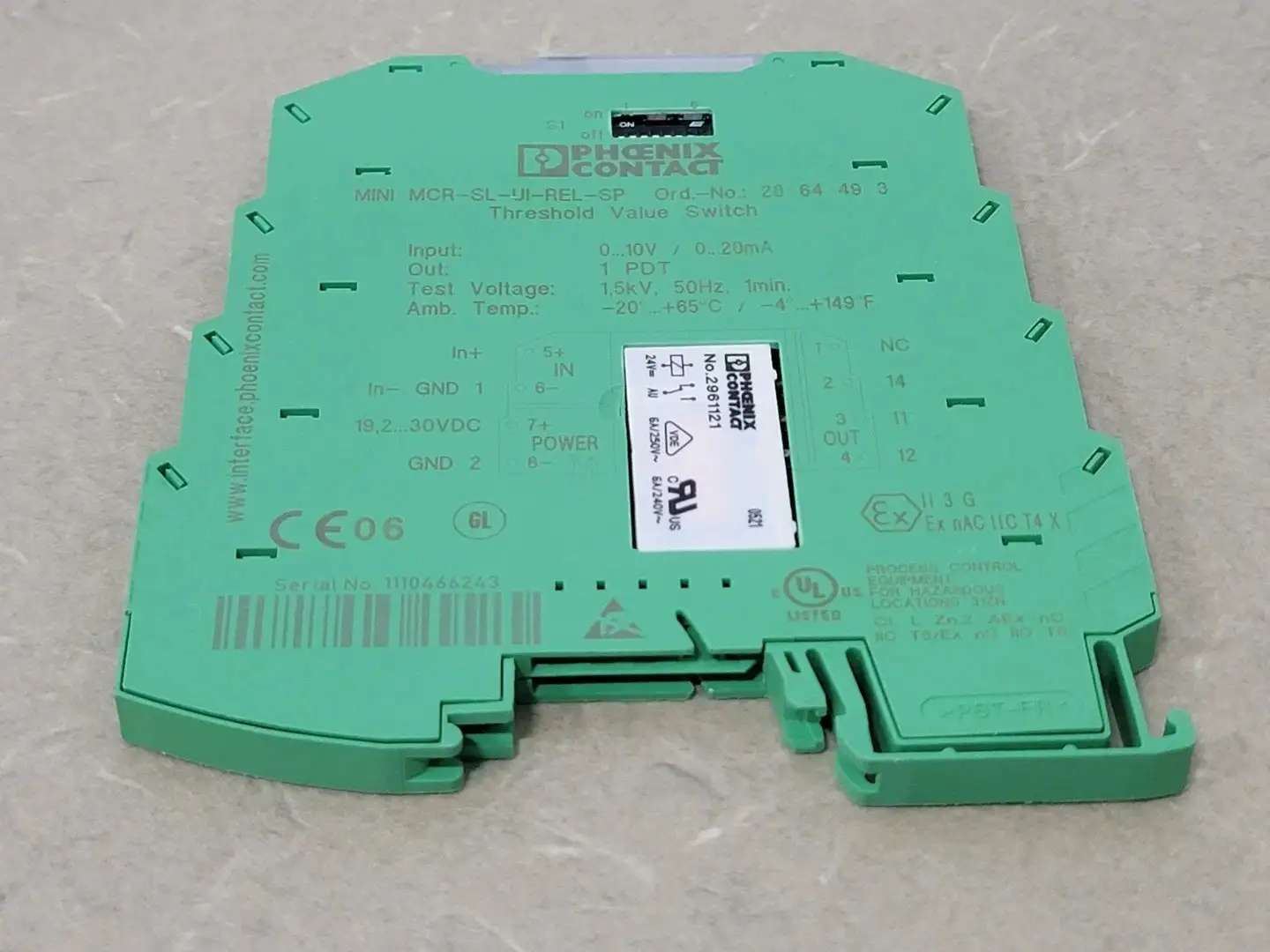

USED PHOENIX CONTACT 2864493

Product type: Limit value switch
Product family: MINI Analog
No. of channels: 1
Rated insulation voltage: 50 V AC/DC
Electrical isolation between input and output: yes
Test voltage input/power supply: 1.5 kV AC (50 Hz, 60 s)
Switching point accuracy: < 0.05 %
Step response: (0-99%) < 35 ms
Maximum temperature coefficient: < 0.02 %/K
Nominal supply voltage: 24 V DC
Supply voltage range: 19.2 V DC - 30 V DC
Max. current consumption: < 14 mA (at 24 V DC)
Power consumption: < 330 mW (at 24 V DC)
