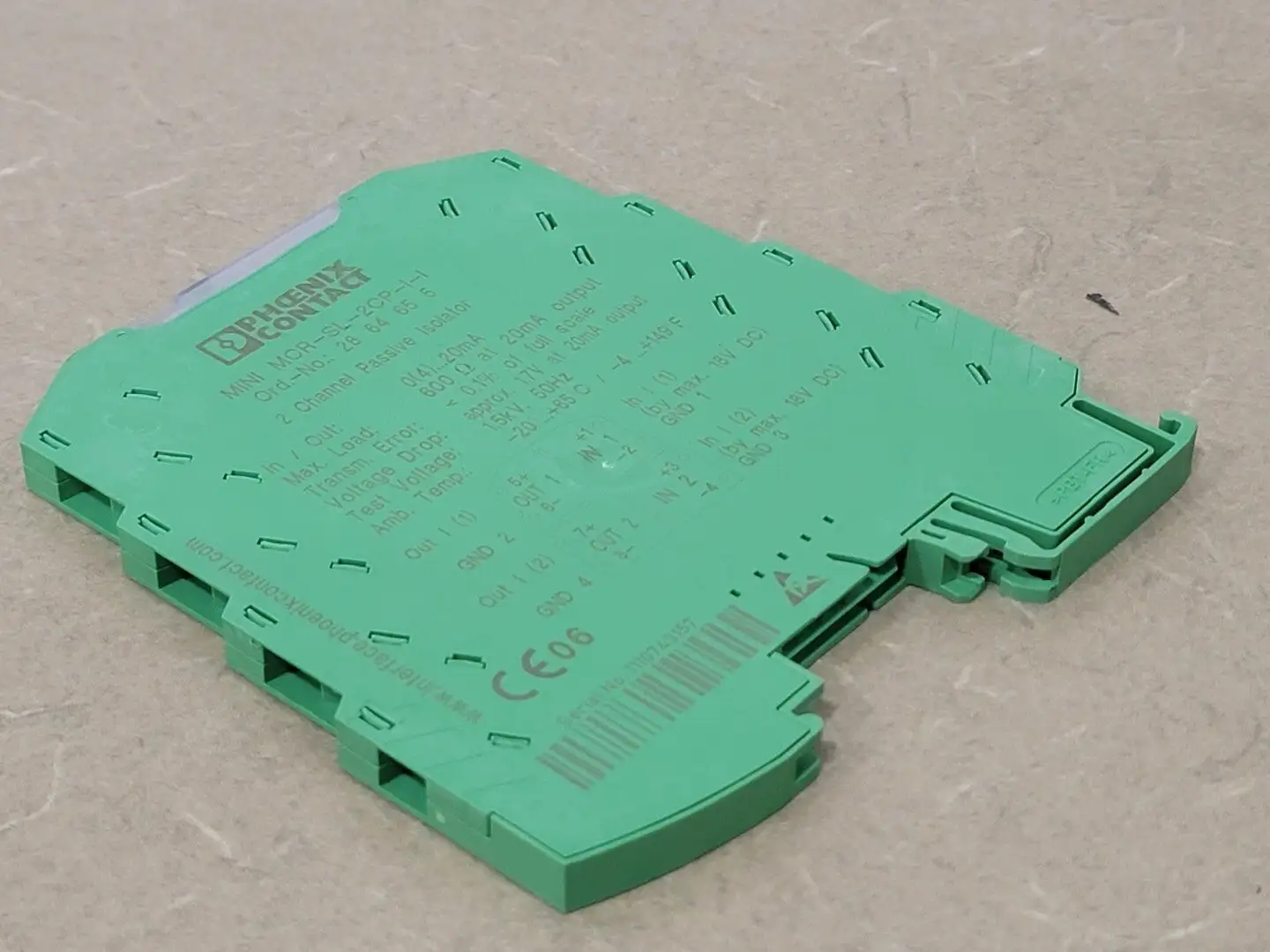

USED PHOENIX CONTACT 2864655

No. of channels: 2
Electrical isolation: 2-way isolation
Electrical isolation between input and output: yes
Limit frequency (3 dB): 75 Hz
Maximum power dissipation for nominal condition: 64 mW
Signal transmission behavior: In = Out
Step response (10-90%): 5 ms (at 600 ohm load)
Maximum temperature coefficient: 0.002 % / K (of measured value / 100 ohm load)
Temperature coefficient, typical: < 0.002 % / K (of measured value / 100 ohm load)
Maximum transmission error: 0.1 % (of final value)
Additional error, load-dependent: < 0.03 % (of measured value / 100 ohm load)
Electrical isolation: Input/output
Rated insulation voltage: 50 V AC/DC
Test voltage: 1.5 kV AC (50 Hz, 60 s)
Supply voltage range: loop-powered, no external supply necessary
Power consumption: 34 mW (per channel)
