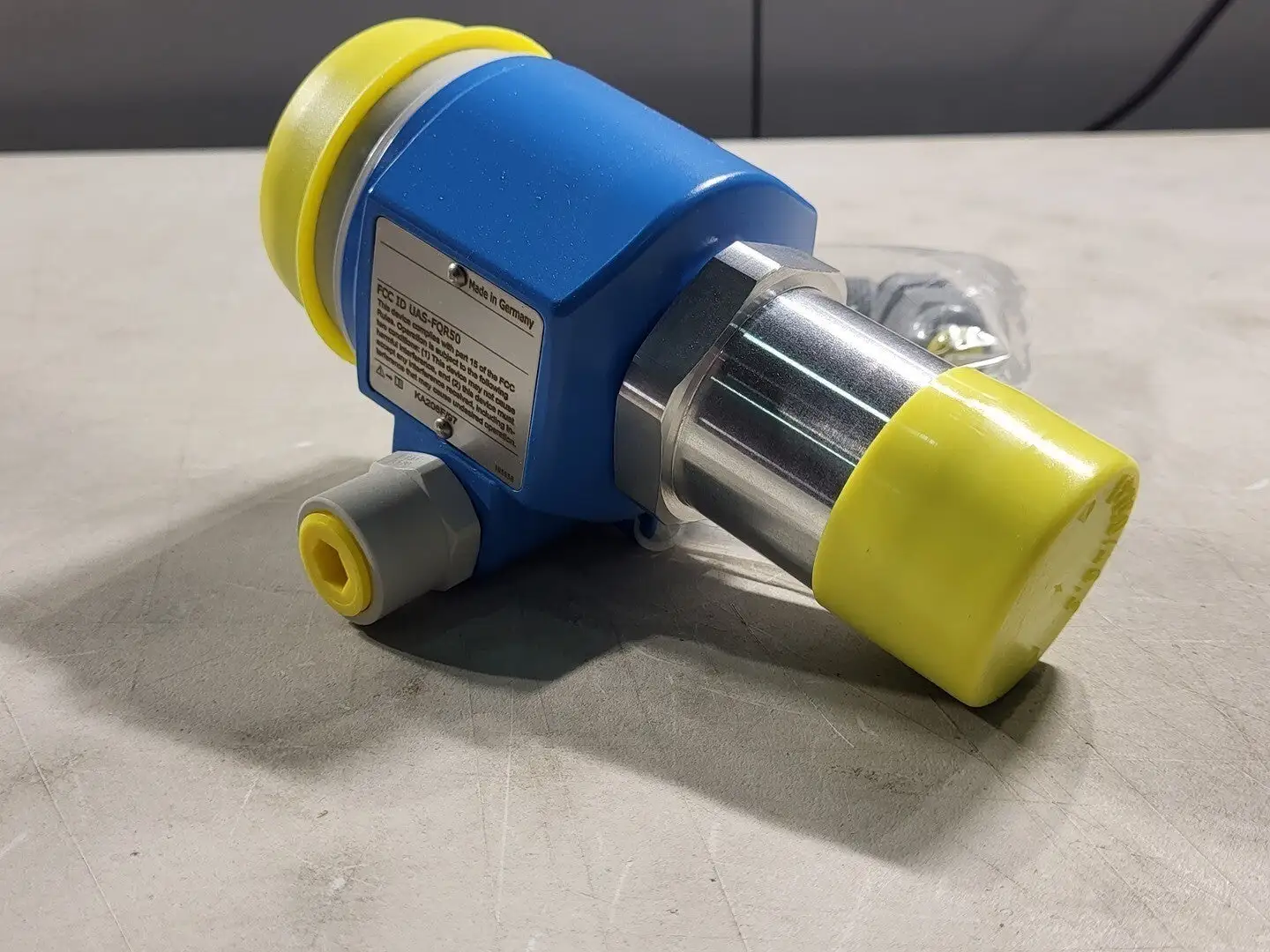

NEW ENDRESS+HAUSER FQR50-A1NFA

Characteristic / Application: Contactless measurement / Microwave transmitter
Supply / Communication: Transmitter
Ambient temperature: -20 °C ... 70 °C (-4°F ... 158°F)
Process temperature
Waves emitted from outside (non-contact): any
Waves emitted within installation (contact): -20 °C ... 70 °C (-4°F ... 158 °F)
Process pressure / max. overpressure limit
Waves emitted from outside (contactless): any
Waves emitted within installation (contact): 0.8 bar abs ... 4.8 bar abs (12 psi ... 70 psi)
Min. density of medium: Solid weight: > 10 g/l
Main wetted parts
Within installation: Aluminium, PTFE
Or: non-contact
Process connection: 1-1/2" G + NPT or with waves emitted from outside / mounting from outside, walls of container must not be made of metal
Process connection hygienic: With waves emitted from outside
Communication: Transmitter: Relays, DPDT
Certificates / Approvals: ATEX, IEC Ex
Options: Flange
Components
Reciever: FDR50
Transmitter: FTR325
Successor: Soliwave FQR57
Application limits: When waves are emitted from outside (non-contact)
Solid weight: <10g/l
