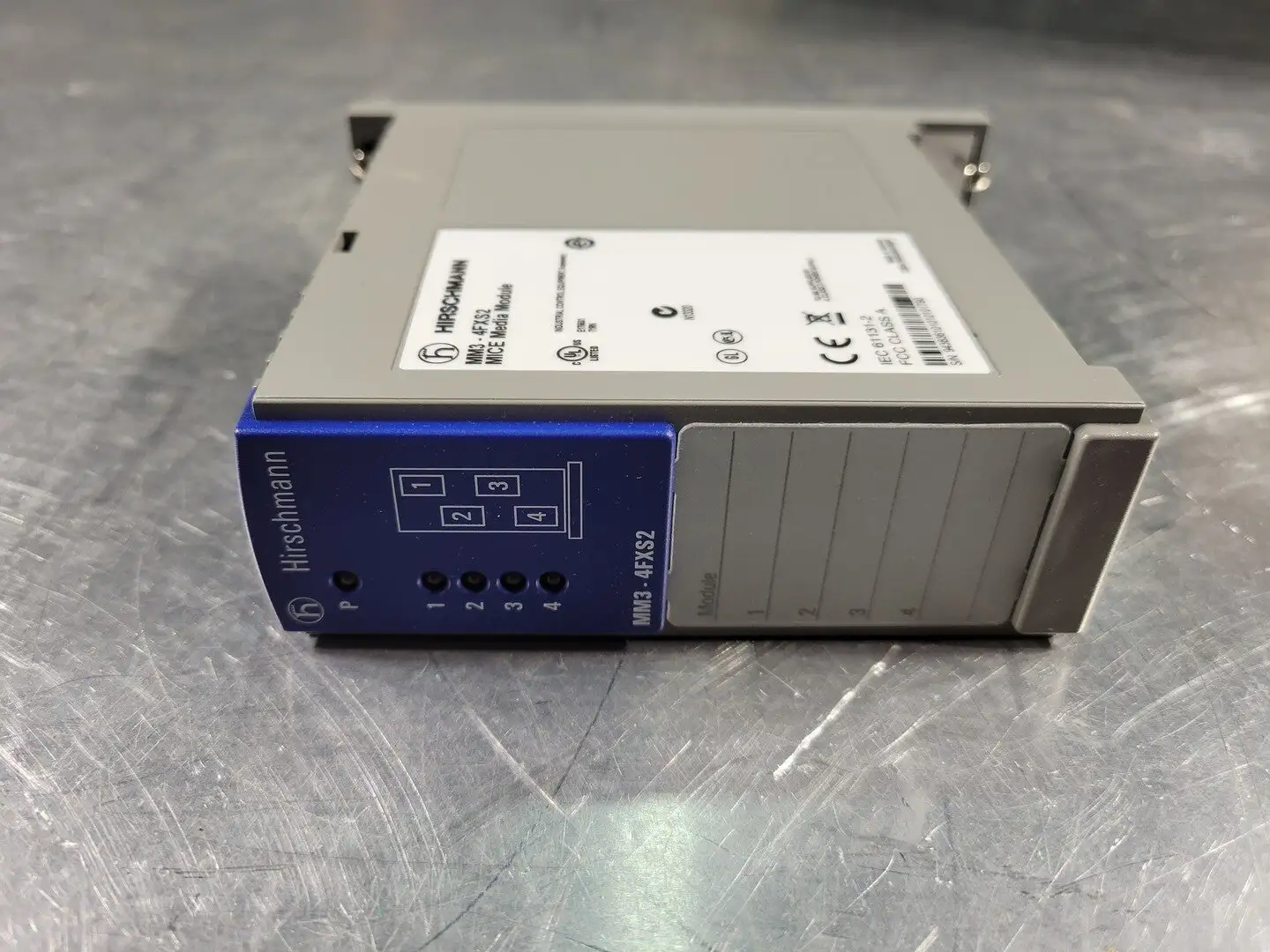

NEW HIRSCMANN MM3-4FXS2

Part Number: 943 836-101
Port Type and Quantity: 4 x 100BASE-FX, SM Cables, SC Sockets
Network Size- Length of Cable:-
Single Mode Fiber (SM) 9/125 um: 0-32.5 km, 16 dB link budget at 1300nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps (nm x km)
Power Requirements:-
Operating Voltage: Power supply via the backplane of the MICE switch
Power Consumption: 6.8 W
Power Output in BTU (IT)/h: 23.2 Btu (IT)/h
Software:-
Diagnostics: LEDs (power, link status, data, 100 Mbit/s, auto-negotiation, full-duplex, ring port, LED test)
Ambient Conditions:-
MTBF (MIL-HDBK 217F:Gb 25 deg. C): 59.5 years
Operating Temperature: 0 -+60 deg. C
Storage/Transport Temperature: - 40 to 70 deg. C
Relative Humidity (Non-Condensing): 10-95%
Mounting: Backplane
Protection Class: IP 20
