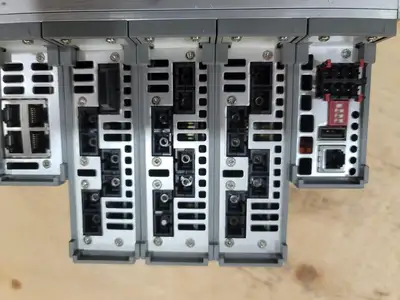

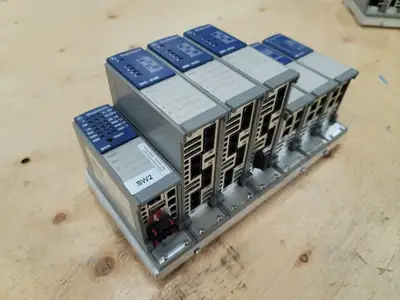

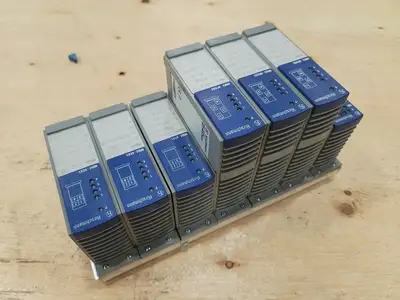

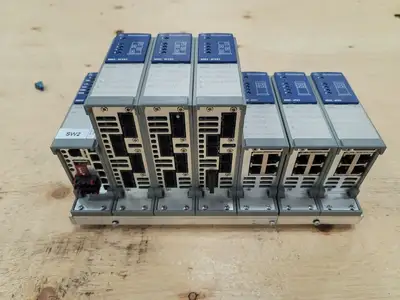

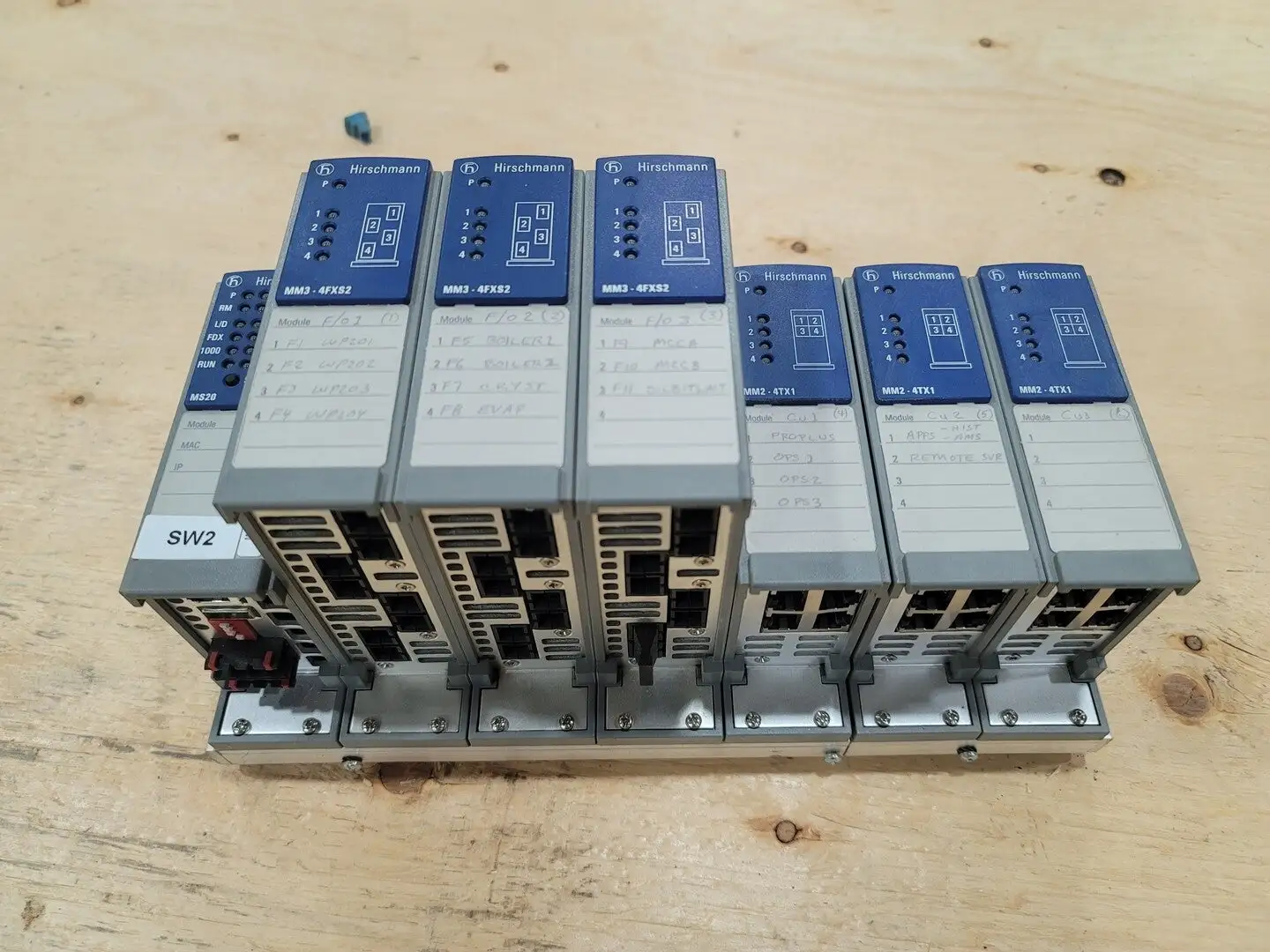

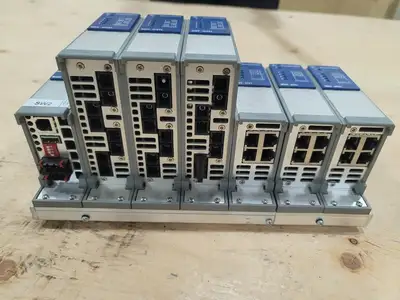

USED HIRSCHMANN MS20-1600SAAEHH02.0.02

Voltage: 120/240 volts
Phase: Single-phase
Type: MS20
Protocol Type: 10/100/100 Mbit/s
Port Type and Quantity: Fast Ethernet ports in total-16
Interfaces:-
V.24 Interface: 1 x RJ11 socket
USB Interface: 1 x USB to connect auto-configuration adapter ACA21-USB
Signaling Contact: 2 x plug-in terminal block 4-pin
Network Size- cascadibility:-
Line/ Star topology: Any
Ring Structure (HIPPER-Ring) quantity switches: 50 (reconfiguration time 0.3sec)
Power Requirements:-
Current Consumption @ 24 VDC: 500 mA
Operating Voltage: 18-32 VDC
Power Consumption: 12.0 W
Power Output in BTU (IT)/h: 40.0
Software Level: Enhanced:- HIPPER-RING, remote access, diagnosis, filters, redundancy
Ambient Conditions:-
Operating Temperature: 0 deg. C to 60 deg. C
Storage/ Transport Temperature: -40 deg. C to 70 deg. C
Relative Humidity (non-condensing): 10-95%
Backplane Extension:
Make: Hirschmann
Model: MB-2T
Port Type and Quantity: 2 slots integrated on backplane (8 ports possible via media modules)
Operating Temperature: 0 deg. C to 60 deg. C (optional -40 deg. C to 70 deg. C)
Mounting: DIN Rail 35 mm

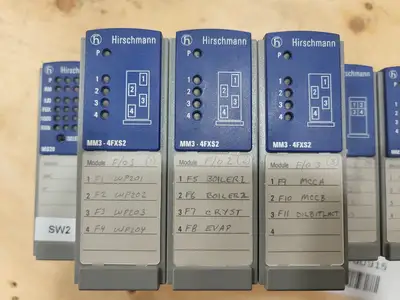

MICE Media Module 1:
Model: MM3-4FXS2
Make: Hirschmann
Port Type and Quantity: 4 x 100BASE-FX, SM cables, SC sockets
Single Mode Fiber (SM) 9/125 um: 0-32.5 km, 16 dB link budget @ 1300 nm, A = 0.4dB/km, 3dB reserve, D=3.5 ps/(nm x km)
Operating Voltage: power supply via the backplane of the MICE switch
Power Consumption: 6.8 W
Power Output in BTU (IT)/h: 23.2 BTU (IT)/h
Software: LEDs (power, link status data, 100 Mbit/s, auto-negotiation, full duplex, ring port, LED test)
Operating Temperature: 0 deg . C to 60 deg. C
Mounting: Backplane
MICE Media Module 2:
Make: Hirschmann
Model: MM2-4TX1
Port Type and Quantity: 4 x 10/100BASE-TX, TP Cable, RJ45 sockets, auto-crossing, auto negotiation, auto-polarity
Radio Technology: Twisted Pair (TP): 0-100
Operating Voltage: power supply via the backplane of the MICE switch
Power Consumption: 0.8 W
Power Output in BTU (IT)/h: 2.8 BTU (IT)/h
Software: LEDs (power, link status data, 100 Mbit/s, auto-negotiation, full duplex, ring port, LED test)
Operating Temperature: 0 deg . C to 60 deg. C
Mounting: Backplane
