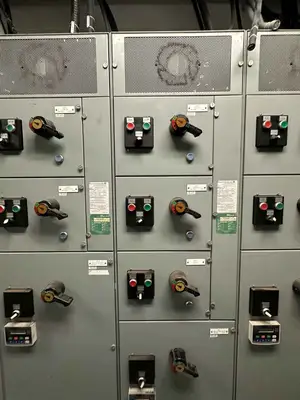

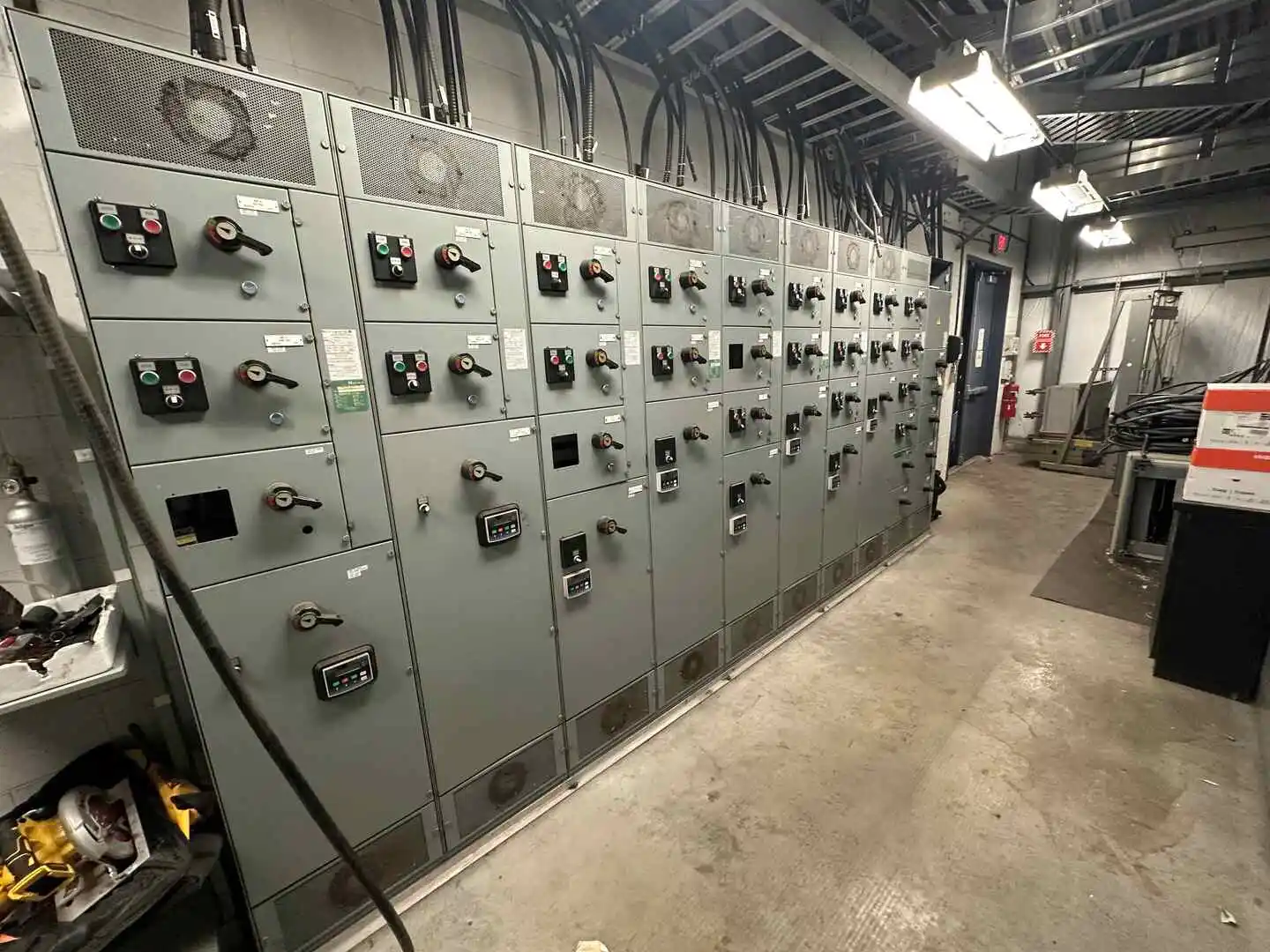

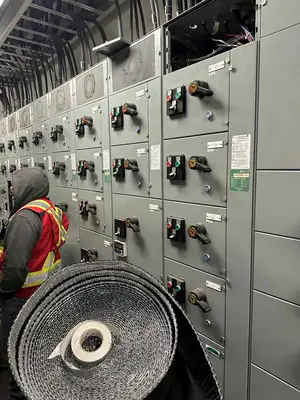

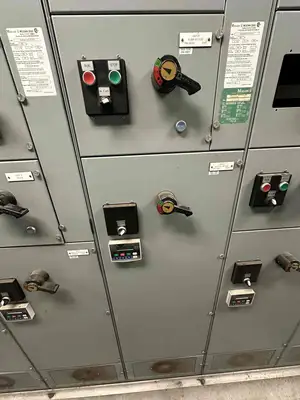

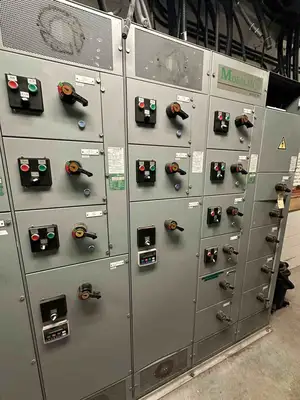

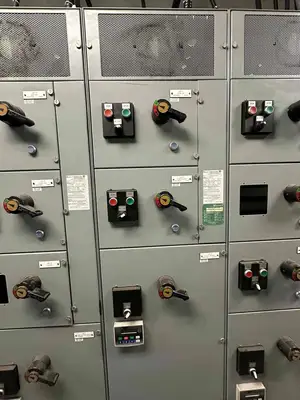

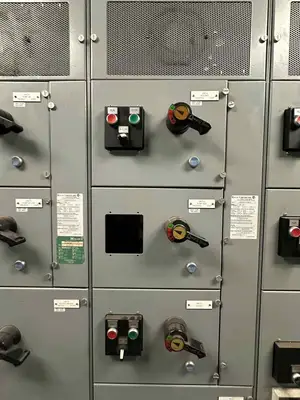

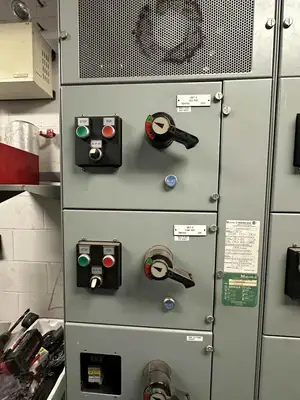

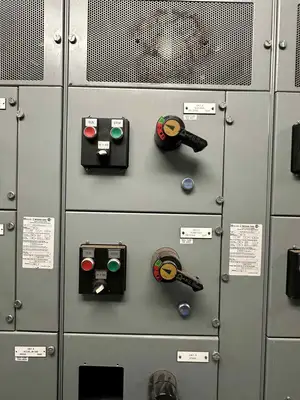

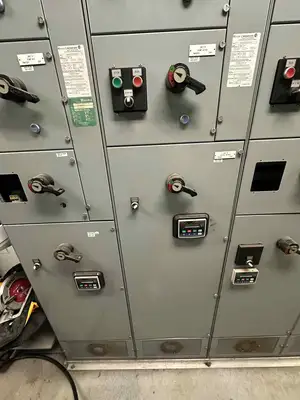

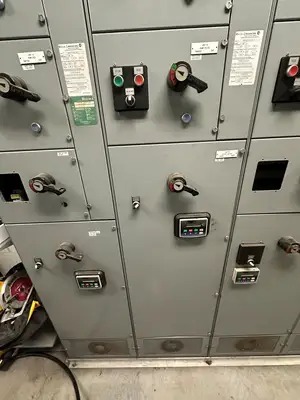

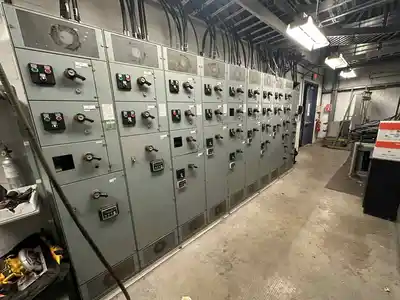

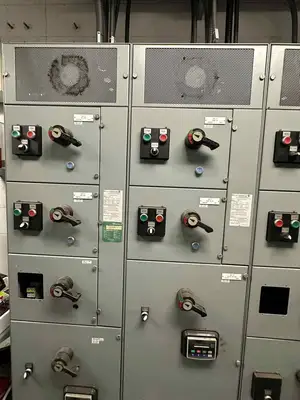

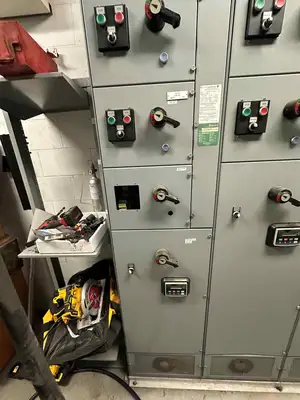

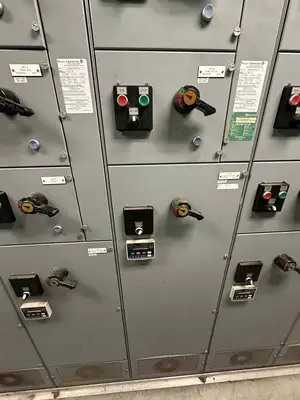

MCC Section w/ 31 x Buckets & 6 x VFD's

Section 1 (11 Buckets), Section 2 (7 Buckets), Section 3 (7 Buckets), Section 4 (7 Buckets), Section 5 (7 Buckets)
Power supply: 600 V, 3 Ph, 60 Hz
Control: 120 VAC
Type: M0M/22/P2-30F-E/Z00-16:
Bucket 1 (B1)
Bucket 2 (B2)
Bucket 12 (F1)
Bucket 14 (F3)
Bucket 19
Bucket 26 (D1)
Bucket 28 (D3)
Bucket 33 (H1)
Bucket 35 (H3)
Max hp: 10
Amp: 11
Control: 120 VAC
Type: M0M/22/P2-30F-E/Z00-10:
Bucket 3 (B3)
Bucket 17 (E2)
Bucket 24
Bucket 31 (C2)
Bucket 38 (G2)
Max hp: 5
Amp: 6.1
Type: M1AM/22/P2-60F-E/Z1-40:
Bucket 4 (B4)
Bucket 18 (E1)
Bucket 25
Bucket 32 (C1)
Bucket 39 (G1)
Max hp: 25
Amp: 27
Type: M0M/22/P2-30F-E/Z00-4:
Bucket 13 (F2)
Bucket 20
Bucket 27 (D2)
Bucket 34 (H2)
Max hp: 2
Amp: 2.7
Type: OM/22/Z00-16/P2-30:
Bucket 21
Max hp: 10
Amp: 11
Type: P2-60/F-C26-CNA
Bucket 5 (B5)
Bucket 6 (B6)
Bucket 7 (A1)
Bucket 8 (A2)
Amp: 60
Type: P2-100/F-C110-CNA
Bucket 9 (A3)
Bucket 10 (A4)
Bucket 11 (A5)
Amp: 100
Type: P2-30F-E/RSi007SX6B
Bucket 22
Max hp: 7.5
Amp: 9
Type: P2-100F-E/RSi040SX6B
Bucket 23
Max hp: 50
Amp: 52
Type: VFD
Bucket 15 (F4)
Bucket 29 (D4)
Bucket 36 (H4)
Max hp: 7.5
Amp: 9
Type: VFD
Bucket 16 (E3)
Bucket 30 (C3)
Bucket 37 (G3)
Max hp: 50
Amp: 52
