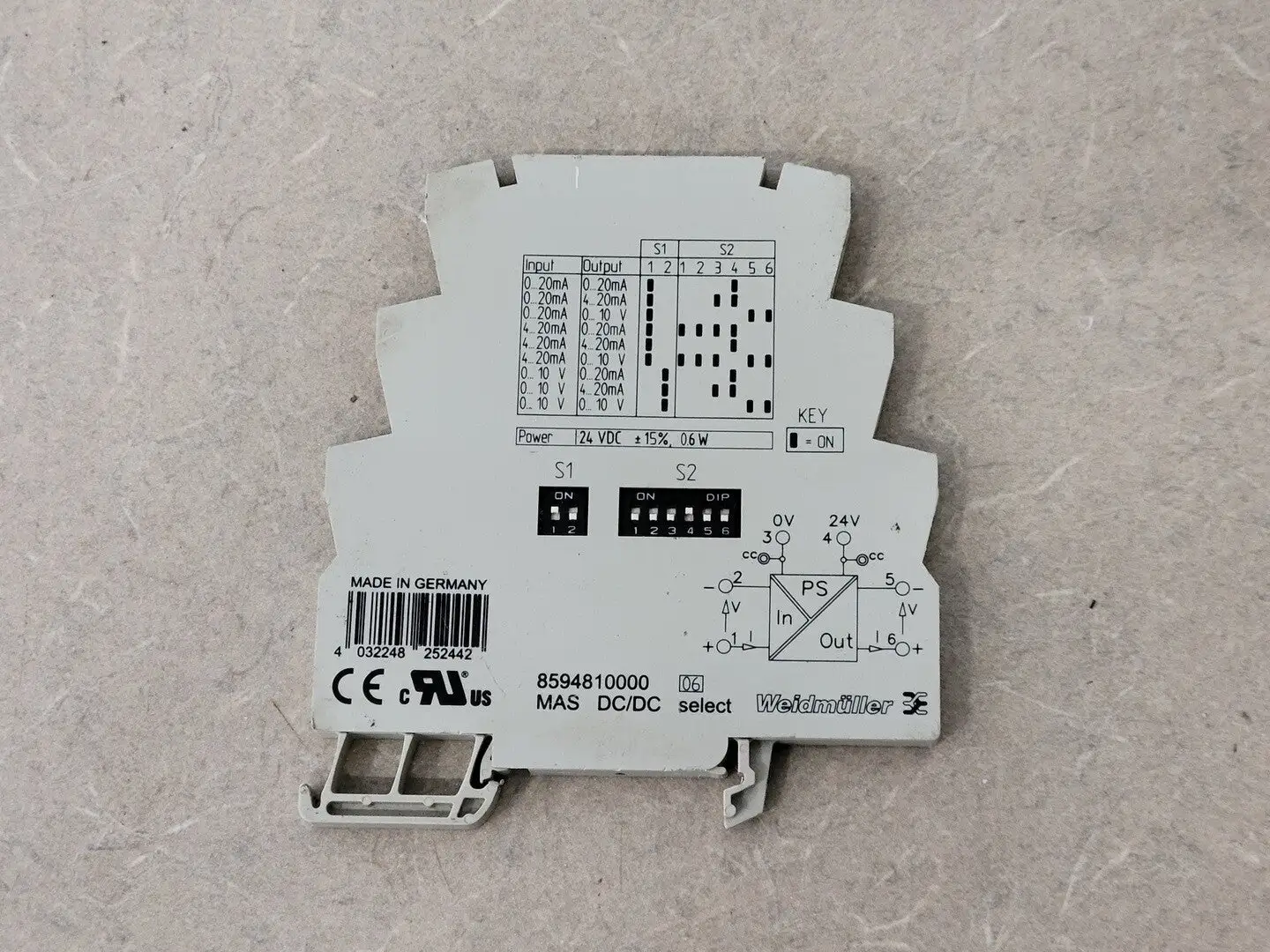

USED WEIDMULLER 8594810000

Power: 24 VDC +/- 15%, 0.6 W
Input Data
Voltage: 0 to 10 V
Current: 4 to 20 mA, 0 to 20 mA (Factory setting)
Resistance, Current: Voltage Drop less than or equal to 0.1 V at 20 mA
Resistance, Voltage: 100 Kilo Ohms
Output Data
Voltage: 0 to 10 V
Current: 4 to 20 mA, 0 to 20 mA (Factory setting)
Load, Current: Less than or equal to 10 V (Less than or equal to 500 ohms at 20 mA)
Load, Voltage: Less than or equal to 1 mA (Greater than or equal to 10 Kilo Ohms at 10 V)
Residual Ripple: < 10 mVrms
Bandwidth: > 100 Hz
Insulation Coordination
Rated Voltage: 50 V
Test Voltage: 500 VAC input against output against power supply
