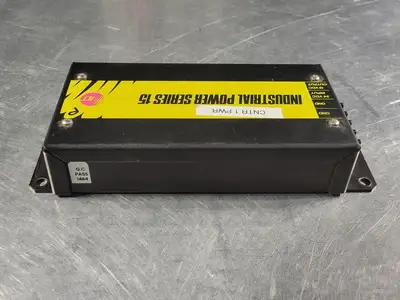

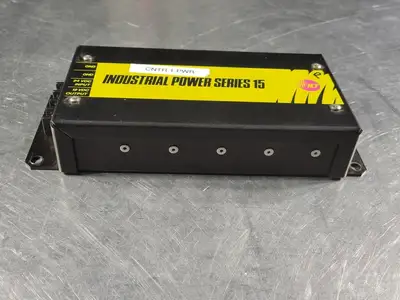

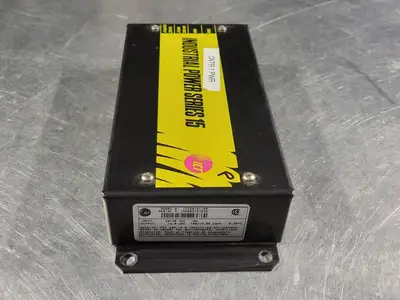

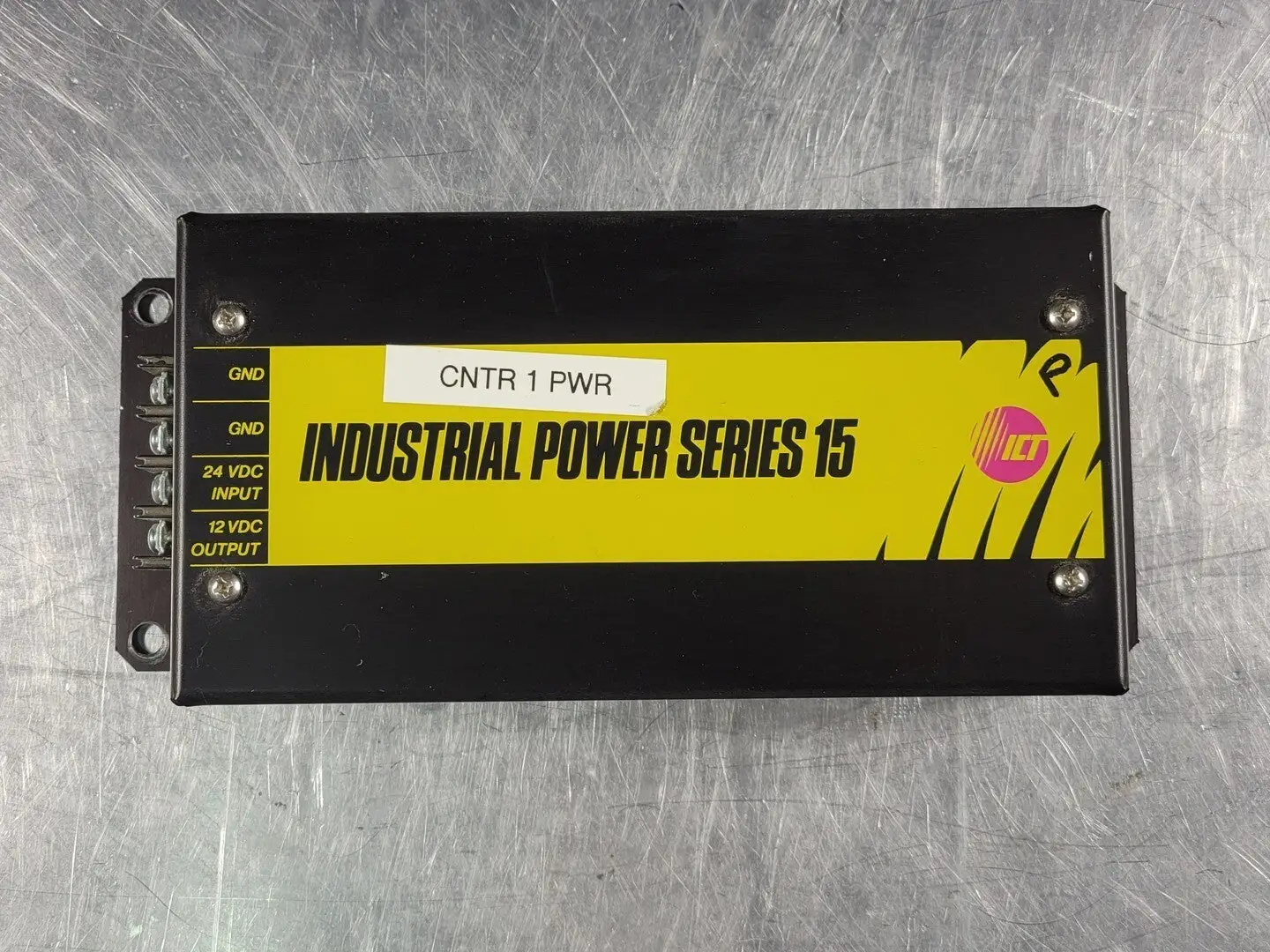

USED INDUSTRIAL SCIENTIFIC ICT2412-15A

USD $52.91
1 available
Overview
Specifications

Input Voltage Range: 20-30 VDC
Output Voltage: 13.8 VDC +/- 300 mV
Output Current (Continuous): 15.0 Amps
Output Current (Peak): 15.0 Amps
Current Limiting: 15.5 Amps +/- 5%
Line Regulation: 1.00%
Load Regulation: 1.00%
Output Ripple (Max): 10 mV RMS
Overvoltage Protection: 16.0 V
Efficiency (Min): 93%
Fuse: 10 Amp
Operating Temperature: -50 deg. F to 104 deg. F, -46 deg. C to 40 deg. C
