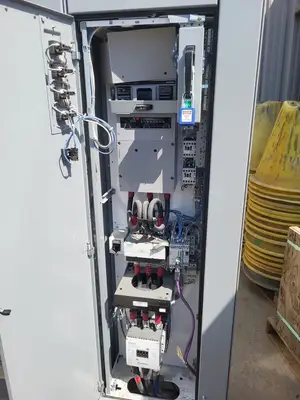

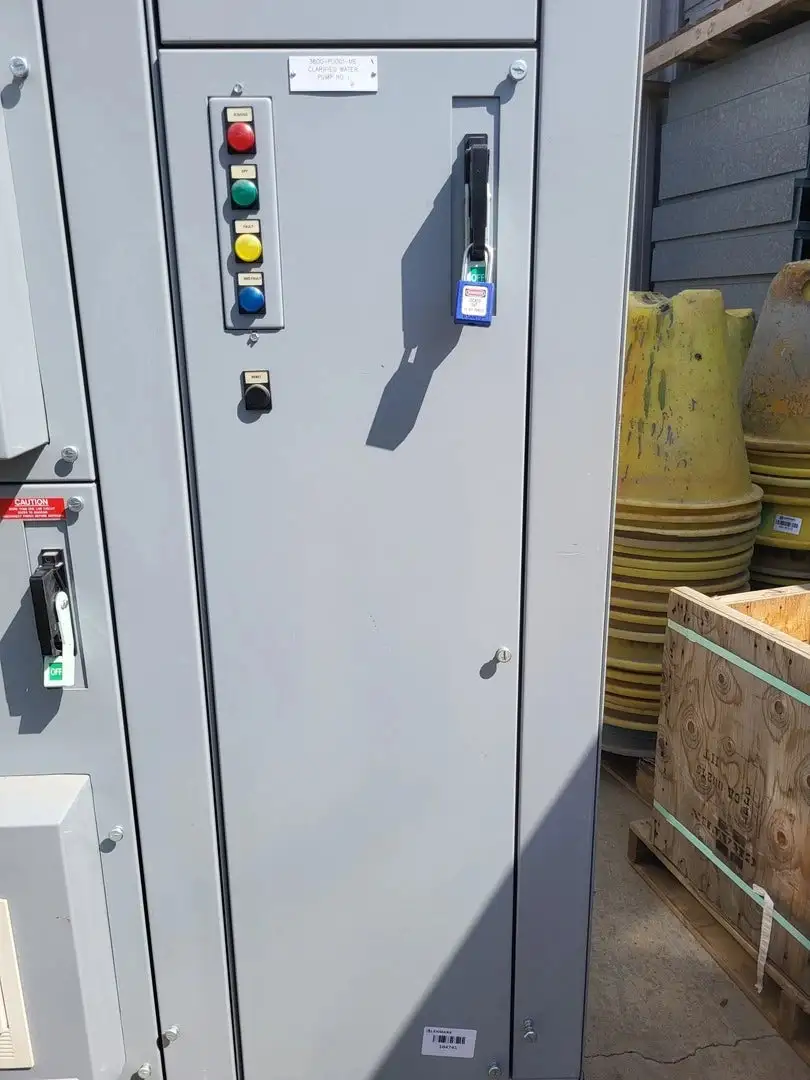

Full Voltage Non-Reversing MCC Bucket Size 5

Size: 5
HP Rating: 200 hp
Max. Voltage: 600
MCC Bucket Specifications:
HP Rating: 200HP
Electrical: 600V, 60hz, 3-Ph
Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 400a 4Kmag
Components
2 x SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC
SIEMENS Contact Block 3SB3400-0D

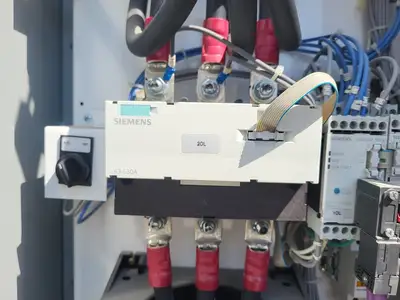

SIEMENS Contactor 40LP32A, 200HP, 270A, 460/575VAC
SIEMENS Circuit Breaker CJD63H400, 400A, 600V, 3-Pole

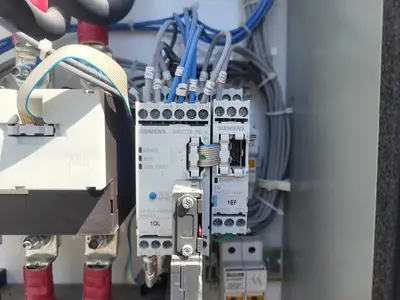

SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Ground Fault Module 3UF7500-1AA00-0

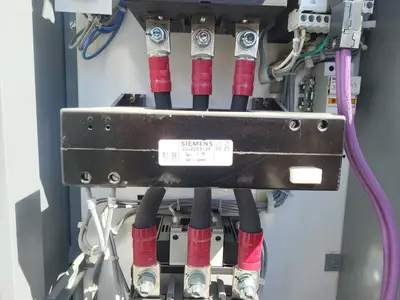

SIEMENS Current Transformer 3UL2203-3A
SIEMENS Current Measuring Module 3UF7104-1BA00-0
