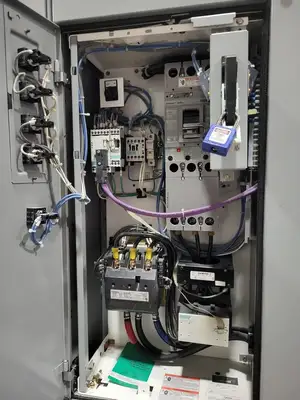

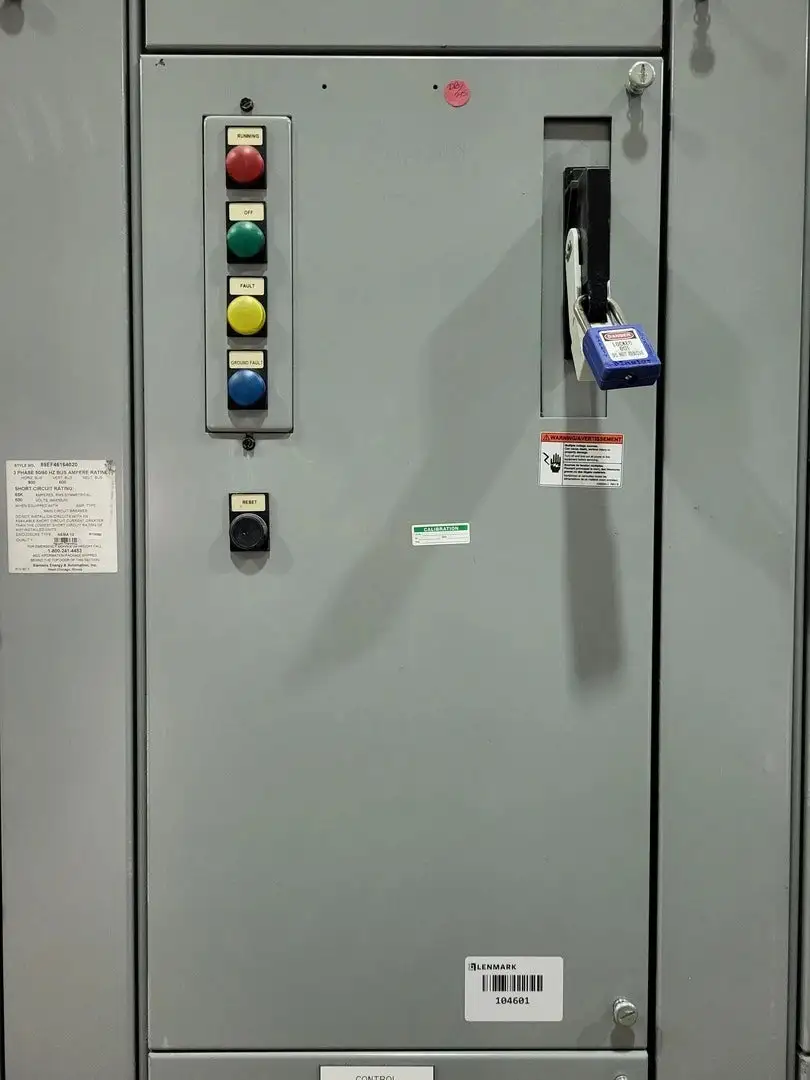

Full Voltage Non-Reversing MCC Bucket Size 4

Size: 4
HP Rating: 100 hp
Max. Voltage: 600
MCC Bucket Specifications:
HP Rating: 100HP
Electrical: 600V, 60hz, 3-Ph
Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 125a 1250mag
Components
SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC
SIEMENS Contact Block 3SB3400-0D

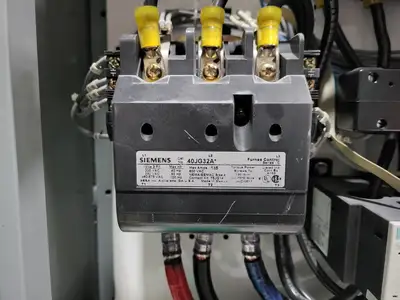

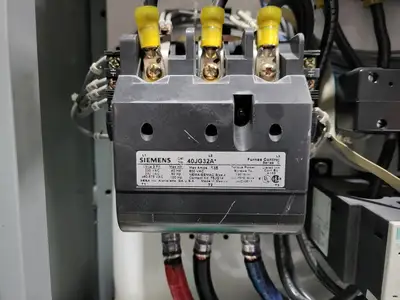

SIEMENS Contactor 40JG32A, 100HP, 135A, 600VAC

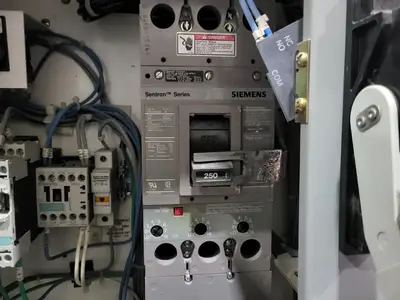

SIEMENS Circuit Breaker CFD63A250, 250A, 600V, 3-Pole
SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Ground Fault Module 3UF7500-1AA00-0
SIEMENS Current Transformer 3UL2202-3A
SIEMENS Current Measuring Module 3UF7103-1AA00-0
