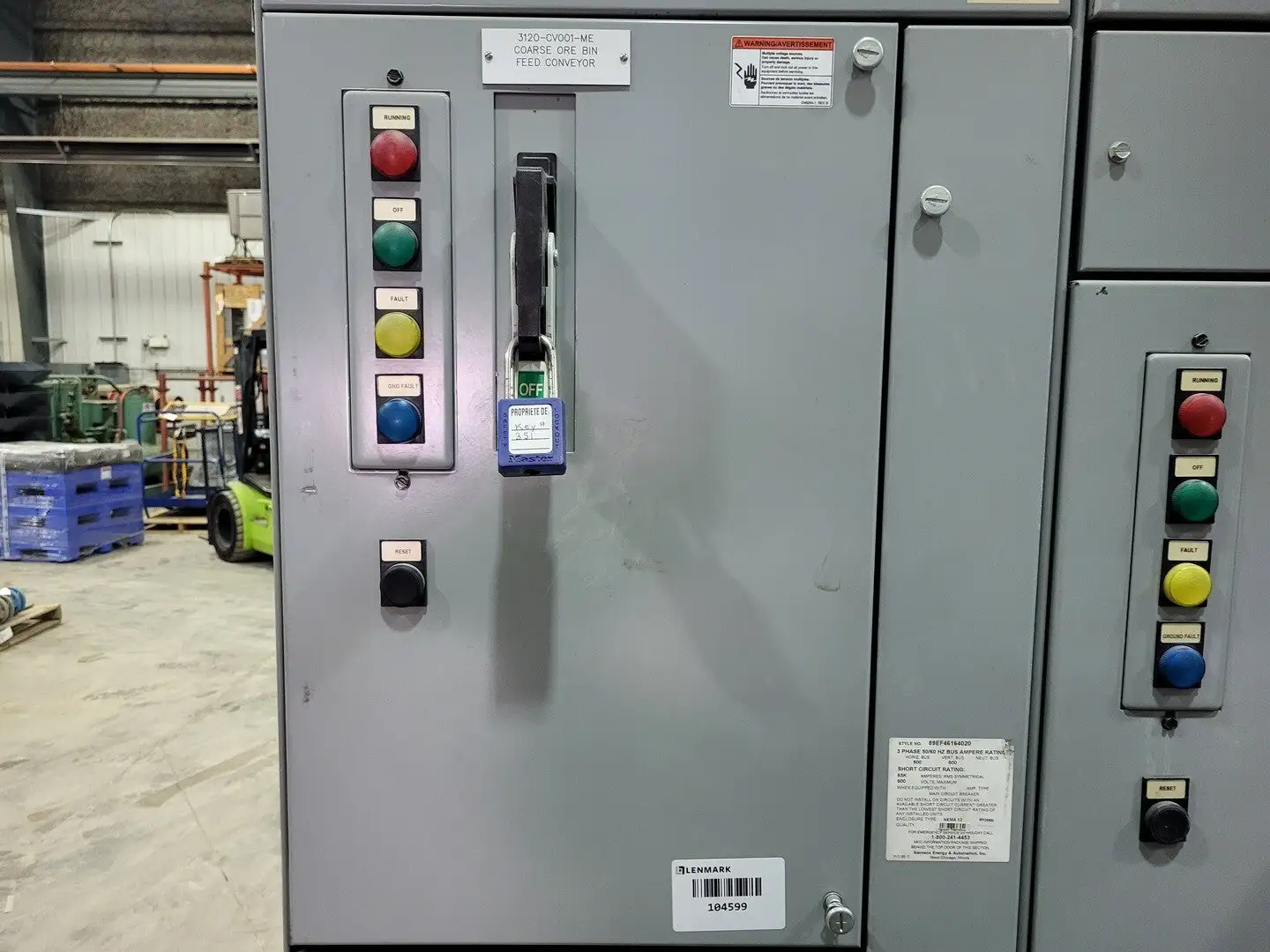

Full Voltage Non-Reversing MCC Bucket Size 3

Size: 3
HP Rating: 40 hp
Max. Voltage: 600

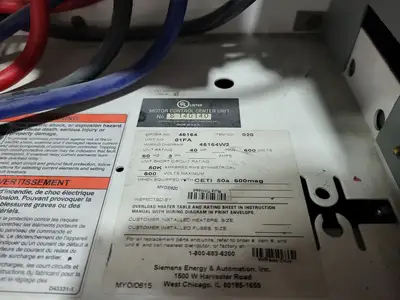

MCC Bucket Specifications:
HP Rating: 40HP
Electrical: 600V, 60hz, 3-Ph
Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 50a 600mag

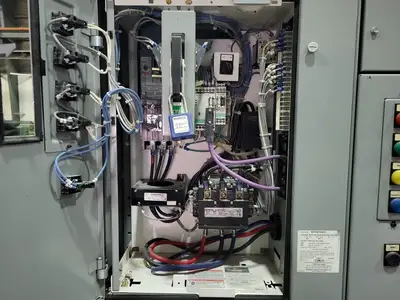

Components
SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC

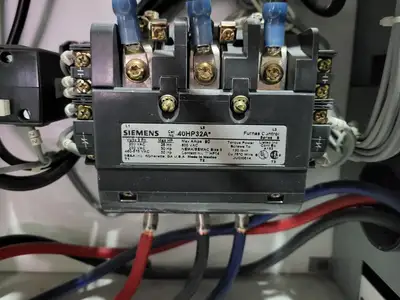

SIEMENS Contactor 40HP32A, 50HP, 90A, 600VAC
SIEMENS Circuit Breaker CED63A100, 100A, 600V, 3-Pole
SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Ground Fault Module 3UF7500-1AA00-0
SIEMENS Current Transformer 3UL2202-3A
SIEMENS Current Measuring Module 3UF7102-1AA00-0
