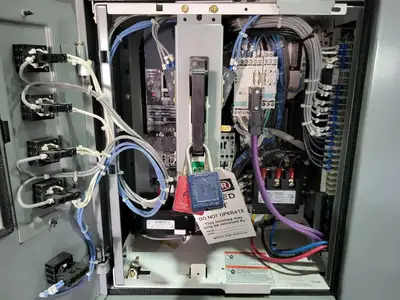

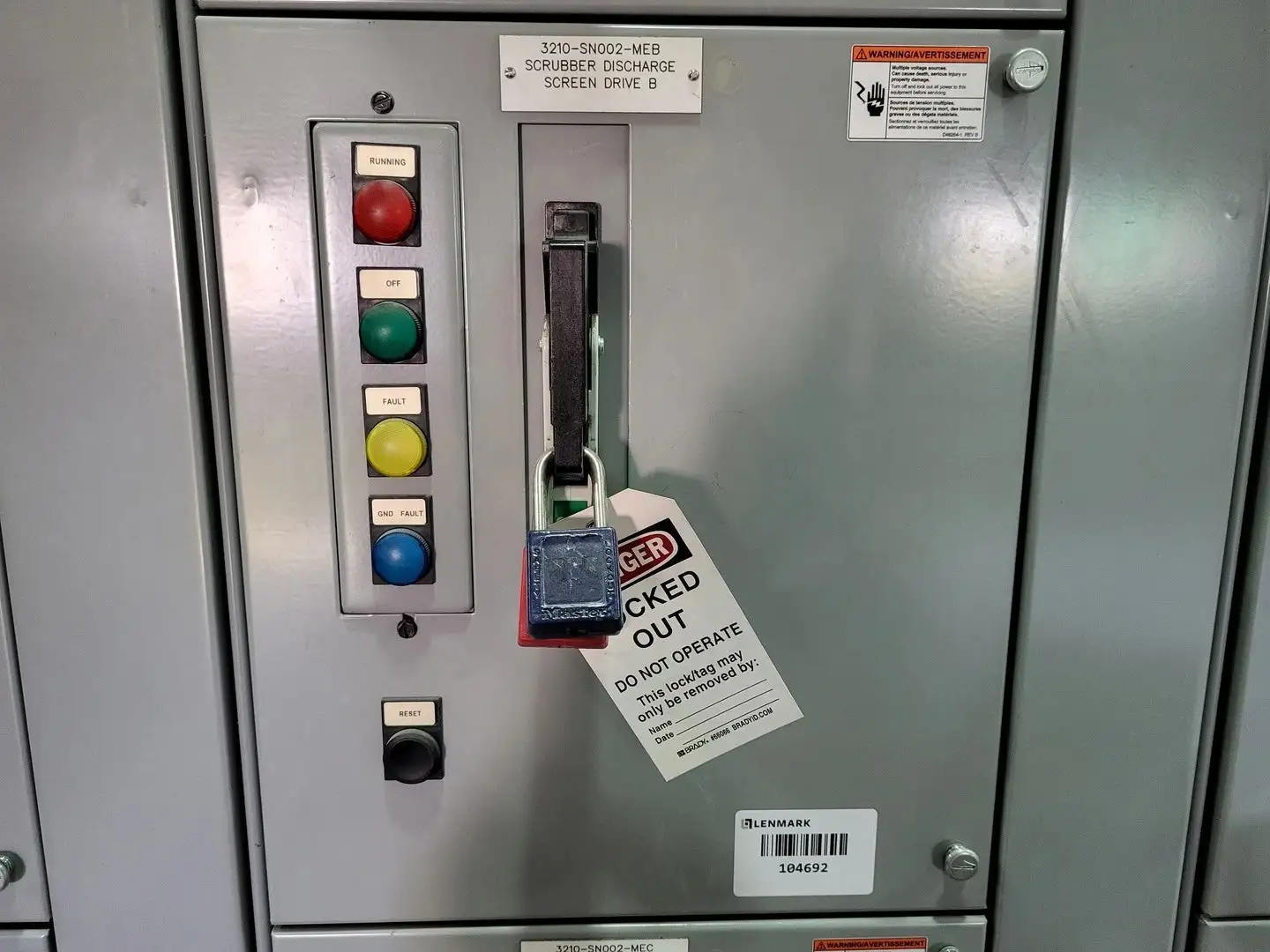

Full Voltage Non-Reversing MCC Bucket Size 2

USD $1,853.22
1 available
Overview
Manufacturer:
SIEMENS
Stock #:
104692
Specifications

Size: 2
HP Rating: 15 hp
Max. Voltage: 600
MCC Bucket Specifications:
HP Rating: 15HP
Electrical: 600V, 60hz, 3-Ph

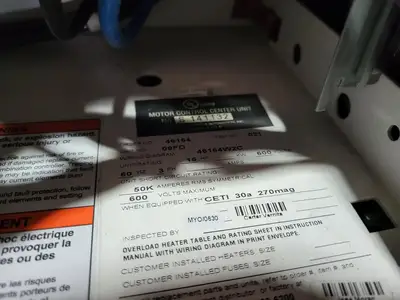

Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 30a 270mag

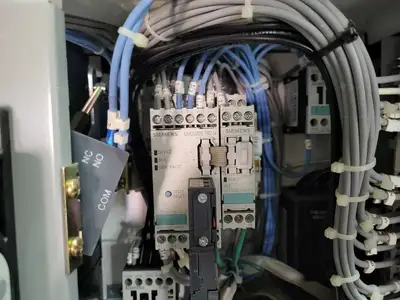

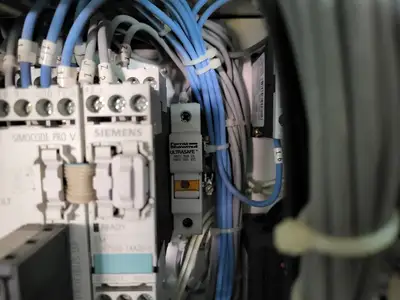

Components
2 x SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC
SIEMENS Contact Block 3SB3400-0D
SIEMENS Contactor 40FP32A, 25HP, 45A, 600VAC
SIEMENS Circuit Breaker CED63A050, 50A, 600V, 3-Pole
SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Ground Fault Module 3UF7500-1AA00-0
SIEMENS Current Transformer 3UL2202-3A
SIEMENS Current Measuring Module 3UF7102-1AA00-0
