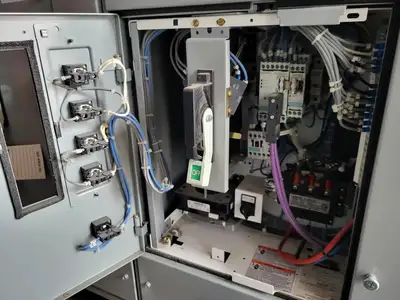

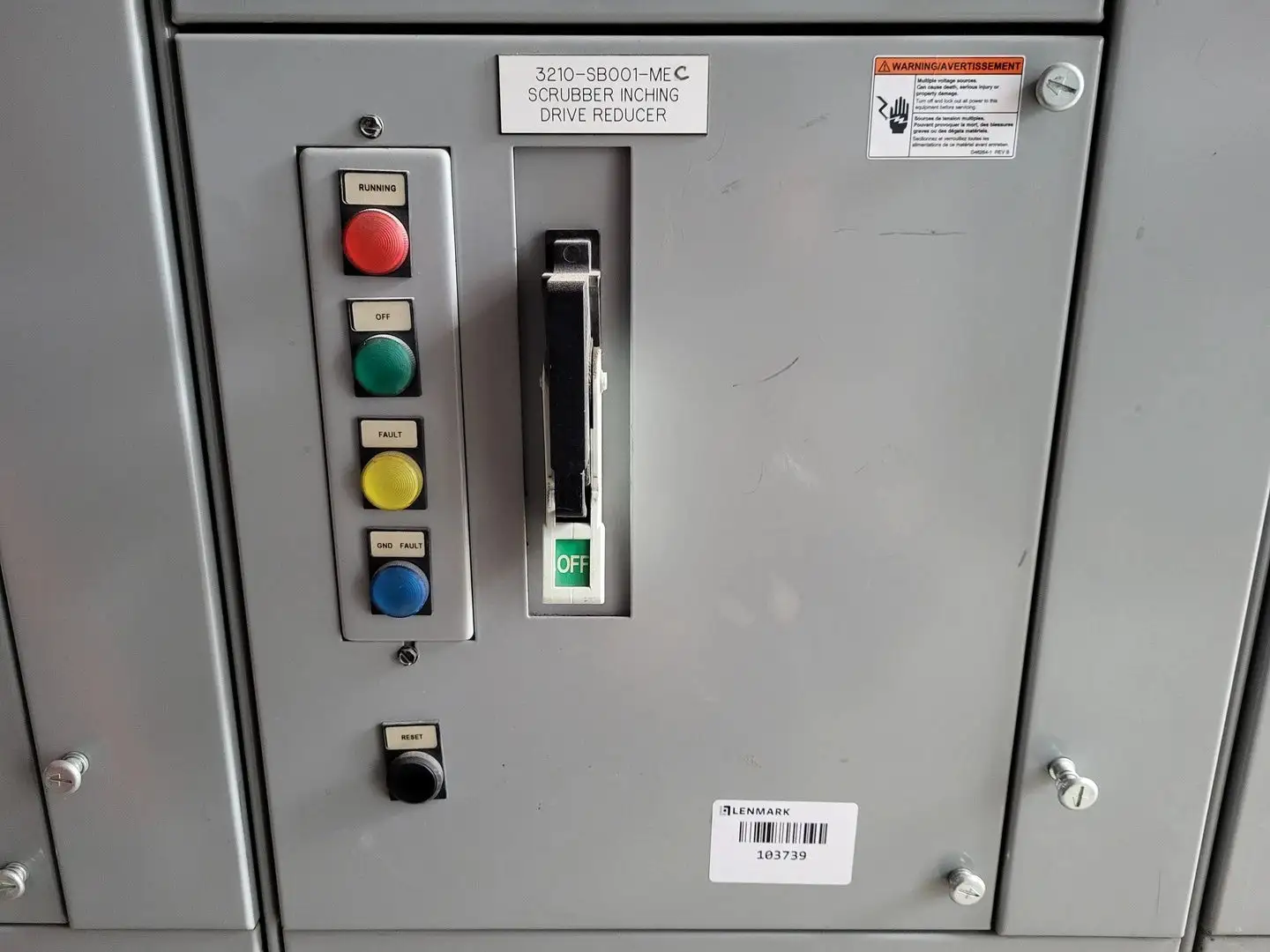

Full Voltage Non-Reversing MCC Bucket Size 2

USD $2,541.57
1 available
Overview
Manufacturer:
SIEMENS
Stock #:
103739
Specifications

Size: 2
HP Rating: 20 hp
Max. Voltage: 600
HP Rating: 20HP
Electrical: 600V, 60hz, 3-Ph

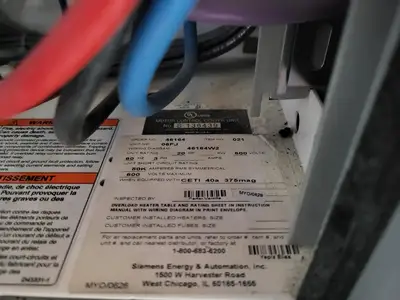

Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 40a 375mag
SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC
SIEMENS Contact Block 3SB3400-0D

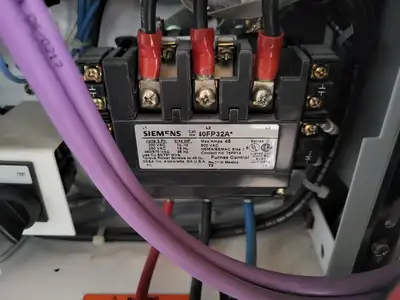

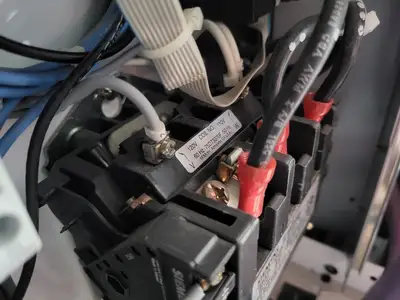

SIEMENS Contactor 40FP32A, 25HP, 45A, 600VAC
SIEMENS Circuit Breaker CED63A040, 40A, 600V, 3-Pole

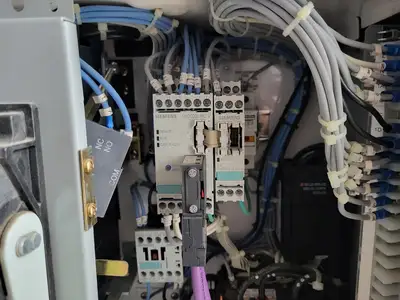

SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Ground Fault Module 3UF7500-1AA00-0
SIEMENS Current Transformer 3UL2202-3A
SIEMENS Current Measuring Module 3UF7102-1AA00-0
