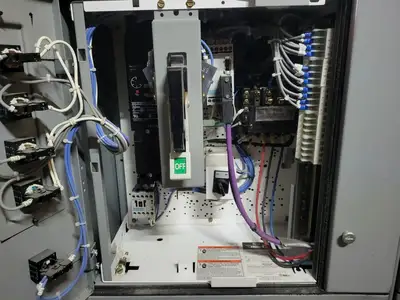

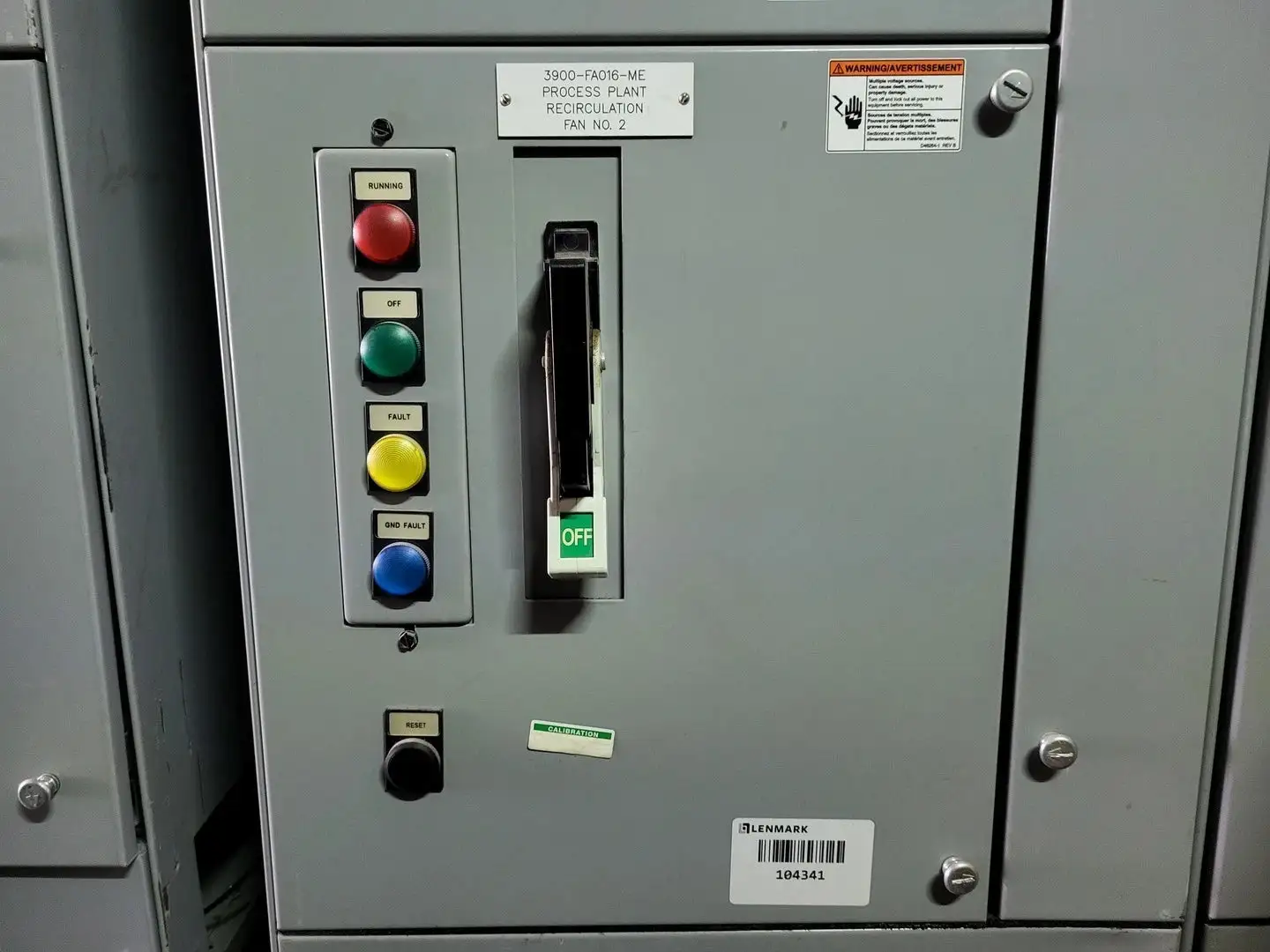

Full Voltage Non-Reversing MCC Bucket Size 1

Size: 1
HP Rating: 5 hp
Max. Voltage: 600
MCC Bucket Specifications:
HP Rating: 5HP
Electrical: 600V, 60hz, 3-Ph

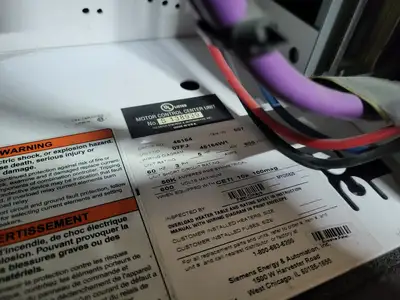

Short Circuit Rating: 50K Amperes RMS Symmetrical, 600V Max. w/ CETI 10a 100mag
Components
SIEMENS Sirius Contactor Relay 3RH1122-1AK60, 2NO+2NC, 10A, 110VAC
SIEMENS Contact Block 3SB3400-0D

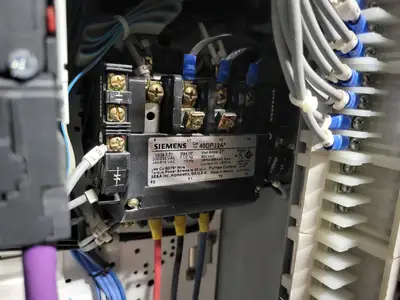

SIEMENS Contactor 40DP32A, 10HP, 27A, 600VAC
SIEMENS Circuit Breaker CED63A010, 10A, 600V, 3-Pole
SIEMENS SIMOCODE Pro V PB Profibus DP Interface 3UF7010-1AU00-0
SIEMENS Current Measuring Module 3UF7102-1AA00-0
