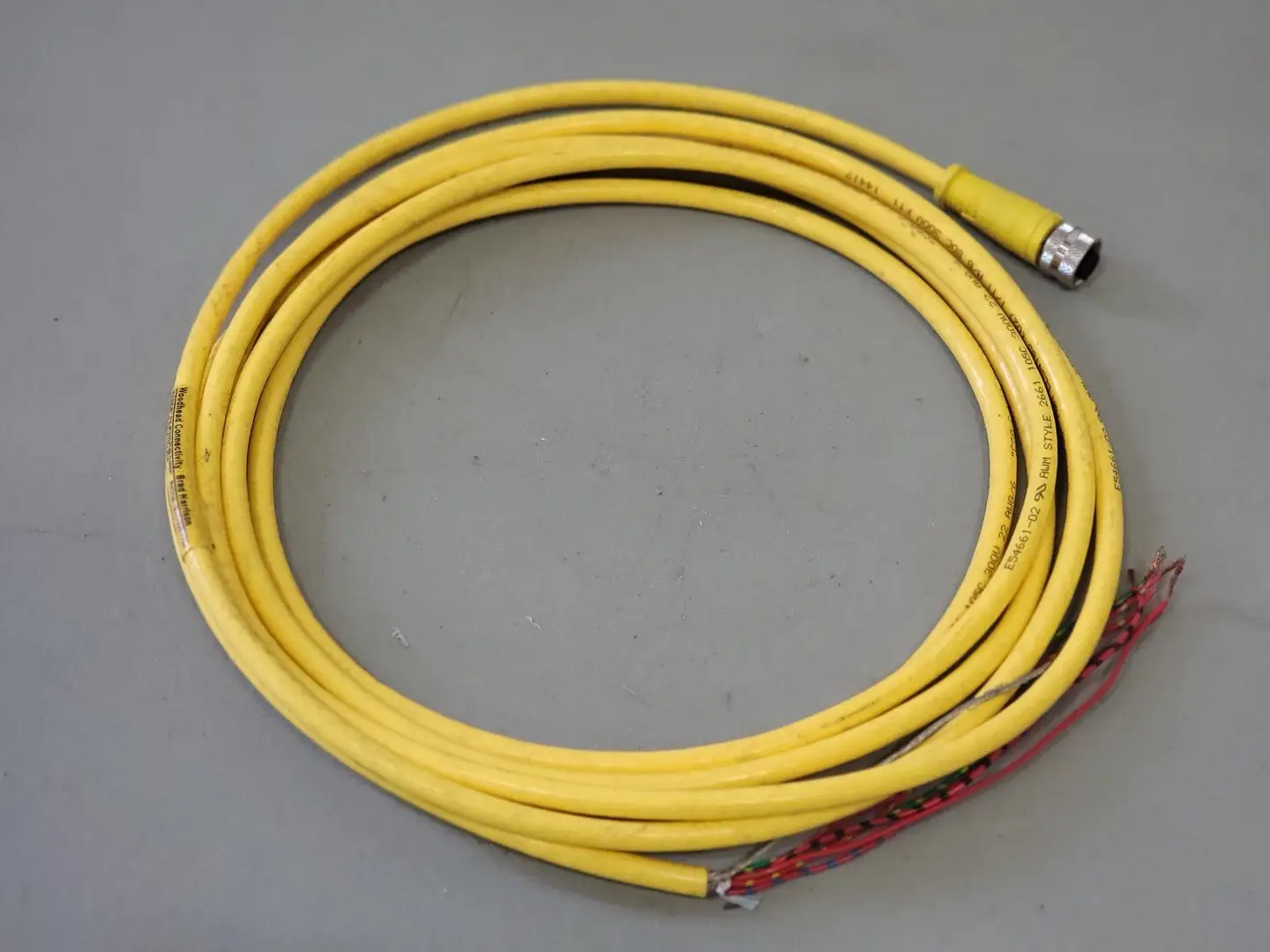

USED WOODHEAD 706000D02F1201

Length: 12 ft
Wire Type: Other
Wire Size: 22 AWG
# of Conductors: 6
Technical Description:
Female Type; Stainless Steel Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Body, Nitrile Rubber O-ring, Nylon 6/6 Connector Face Material; Yellow Color; 12 ft; 22 AWG Braided, PVC Jacket Cable Type; UL, CSA Approval
Wire Code: 1-Red/White Trace 2-Red 3-Green (Ground) 4-Red/Yellow Trace 5-Red/Black Trace 6-Red/Blue Trace
Cable Type: 22 AWG Braided, PVC Jacket
Color: Yellow
Length: 12 Ft
Material: Stainless Steel Zinc Coupling Nut, Gold Over Nickel Plated Contact, Molded PVC Body, Nitrile Rubber O-ring, Nylon 6/6 Connector Face
Application: Indicating Light Tower, Safety Light Curtain/Mat, Sensor, Solenoid, Switch, Valve
Enclosure: NEMA 6, IP68
Approval: UL, CSA
Additional Information: Temperature Rating -20 to 105 Deg C

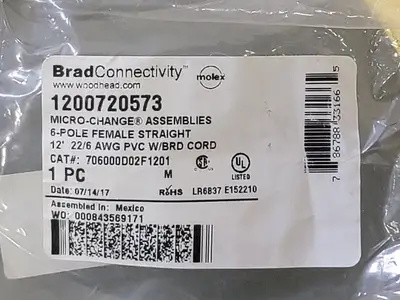

Catalog Number: 706000D02F1201
Brand Name: Micro-Change[R]
Type: Female
Keyway Type: Dual
Connector Type: Straight, Single End
Number of Poles: 6
Voltage Rating: 250 VAC/VDC
Current Rating: 4 Ampere
Category: Cords Sets
