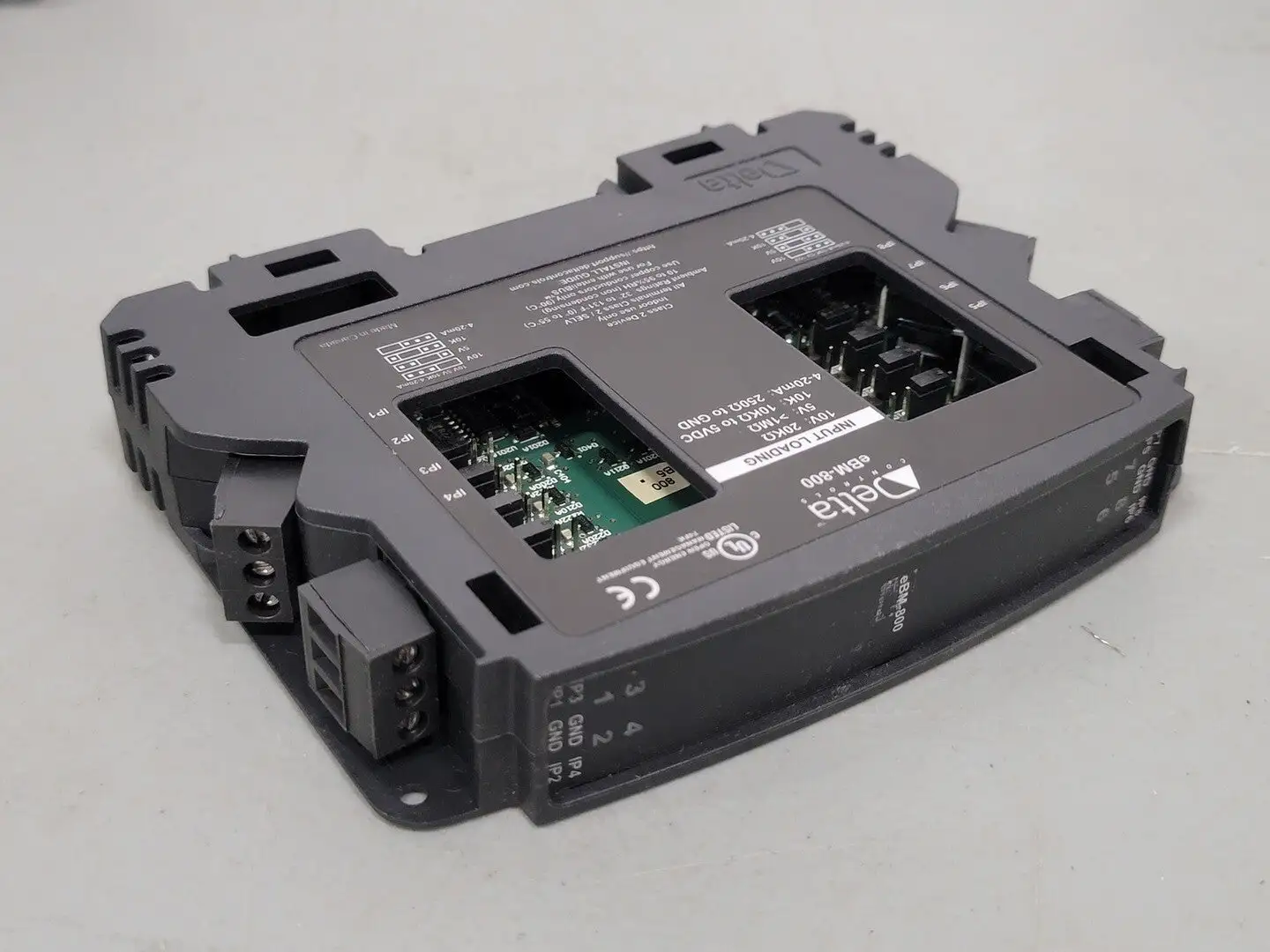

NEW DELTA CONTROLS EBM-800

Features:
8 universal inputs (jumper configurable)
0-100% LED status indication of each input state
Small footprint, DIN rail mountable
Modular design provides flexibility, ease of service, and reduced cost for future upgrades and expansions
Specifications:
Inputs
8 universal inputs (12-bit or 16-bit*), jumper configurable for: 0-5 VDC 0-10 VDC 10 k ohm thermistor Dry contact (using 10 k ohm thermistor jumper setting) 4-20 mA
* Available with eBCON-2, eBMGR-2, or eBX
Mounting
Snap mount to enteliBUS backplane and DIN rail assemble
Connectors
3-pin removable screw-type terminal connectors
Wiring Class
Class 2 / SELV
eBM-800
enteliBUS I/O module with 8 universal inputs
