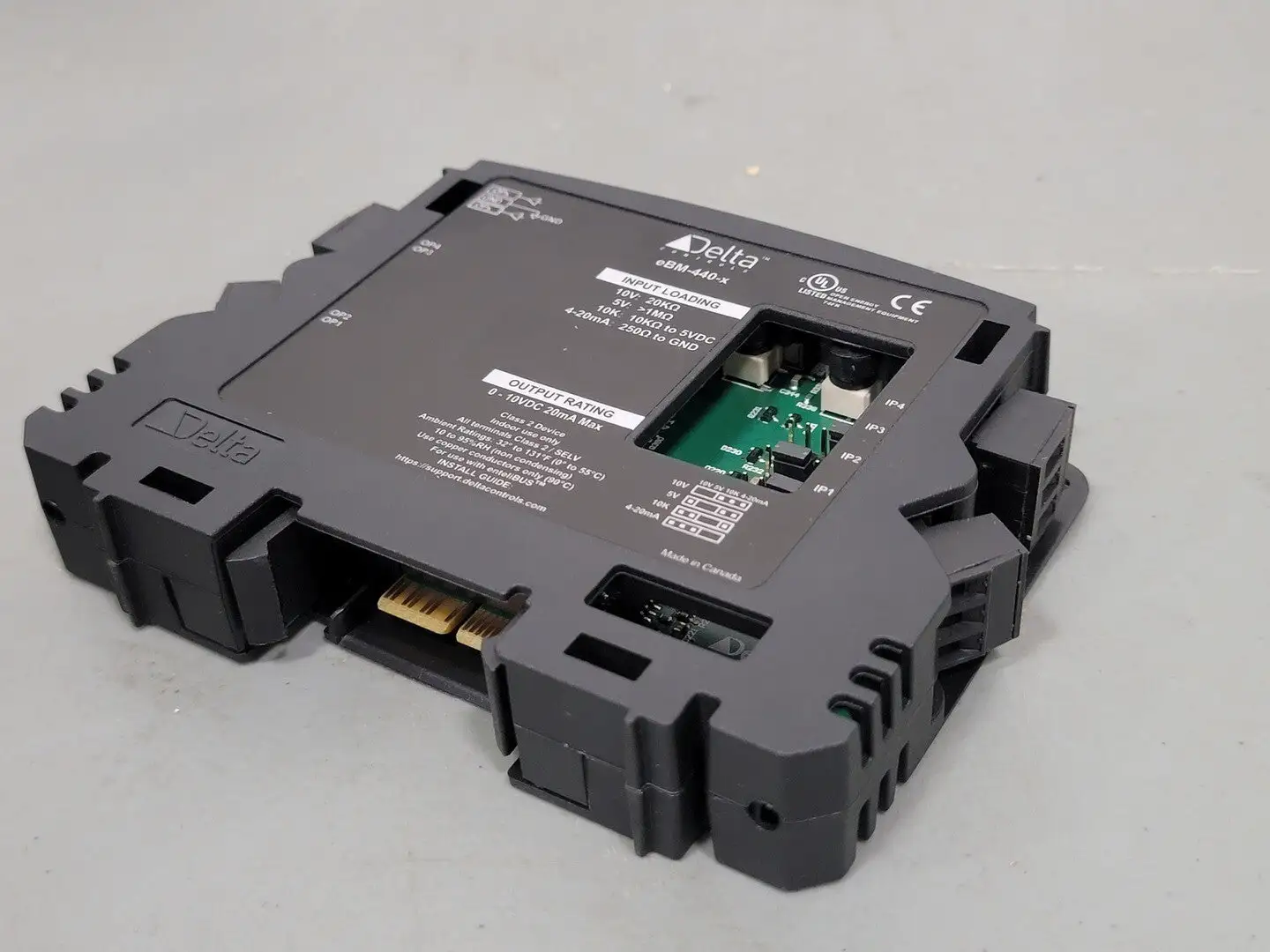

NEW DELTA CONTROLS EBM-440-X

Features:
Universal inputs (jumper configurable)
0-100% LED status indication of each input state
3 position Hand / Auto / Off (HAO) monitored output override switches (optional)
Status of each output indicated by a tri-color LED
Small footprint, DIN rail mountable
Modular design provides flexibility, ease of service, and reduced cost for future upgrades and expansions.
Specifications:
Inputs
4 Universal Inputs (12-bit), jumper configurable for: 0-5 VDC 0-10 VDC 10 k ohm Thermistor Dry Contact (using 10 k ohm Thermistor jumper setting) 4-20 mA
Outputs
4 Universal Outputs (8-bit) 0-10 VDC @ 20 mA max Software configurable as binary or analog Optional 3 position (HAO) override switches with 0 to 100% override adjust levers
Mounting
Snap mount to enteliBUS backplane and 35 mm steel DIN rail assembly
Connectors
3-pin removable screw-type terminal connectors
Wiring Class
Class 2 / SEL
Power
24 VAC / VDC 50/60 Hz @ 5 VA*
*I/O module power is supplied from an eBX or eBCON through the backplane Ambient
32° to 131°F (0° to 55°C) 10 to 95% RH (non-condensing
Enclosure Protection Rating
IP30
eBM-440-M
enteliBUS I/O module with 4 universal inputs, 4 0-10 VDC outputs with 3 position (HAO) override switches and 0 to 100% override adjust levers
