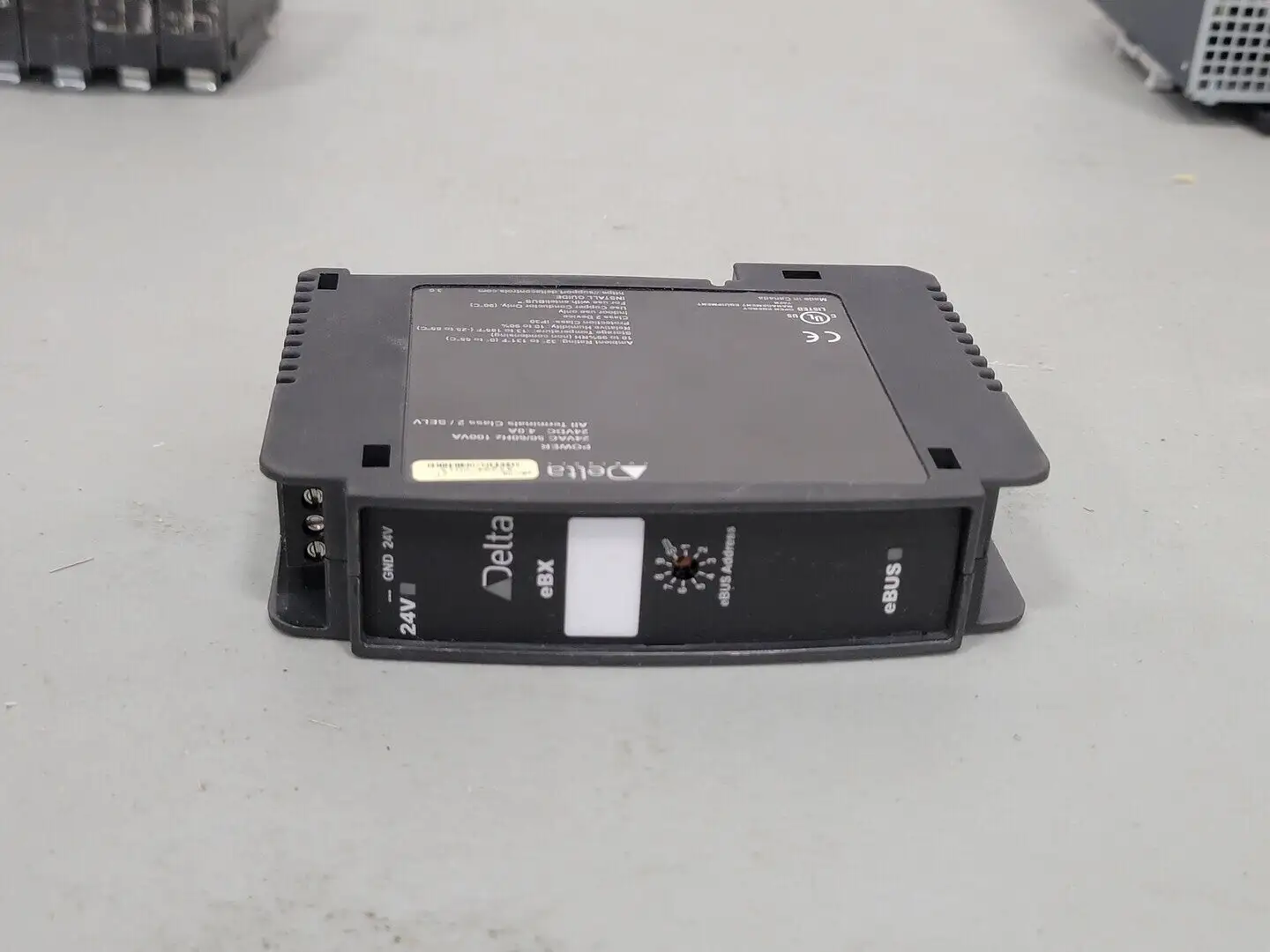

USED DELTA CONTROLS EBX-08

Features
Modular, expandable I/O
Up to 8 expanders/backplanes to a single Automation Engine (eBMGR or eBCON)
Auto-detecting and hot swappable I/O modules
LED status indications of power, module status and communication bus activity
Snap fit, no tools required to add or remove modules
Small footprint, DIN rail mountable
Modular design provides flexibility, ease of service, and reduced cost for future upgrades and expansions
Specifications
Mounting
Backplane: Snap mount to standard 35 mm steel DIN rail
eBX: Snap mount to backplane and standard 35 mm steel DIN rail assembly Device Addressing
eBUS address set via rotary switch
Connectors
Removable screw-type terminal connector for power
Wiring Class
Class 2 / SELV
Power
24 VAC/DC 50/60 Hz @ 3 VA, 100 VA max with fully loaded modules*
*eBX supplies power for up to 8 I/O modules connected to the backplane
Ambient
32° to 131°F (0° to 55°C) 10 to 95% RH (non-condensing)
Enclosure Protection Rating
IP30
