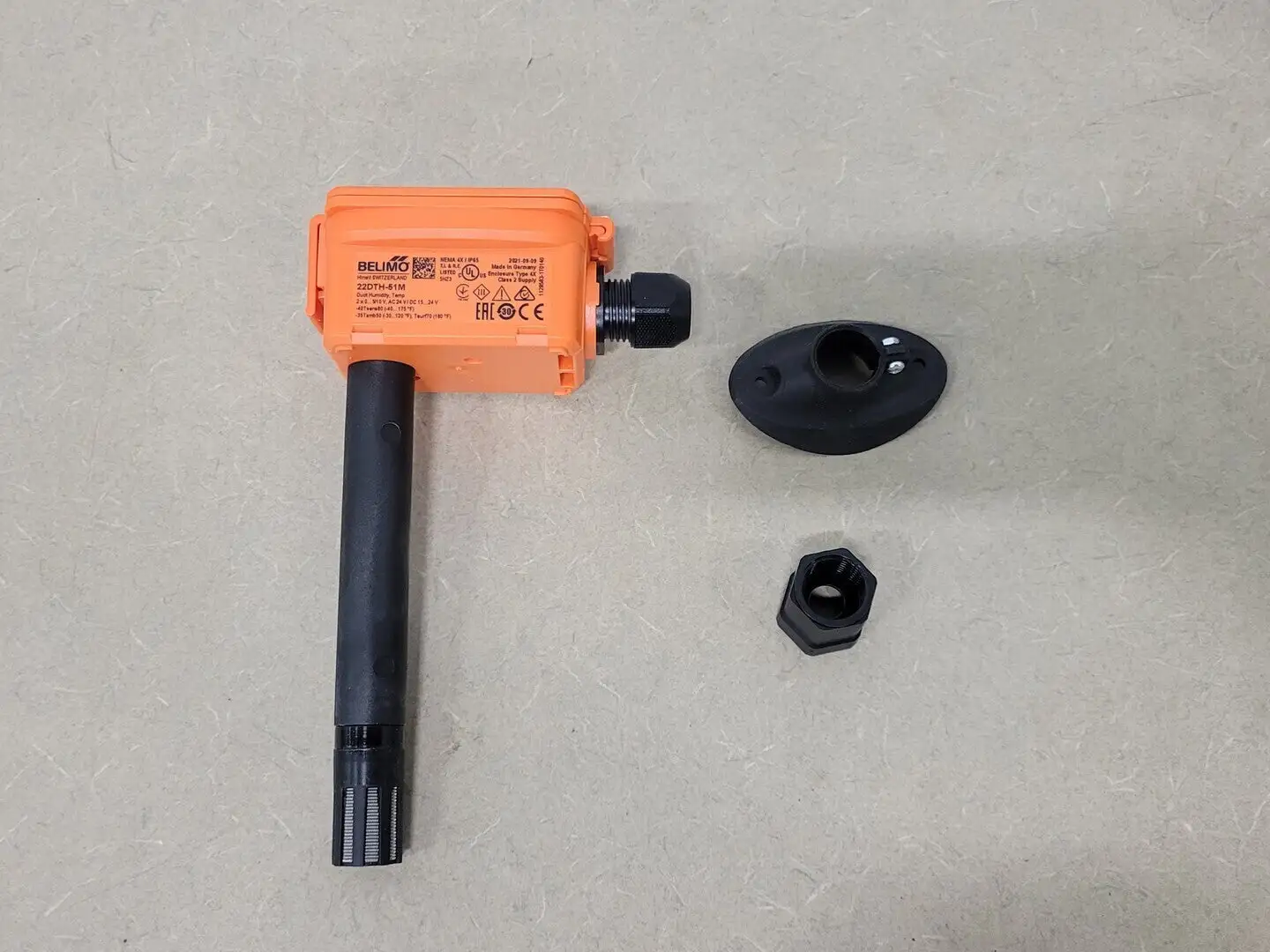

NEW BELIMO 22DTH-51M

Voltage AC/DC: AC/DC 24 V
Enclosure Type: 4X
Degree of Protection: IP65
Electrical Connection: Terminals
Measured Values: Temperature, Humidity
Output Signal Active Humidity/ Temperature: 0-5 V, 0-10 V
Measuring Range Humidity: 0-100% RH non-condensing
Output Voltage (Range): 2 x 0-5 V, 0-10 V, min. resistance 10 k ohms
Output Signal Active Note: output 0-5/10 V with jumper adjustable
Probe Length: 5.5" (140 mm)
Ambient Temperature: -30 deg. F to 120 deg. F
Fluid Temperature: -40 deg. F to 175 deg. F
