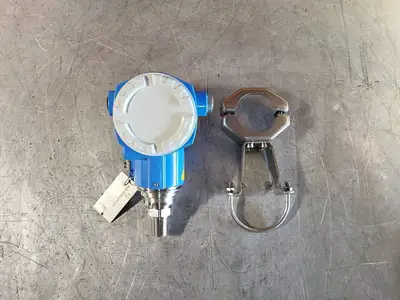

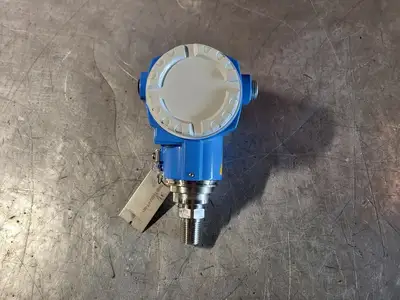

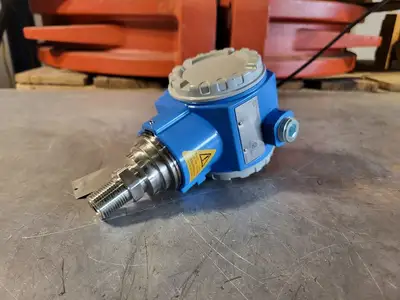

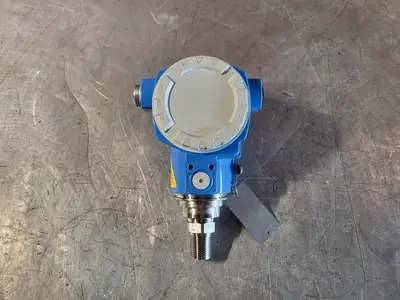

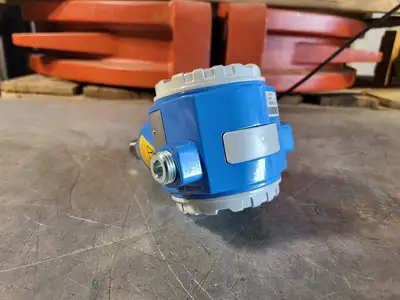

NEW 2007 ENDRESS+HAUSER PMP71-WCC1P21RAAAU

Application
The Cerabar S pressure transmitter is used for the following measuring tasks:
1. Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process engineering and process measurement technology
2. Level, volume or mass measurement in liquids
3. High process temperature - without diaphragm seals up to 150 deg C (302 deg F) - with typical diaphragm seals up to 400 deg C (752 deg F)
4. High pressure up to 700 bar
5. International usage thanks to a wide range of approvals
Sensor Nominal Range: -100 ... 1000 kPa

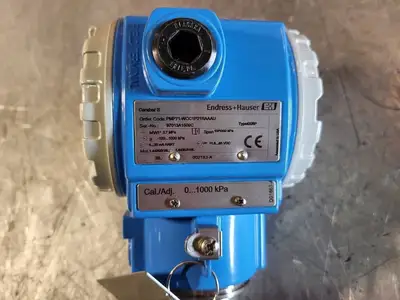

Calibration: 0 ... 1000 kPa
Electronic Type: 4 ... 20 mA, HART
Approval: CSA Class II, III Division 1, Groups E - G (Dust Ex)
Output; Operation: 4...20 mA HART, operation inside

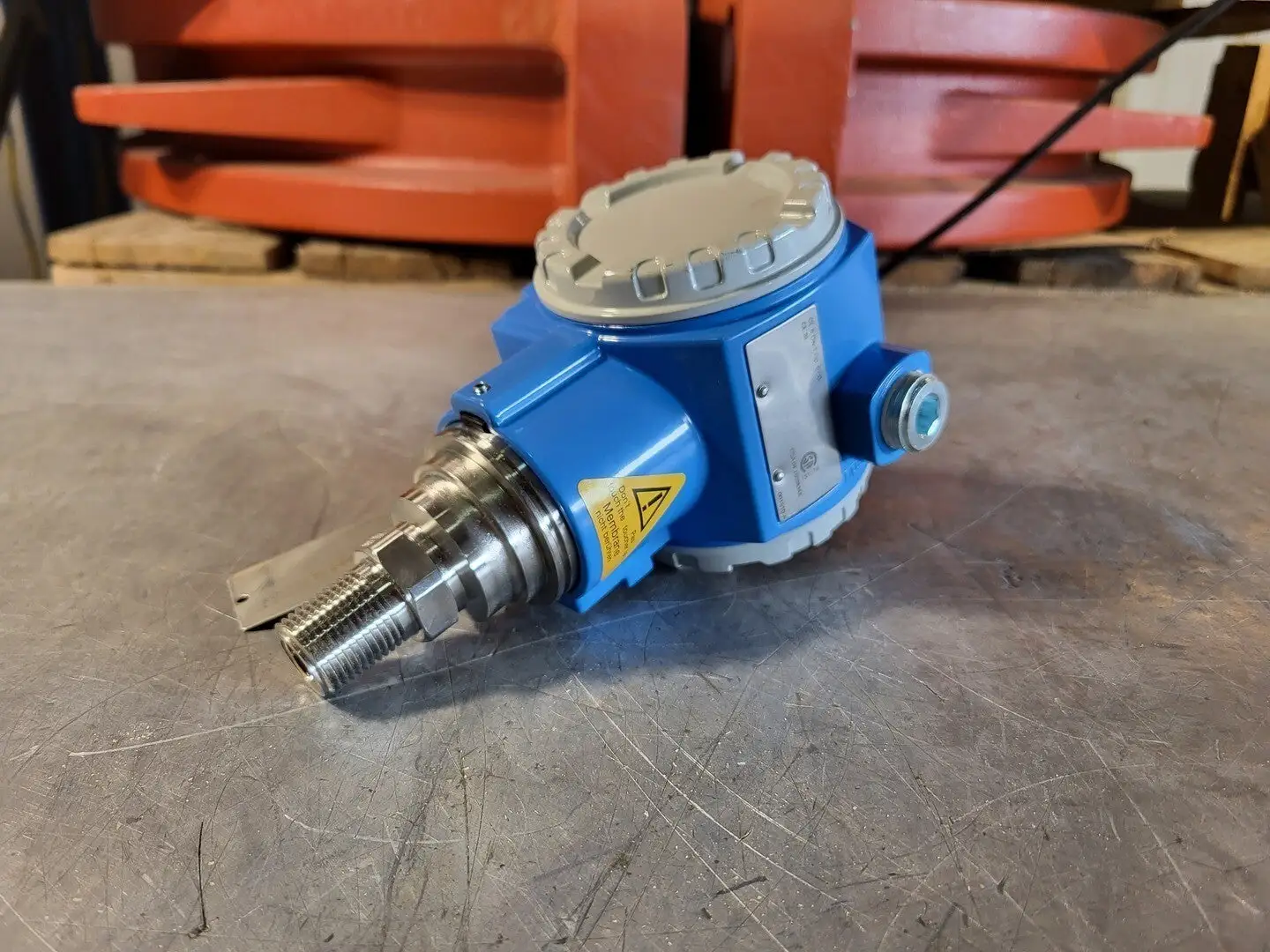

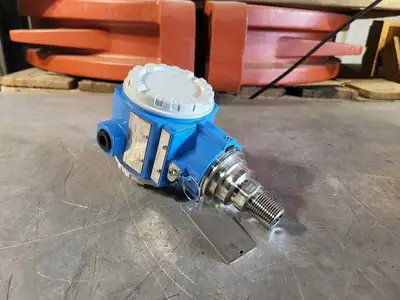

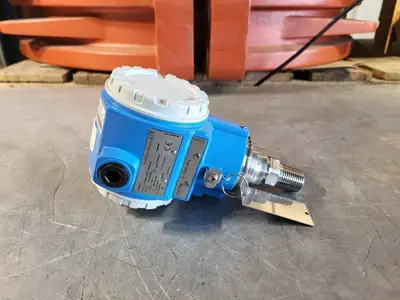

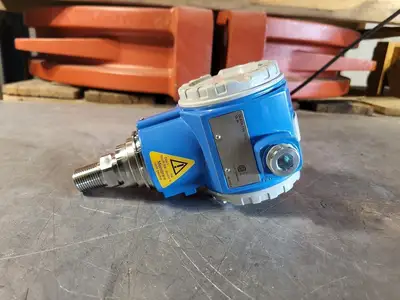

Housing; Cable Entry; Protection: Aluminum T14 housing, optional display on the side, IP 66/67/NEMA 4X/ 6P, Thread 1/2 NPT
Sensor Range; Sensor Overload Limit (= OPL): 10 bar/1 MPa/150 psi g
Calibration; Unit: Sensor range; kPa/MPa
Membrane Material: AISI 316L

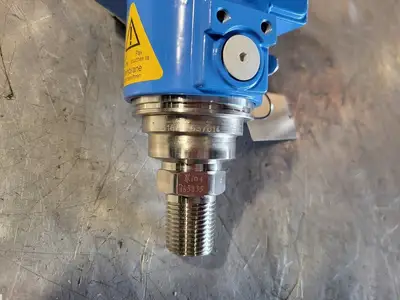

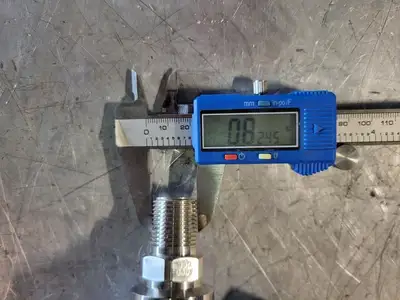

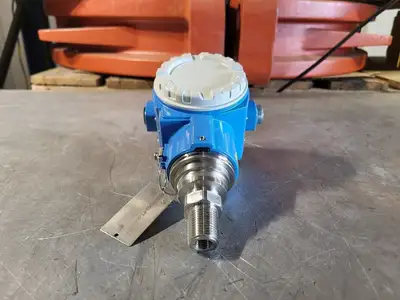

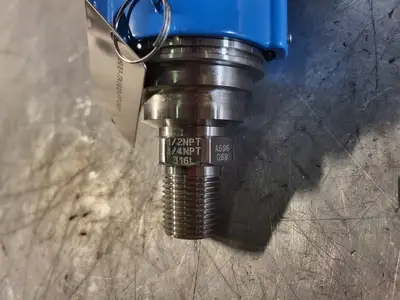

Process Connection; Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)
Fill Fluid: Silicone oil fill
Additional Option 1: not selected

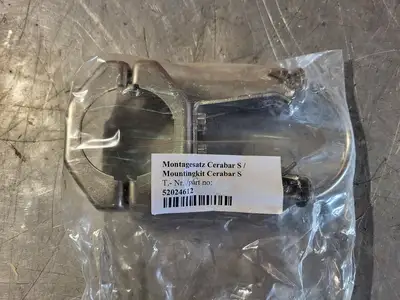

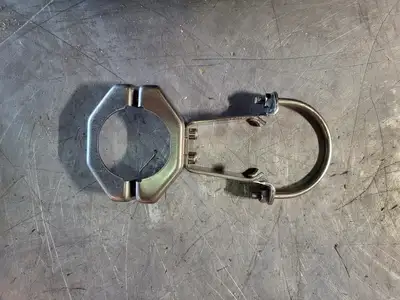

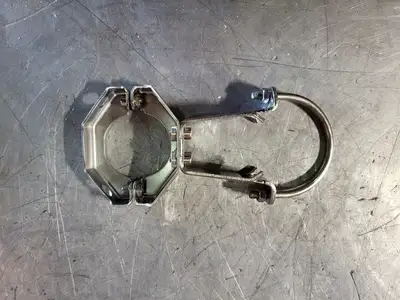

Additional Option 2: Mounting bracket for wall/pipe, AISI 304
