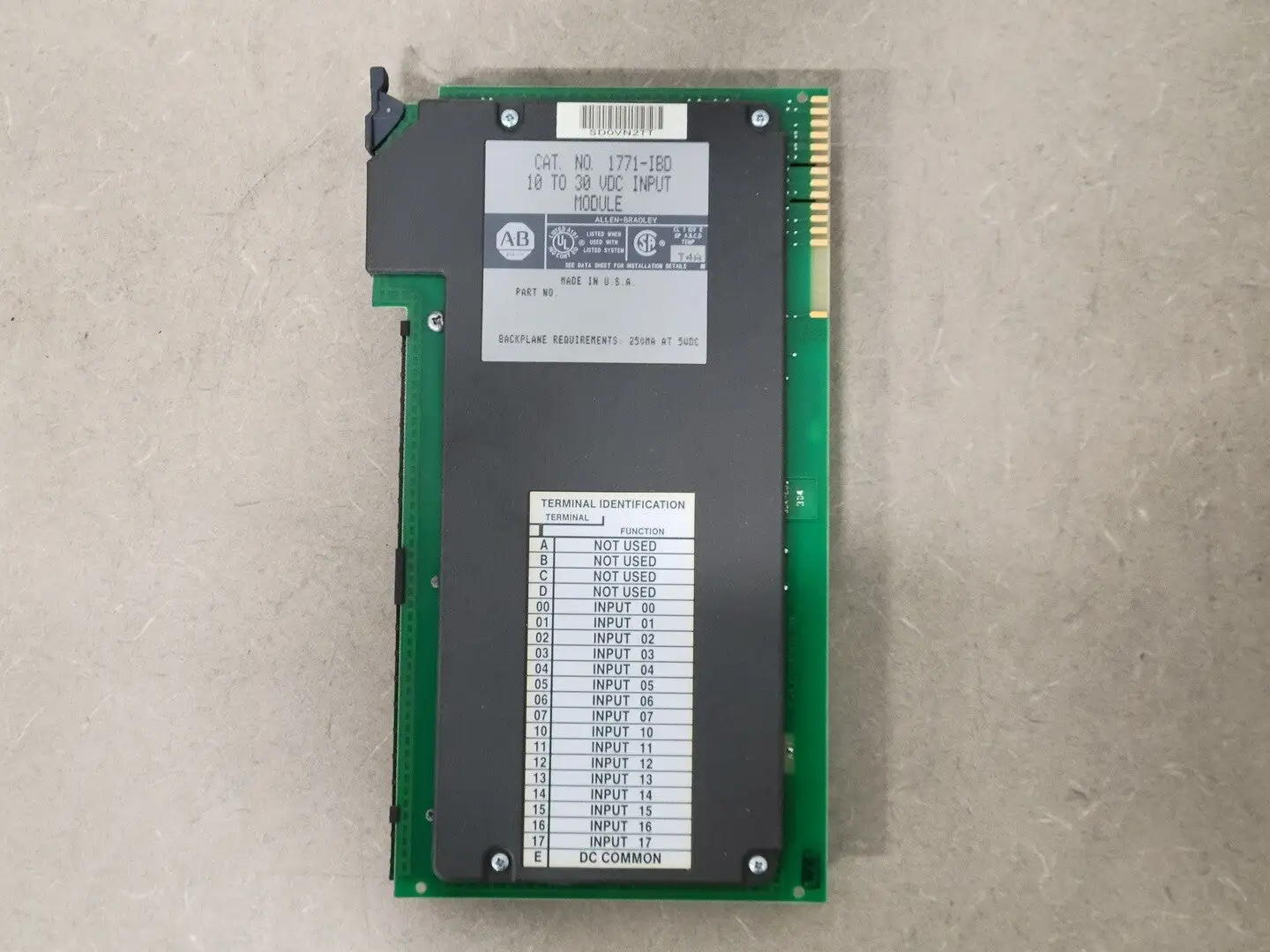

NEW ALLEN-BRADLEY 1771-IBD

Series: B
Wiring Arm Screw Torque: 7-9 inch-pounds
Compatible Chassis: All 1771 I/O Chassis except 1771-A1, -A2, and -A4
Backplane Current at 24 VDC: 130 mA @ 5 VDC +5%
Thermal Dissipation: 24.7 BTU/hr (max.)., 3.4 BTU/hr (min.)
Power Dissipation: 7.3 Watts (max.), 1.0 Watts (min.)
Input Delay Time, ON to OFF: 1 ms or 6 ms
Input Delay Time, OFF to ON: 1 ms
Number of Inputs: 16
Module Type: Digital DC Input Module
Circuit Logic: Sinking
Mounting: Rack Mount
Voltage Category: 10 to 60 DC, Sink
DC Operating Voltage: 10 to 30 Volts
Backplane Current: 130 Milliamperes
Max DC Off-State Current: 2.0 Milliamperes
Typical DC Signal Delay (On): 1.3 (+/- 0.1) Milliseconds
Typical DC Signal Delay (Off): 1.3 (+/- 0.1) Milliseconds
Wiring Arm: 1771-WH
Typical AC Signal Delay (Off): 20 (+/- 15) Milliseconds
