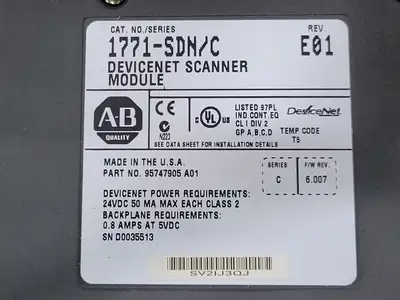

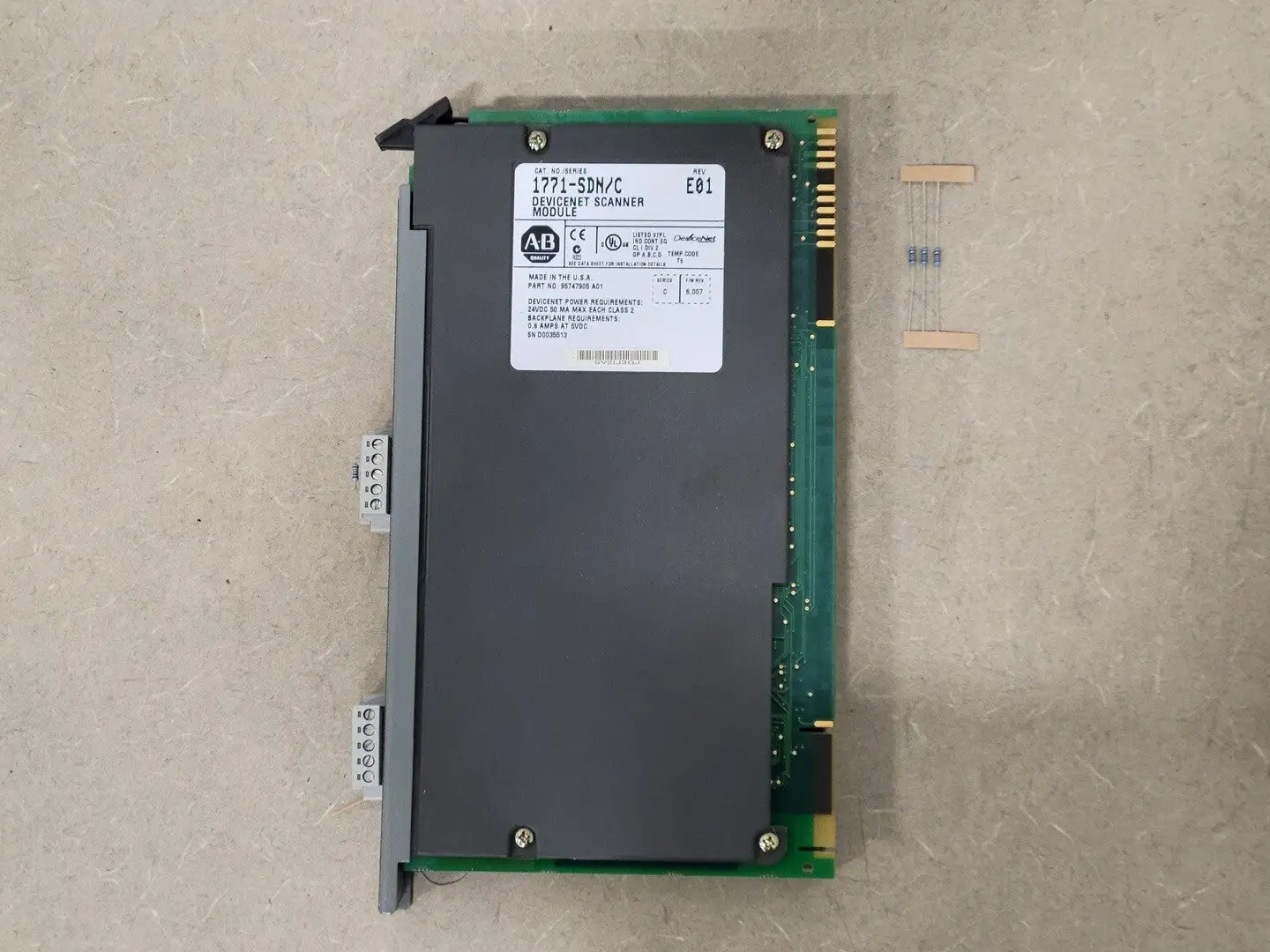

NEW ALLEN-BRADLEY 1771-SDN/C

Series: C
Part Number: 95747905 A01
Baud Rate: 125 Kbits/s
Operating Temperature: 0-60 deg. C ( 32-140 deg. F)
Storage Temperature: -40 to 85 deg. C (-40 to 185 deg. F)
Operating Vibration: 2g @ 10-500 Hz
Operating Shock: 30 g
DeviceNet Power Consumption: 24 VDC, 50mA Per Channel Class 2
Backplane Current: 5 VDC, 0.8 A
Slot Width: 1 Slot
Module Type: DeviceNet Scanner Module
Node Address: 63
Module Location: 1771-A1B through -A4B or later I/O Chassis
Communication Port Protocol: DeviceNet
Operation: Scan I/O and Process Messages
Communication w/ PLC Processor: Block-Transfer w/ PLC-5 Processor
Max Continuous Current Per module: 2 Amperes
Max Current Per Module: 8 Amperes
Typical AC Signal Delay (On): 11 (+/-6) ms
Typical DC Signal Delay (On): 3(+/-2) ms
Typical AC Signal Delay (Off): 29 (+/-8) ms
Typical DC Signal Delay (Off): 30 (+/-7) ms
Wiring Arm: 1771-WN
