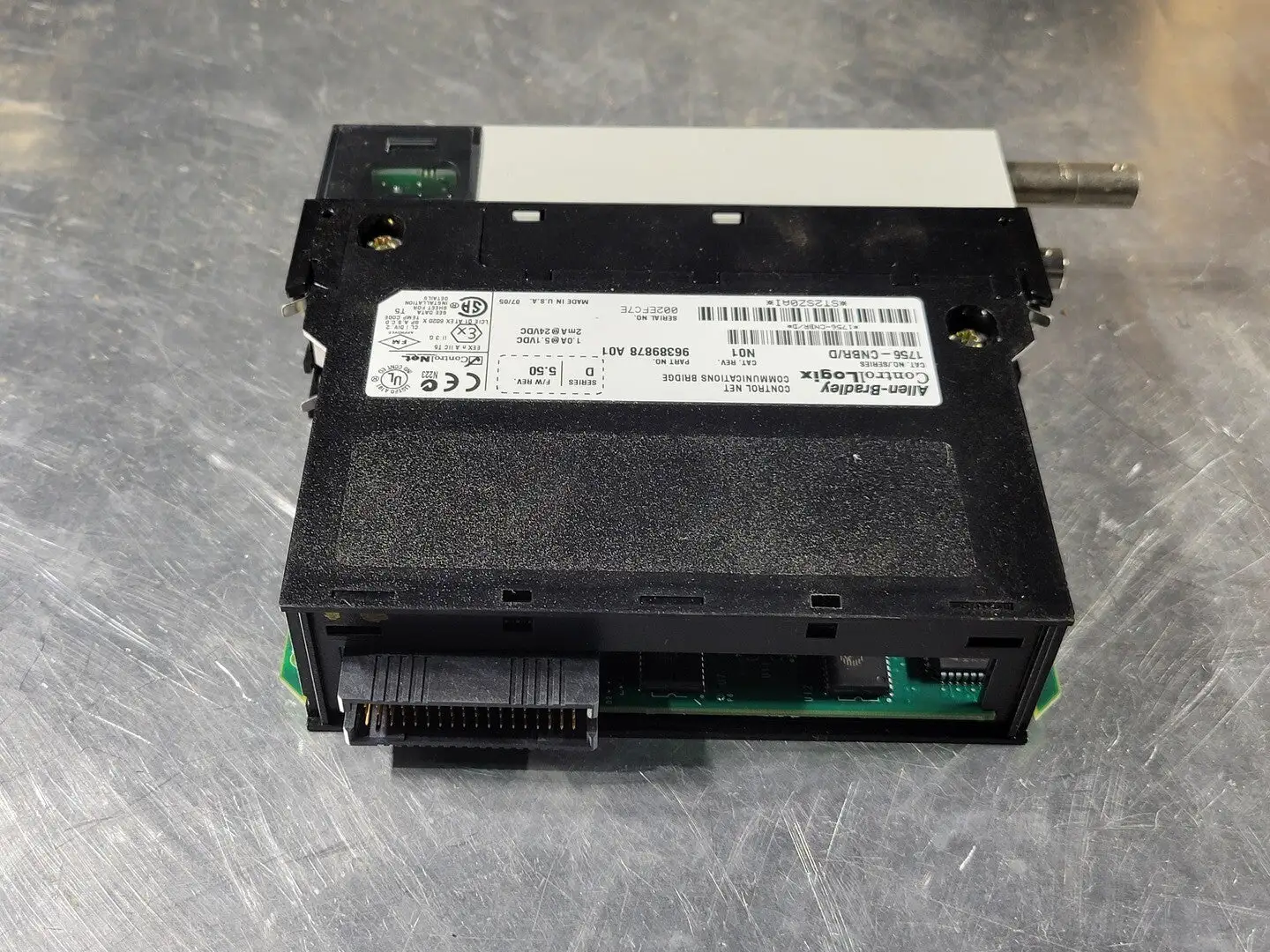

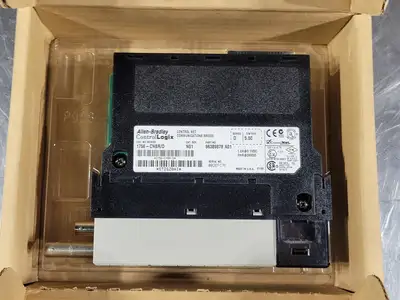

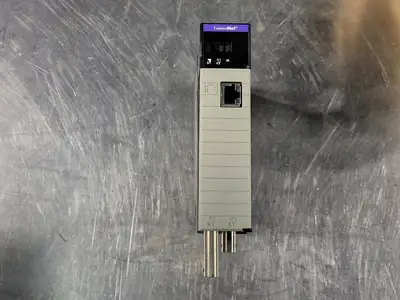

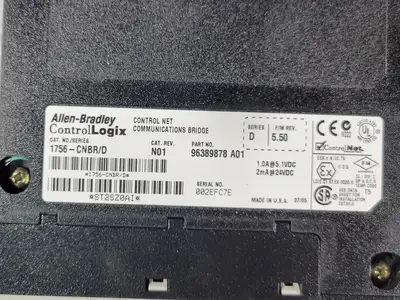

NEW ALLEN-BRADLEY 1756-CNBR/D

Connectors: 2 BNC connectors for redundant media operation 1 NAP (RJ-45 8-pin with shield)
Cable: Quad shield RG-6 coaxial cable
Ground Isolation: Transformer
ControlNet Network Communication Rate: 5M
Mounting Type: Chassis
Mounting Location: 1756 ControlLogix Chassis
Maximum Number of nodes: 99
Maximum Connections Supported: 64
Communication Interface Type: Bridge
Device Type: Communication interface
Power Dissipation: 5.14 W
Thermal Dissipation: 17.5 BTU/hr
Backplane Current: 970 mA @ 5.1 V, 1.7 mA @ 24 V
Isolation Voltage (continuous-voltage withstand rating): 50 V tested to 500 V ac for 60 seconds
