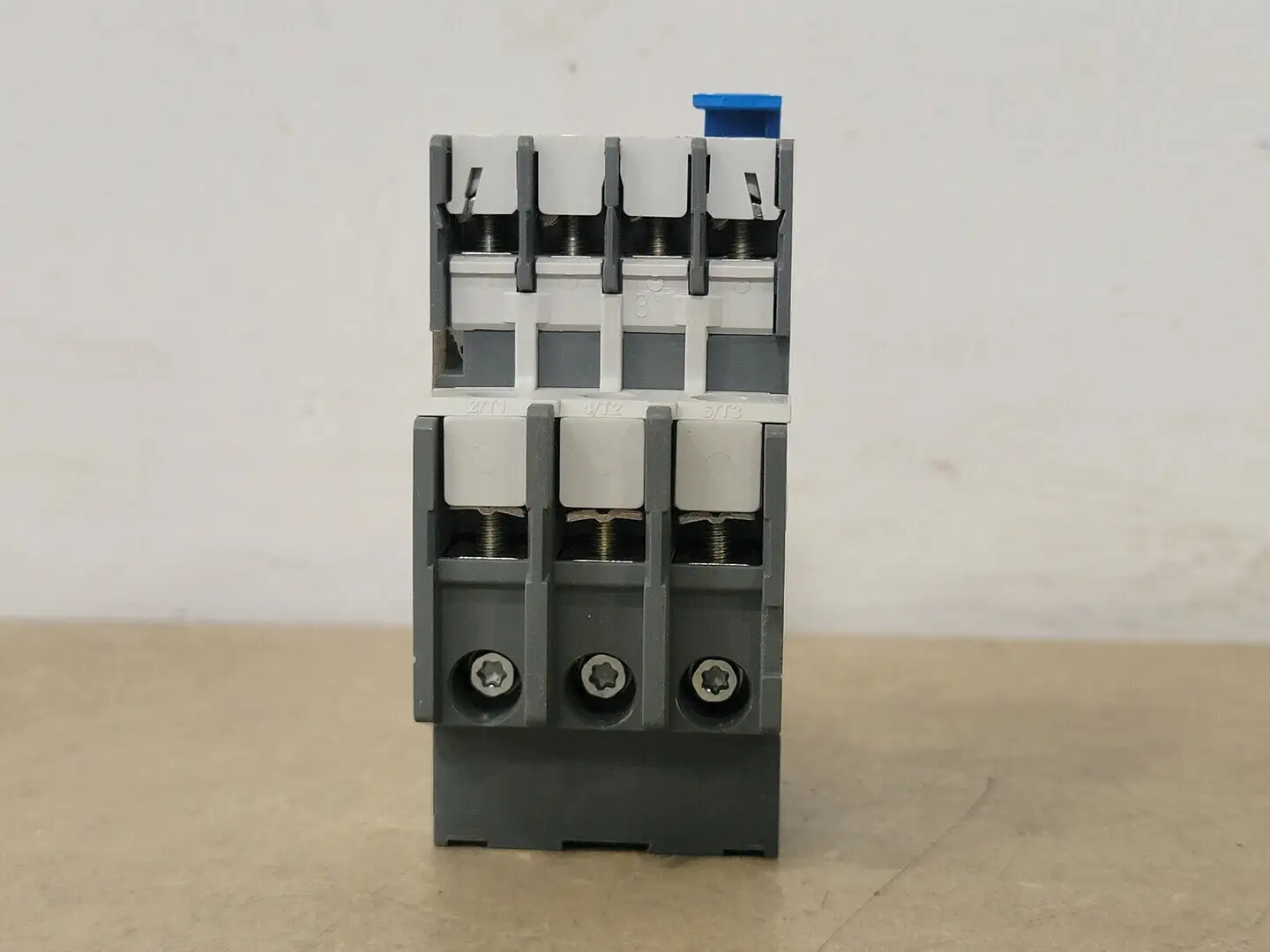

USED ABB TA25

Amps: 10 amps
Voltage: 600 volts
Current Adjustment Range: 0.1 A to 25 A
Trip Class: Class 10A
Standards Compliance: EN/IEC 60947-4-1/-5-1, GB 14048.4/.5
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 600 V AC
Rated Frequency: 50/60 Hz
Auxiliary Contacts: 1 Normally Closed (95-96), 1 Normally Open (97-98)
Coordinated Fuse Types: gG/gL and aM
Maximum Fuse Size: Up to 100 A depending on current setting
Mounting Type: Contactor-mounted (typically used with ABB contactors)
Wiring Type: Copper wire only, 16-8 AWG
Terminal Torque: 12 lb-in
Ambient Temperature Range: -20C to +60C (typical for this series)
Short-Circuit Protection: Requires external fuses or circuit breakers
Control Voltage for Aux Contacts: 250 V max
Switching Capacity (AC-15): 240 V, 3 A (NO), 1.9 A (NC)
Switching Capacity (DC-13): 250 V, 0.27 A (NO), 0.15 A (NC)
