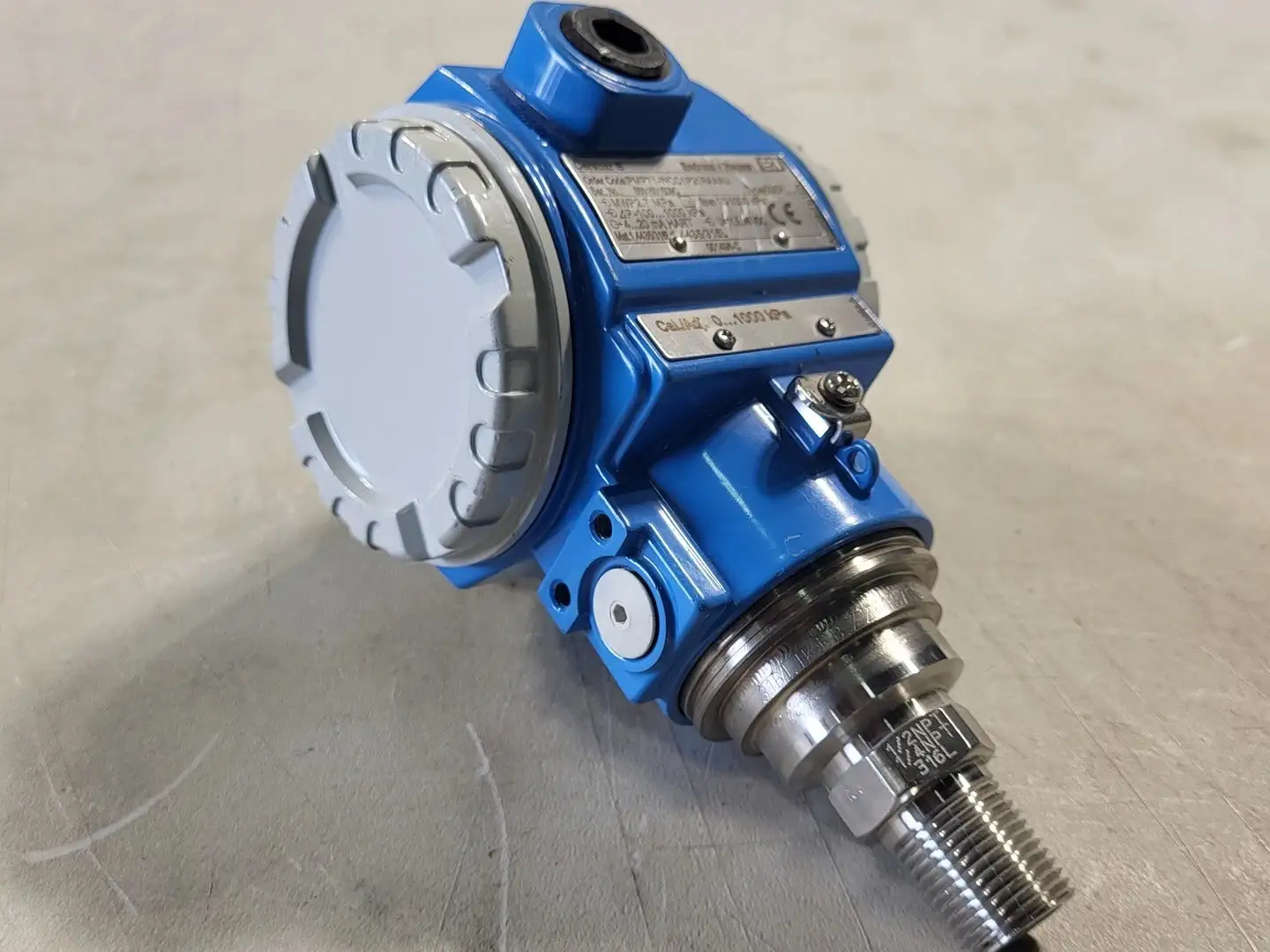

NEW ENDRESS+HAUSER PMP71-WCC1P21RAAAU

Approval: CSA Class II, III Division 1, Groups E-G (Dust Ex)
Output/Operation: 4...20mA HART
Max. Working Pressure: 2.7MPa
Span: 10/1000kPA
Housing/Cable Entry/Protection: Aluminium T14 housing, IP 66/67/NEMA 4X/6P, Thread 1/2 NPT
Sensor Range: 10bar/1MPa/150psig
Sensor Overload Limit: 40bar/4MPa/600psig
Calibration/Unit: Sensor range, kPa/MPa
Membrane Material: AISI 316L
Process Connection/Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)
Fill Fluid: Silicone Oil Fill
