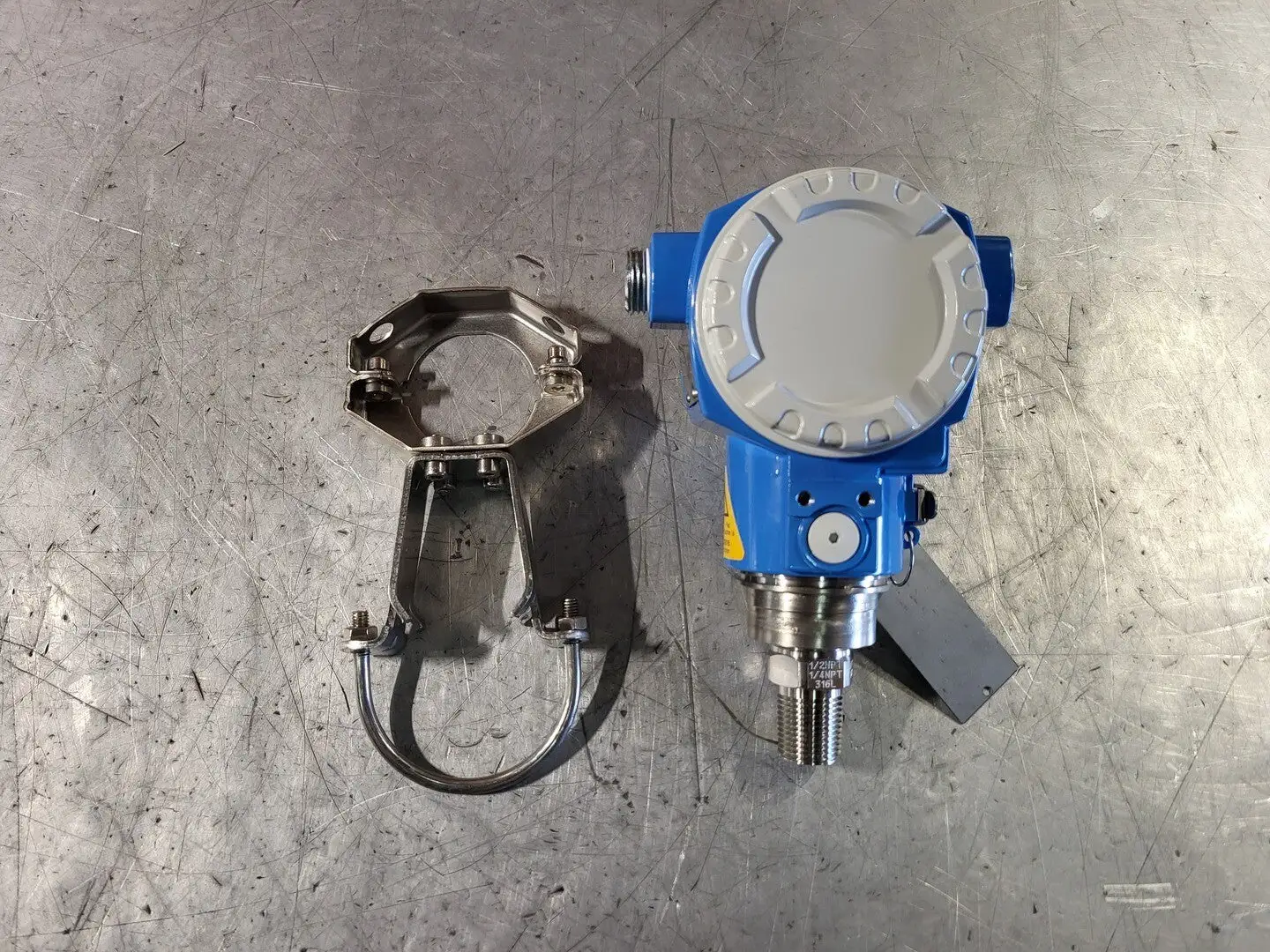

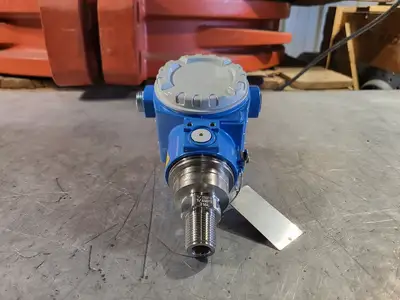

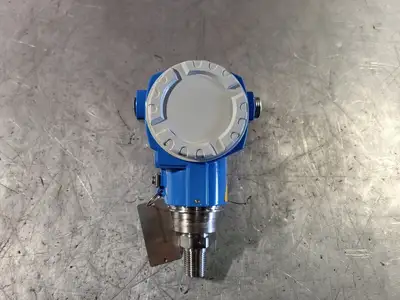

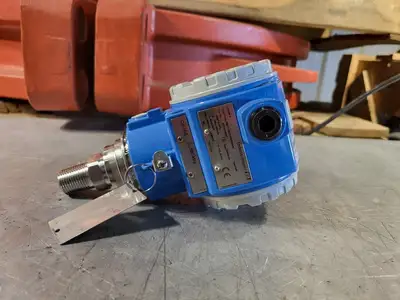

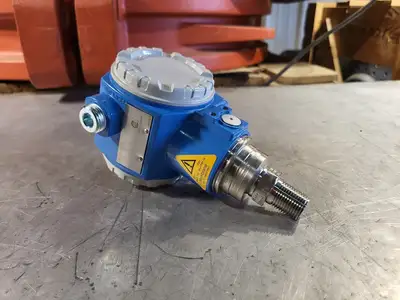

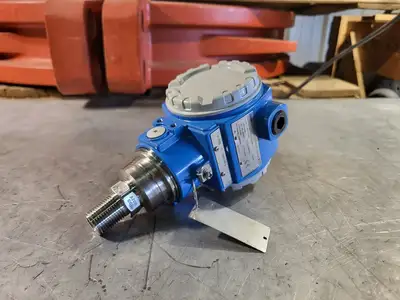

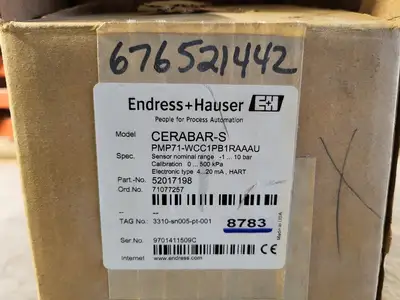

NEW ENDRESS+HAUSER PMP71-WCC1PB1RAAAU

Approval: CSA Class II, III Division 1, Groups E-G (Dust Ex)
Output; Operation: 4...20 mA HART
Housing; Cable Entry; Protection: Aluminium T14 Housing, optional display on side, IP 66/67/NEMA 4X/6P, Thread 1/2 NPT
Sensor Nominal Range: -1...10bar
Calibration: 0...500kPa
Sensor Range: kPa/MPa
Membrane Material: AISI 316L
Process Connection; Material: Thread ANSI 1/2 MNPT 1/4 FNPT, AISI 316L (CRN)
Fill Fluid: Silicone Oil Fill
Additional: AISI 304 Wall/Pipe Mounting Bracket
