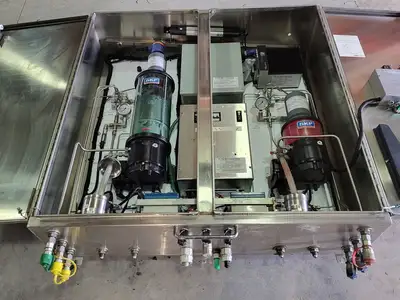

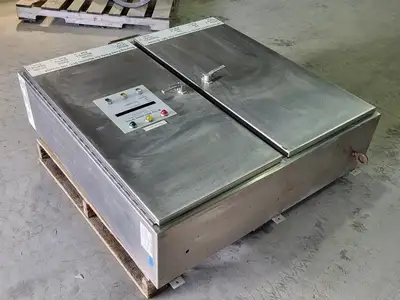

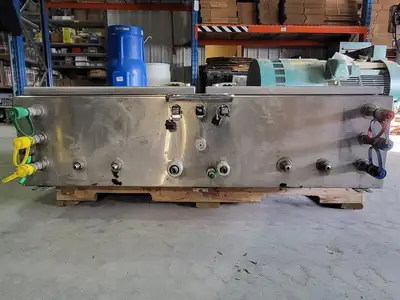

USED WEIR-JONES AS-0371-01

Type: Bolted
Length: 4 ft
Width: 4ft
Depth: 12 Inches

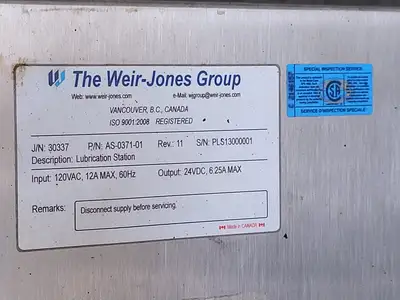

Input: 120VAC, 12A Max., 60hz
Output: 24VDC, 6.25A Max.

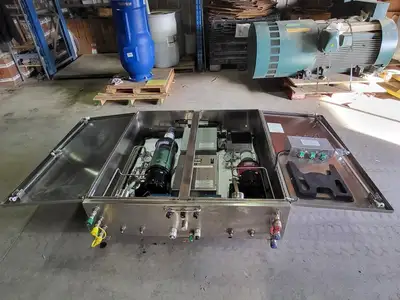

Major Components:
Enclosure: HOFFMAN 48in. x 48in. x 12in. Wall-Mount, 2-Door Enclosure A48H4812WFSSLP3PT, Type 3R, 4, 4X, 12

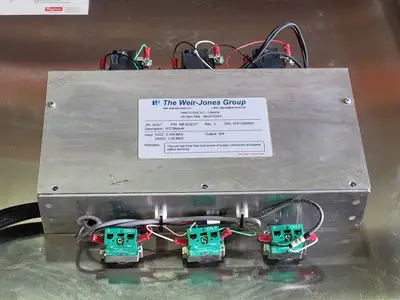

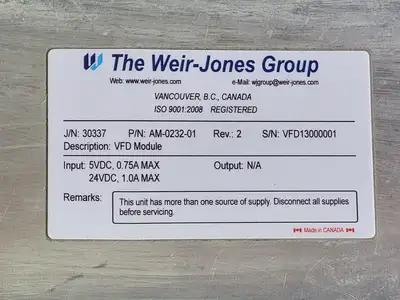

VFD Module: WEIR-JONES Variable Frequency Drive (VFD) Module, P/N AM-0232-01, S/N VFD13000001,
Input: 5VDC, 0.75A Max.; 24VDC, 1.0A Max.
Signal Junction Module: WAGS Signal Junction Module, P/N AS-0386-01, S/N JBS13000001
Input: 5VDC-12VDC, 0.1A Max.

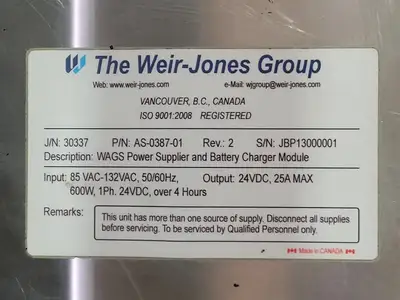

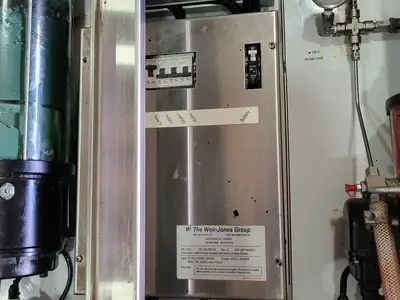

Power Supply/Battery Charger Module: WAGS Power Supplier & Battery Charger Module, P/N AS0387-01, S/N JBP13000001
600W, 1-Ph, 24VDC, Over 4hrs
Input: 85VAC-132VAC, 50/60hz
Output: 24VVDC, 25A Max.

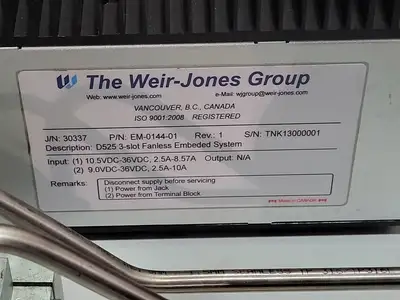

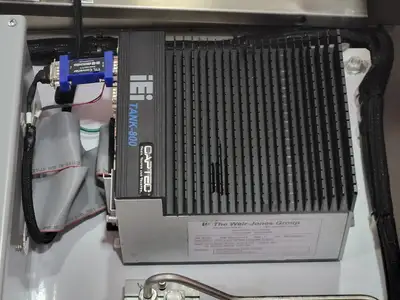

Fanless Embedded Computer System: IEI Intel D525 3-Slot Fanless Embedded System TANK-800-D525, P/N EM-0144-01, S/N TNK1300001
 Intel Atom D525 1.8 GHz dual-core processor
On-board 1GB DDR3 memory and one DDR3 SO-DIMM slot (system max. 3GB)

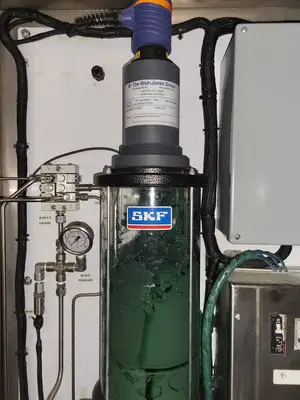

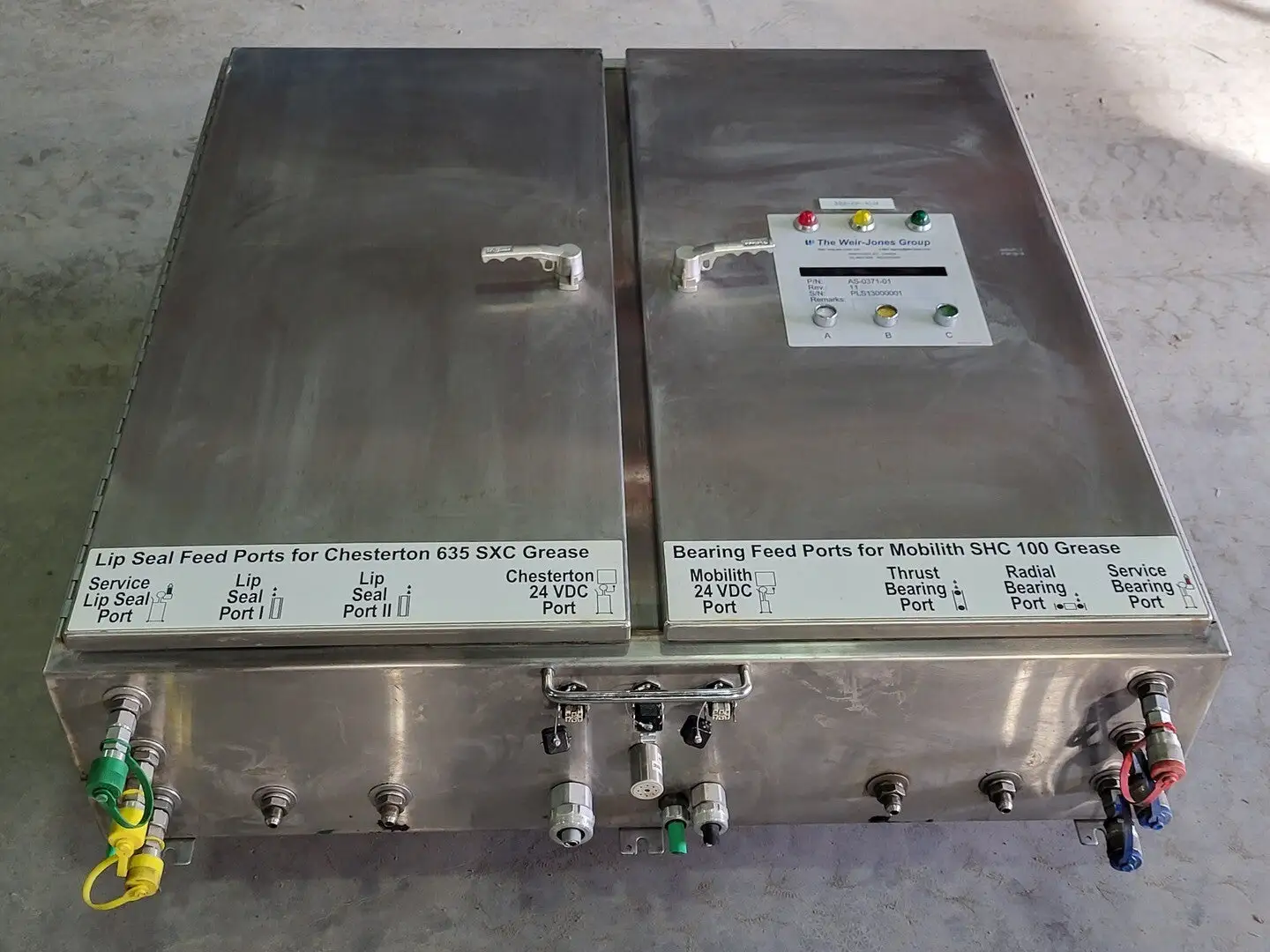

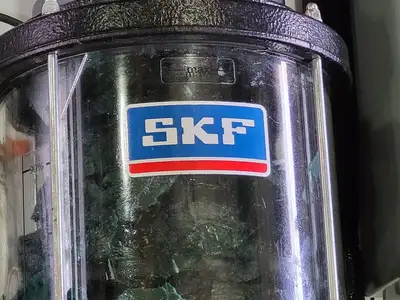

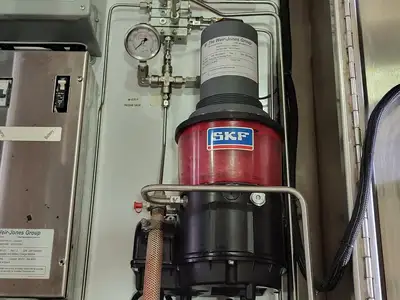

Lubrication Pump #1: SKF 10kg Pump for Lip Ports, P/N AM-0199, S/N PLP13000001

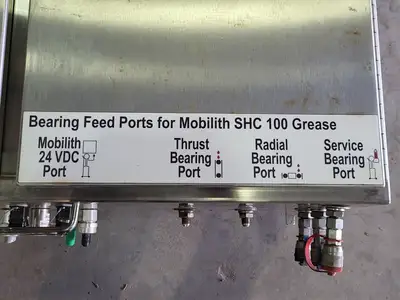

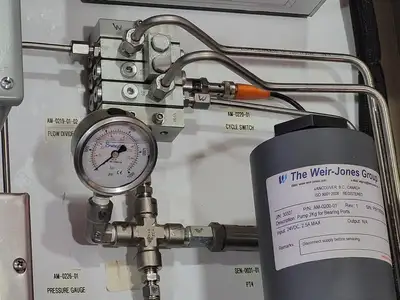

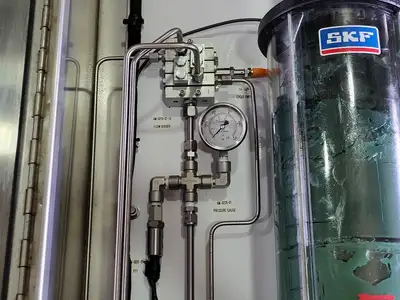

Lubrication Pump #2: SKF 2kg Pump for Bearing Ports, P/N AM-0200-01, S/N PBP13000001
