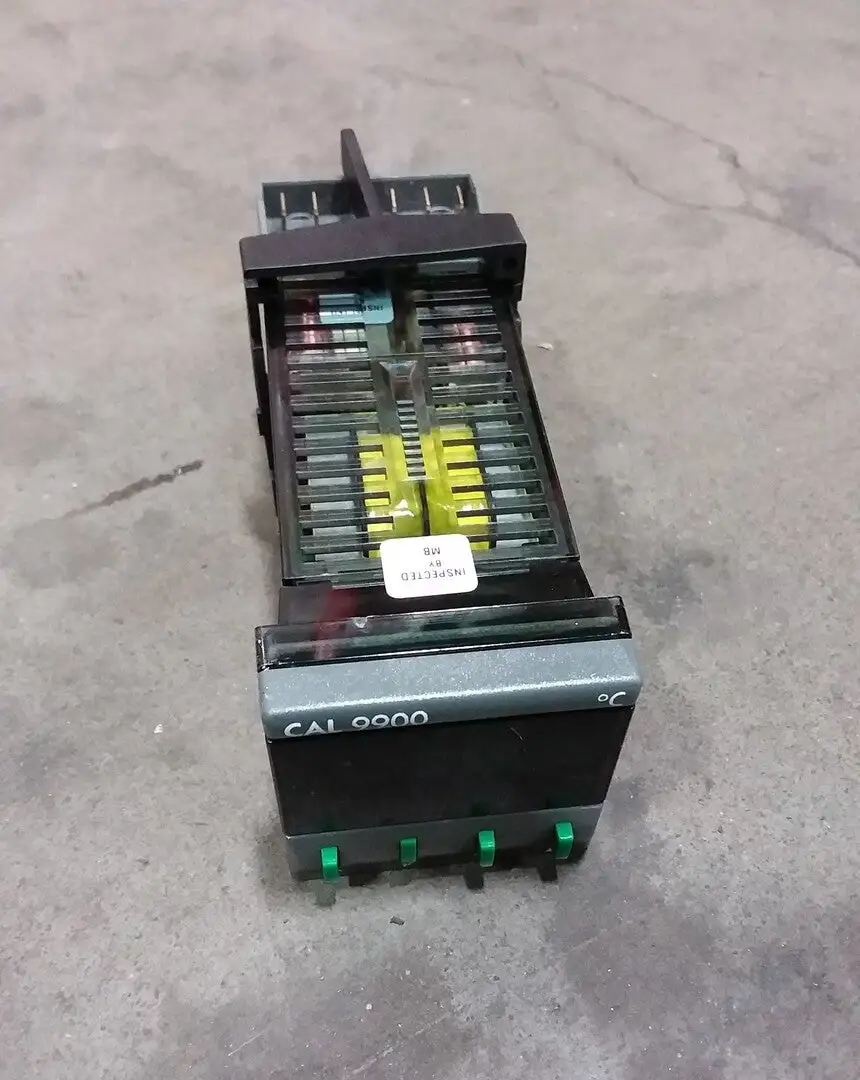

USED CAL CONTROLS 99112C

Dimensions and Size: 48mm x 48mm x 114mm (H x W xD), 1/16 DIN
Type: Single Loop Controller
Terminal Type: 11 Pins Base (only for 2 outputs version)
Primary Input Type: Thermocouple: B, E, J, K, L, N, R, S, T, PT300: 2/3 wire. Linear: 0 to 50 mV, 0/4 to 20 mV
Output Function: Heat, Cool, Alarm
Output Type: Relay (SP1 5A SPDT, SP2 3A SPDT), SSd (5V, 25 mA)
Max. Number of Outputs: 2
Control Type: PID heat only, PID heat cool, ON/OFF
Power Supply: 24 or 115/230Vac, 50-60 Hz +/-15% maximum permitted fluctuation
Communications: None
Panel Sealing: IP54
