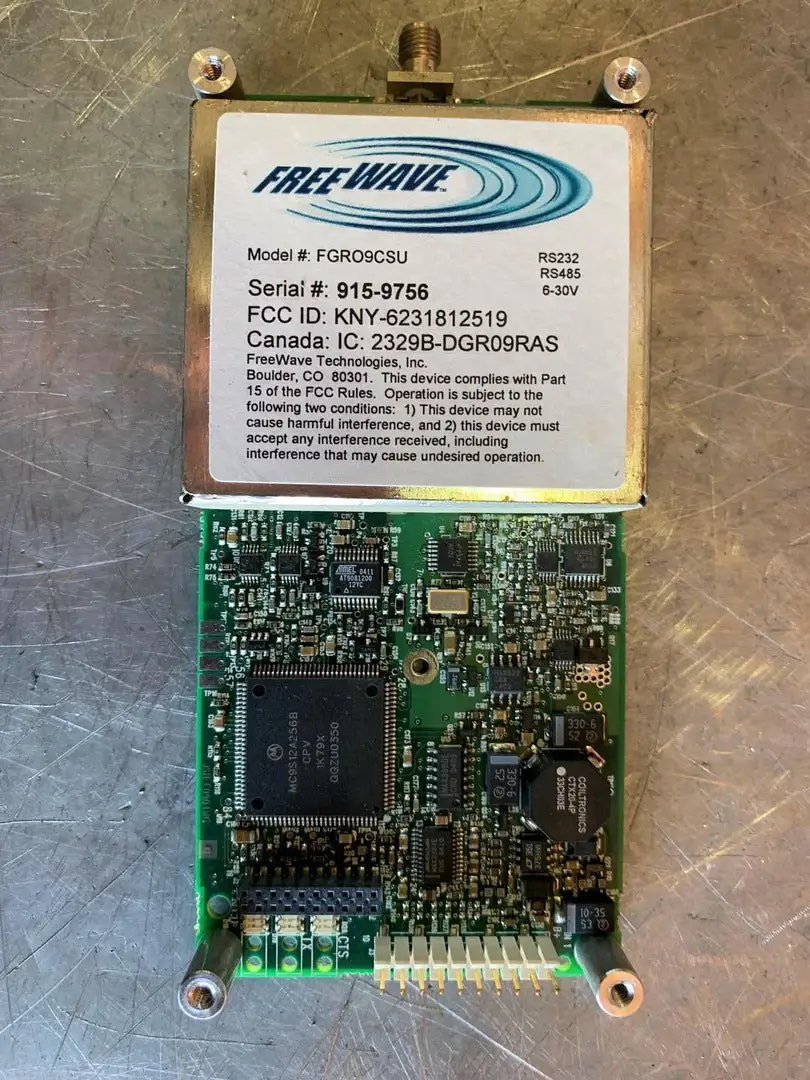

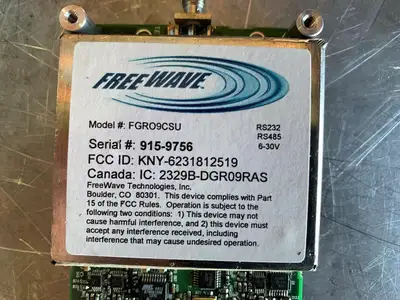

USED FREEWAVE FGR09CSU

Transmitter:-
Frequency: 902-928 MHz (FHSS)
Output Power: 5 mW to 1 watt
Range, Line of Sight: 60 Miles
Modulation: 2 level GFSK, 115.2 Kbps or 153.6 Kbps
Occupied Bandwidth: 230 kHz
Hopping Patterns: 15 per Band, 105 total, user selectable
Hopping Channels: 50 to 112, user selectable
Hopping Bands: 7, user selectable
Frequency Zones: 16 Zones, 7 Channels per zone
RF Connector: Type SMA
Receiver:-
Sensitivity: -108 dBm for BER 1 x10 -6, -110 dBm for BER 1 x 10 -4
Selectivity: 20 dB at fc +/- 230 kHz
System Gain: 140 dB
Data Transmission:-
Error Detection: 32 bit CRC, Retransmit on Error
Data Encryption: Substitution, Dynamic Key
Link Throughput: 115.2 Kbps standard speed, 80 Kbps low speed
Data Interface: Serial
Protocol: RS232/ 485/ 422, 1200 Baud to 115.2 KBaud
Data Connector: 10-pin header with locking ramp, 0.1 inch spacing, power/data connector
Digital Interface (Connector):- Separate 20-pin PCB header
Power Requirement (Operating Voltage):- 6 to 30 VDC
Operating Temperature:- -40 deg. C to 75 deg. C
Humidity:- 0 to 95% non-condensing

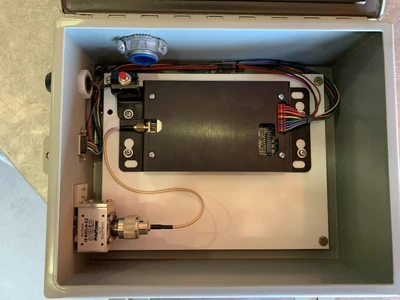

Enclosure:-

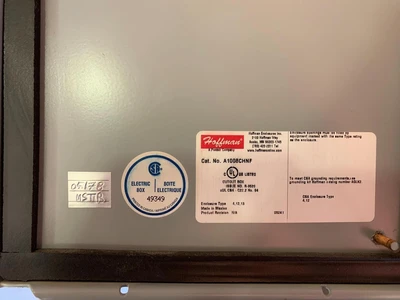

Make: Hoffman
Model: A1008CHNF
Depth: 4 in.
Height: 10 in.
Width: 8 in.
Mounting: Panel
