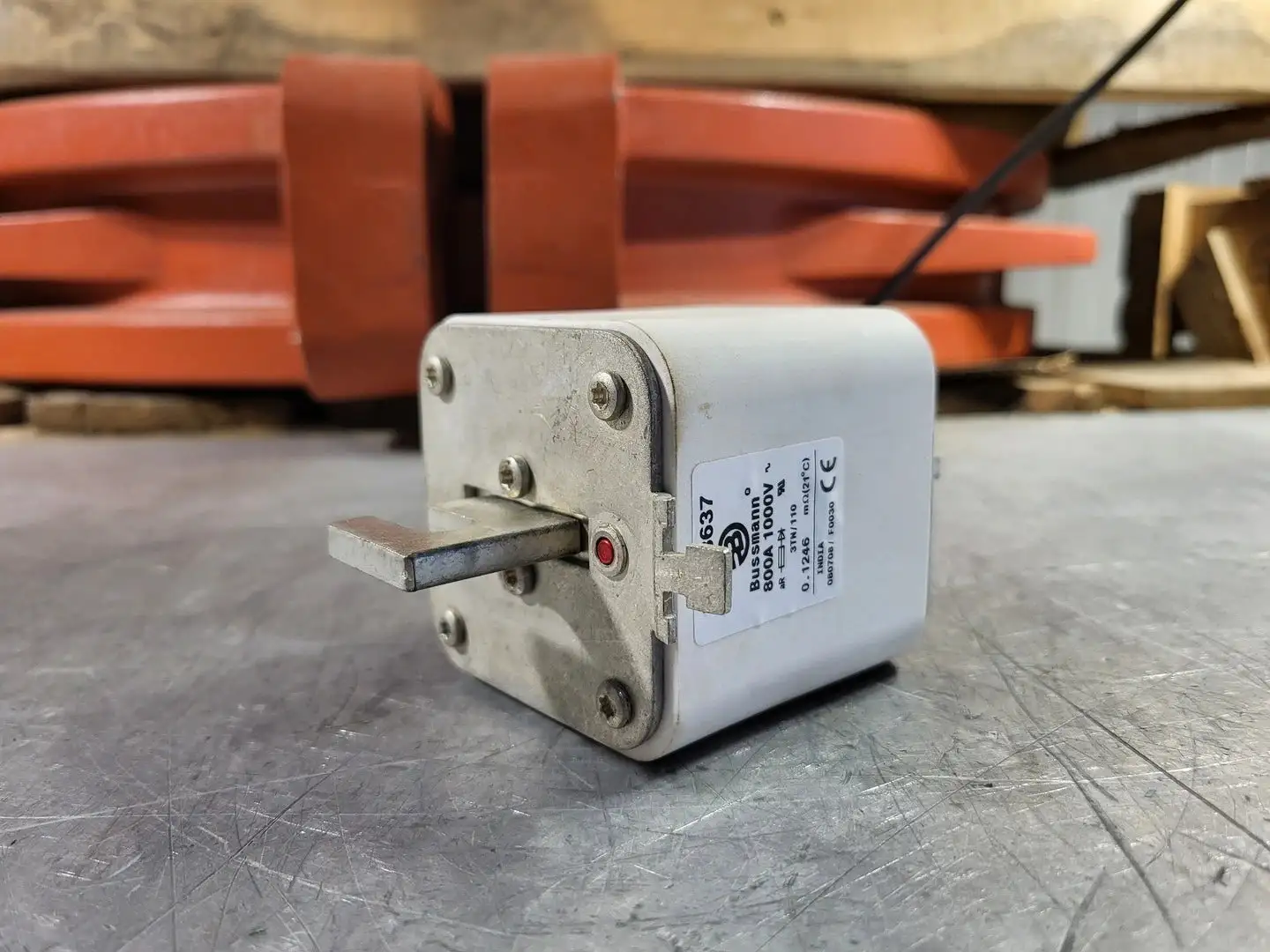

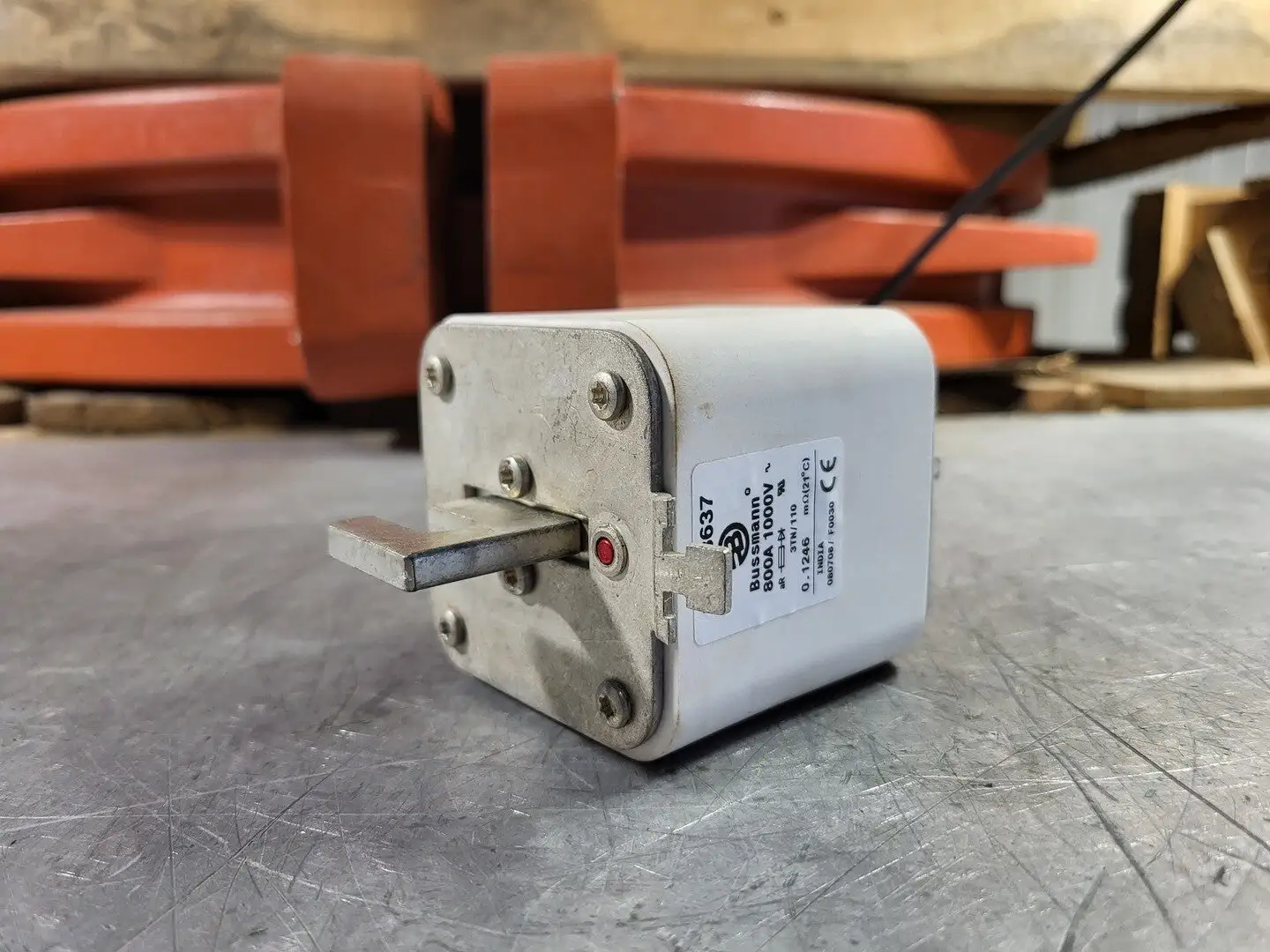

NEW BUSSMAN 170M8637

Amps: 800 amps
Voltage: 1000 volts
Phase: Single-phase
Fuse Type: Low Volt
Current Type: AC
Class: Class aR
Interrupting Rating: 125 kA
GENERAL SPECIFICATIONS
PRODUCT NAME: Eaton Bussmann series high speed square body fuse
CATALOG NUMBER: 170M8637
MODEL CODE: FUSE 800A 1000V 3TN/110 AR UR
EAN: 5996516022627
UPC: 051712604390
PRODUCT LENGTH/DEPTH: 141 mm
PRODUCT HEIGHT: 76 mm
PRODUCT WIDTH: 82.5 mm
COMPLIANCES: CE Marked / RoHS Compliant
CERTIFICATIONS: IEC Rated / UL Recognized
MODEL CODE: FUSE 800A 1000V 3TN/110 AR UR
ELECTRICAL DATA
CLEARING (I2T) : 1050000 at 1000 V
PRE ARC (I2T): 170000
WATT LOSSES: 135 W
BREAKING CAPACITY: 125 kA
