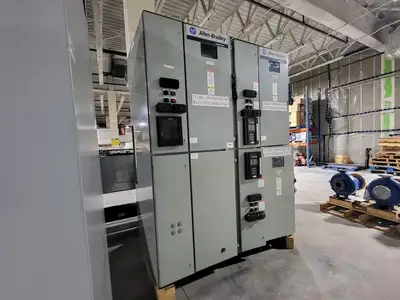

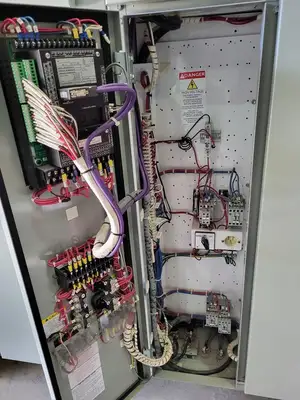

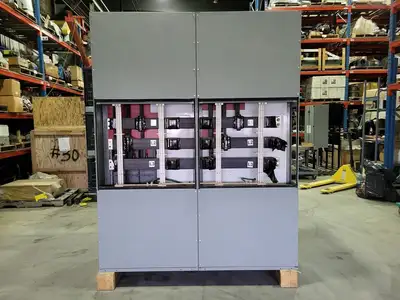

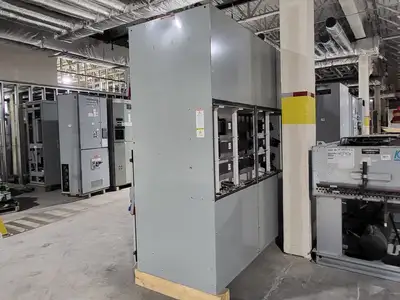

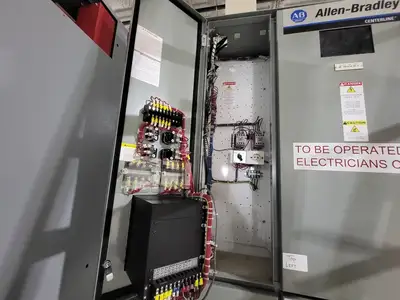

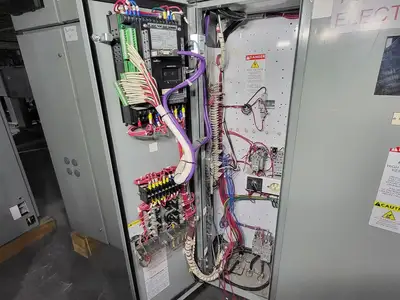

5kV/1200A Medium Voltage MCC Double Structure w/ Motor Protection Relays

Max. Voltage: 5000
Structure 1:
Structure Configuration: 1-High
Series No.: 7006202-005-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Unit Rating: 540A
Structure Total: 540A
Unit Components:
GENERAL ELECTRIC F35 Multiple Feeder Management Relay
ALLEN-BRADLEY Non-load Break Isolation Switch

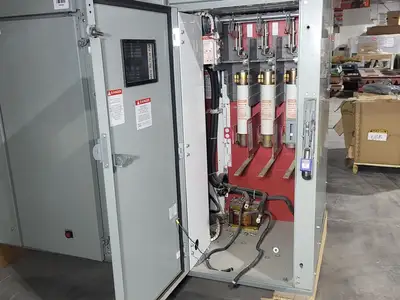

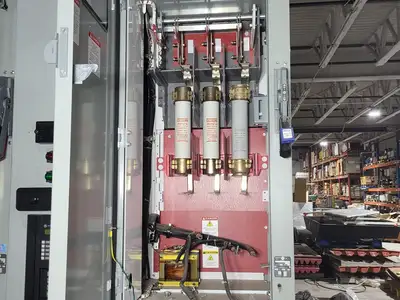

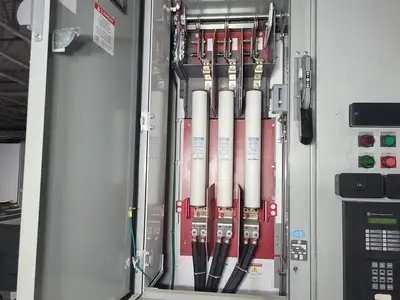

3 x FERRAZ SHAWMUT Fuses A055B2D0R0-600E

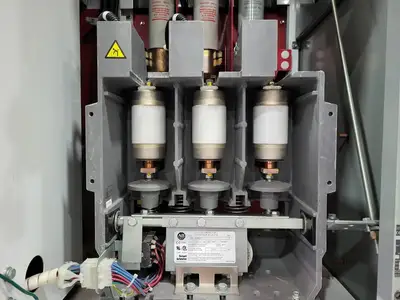

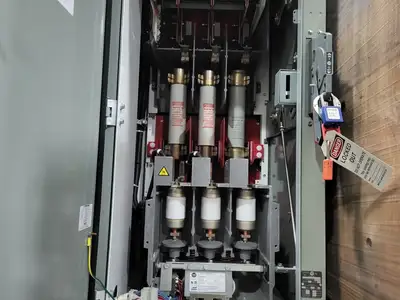

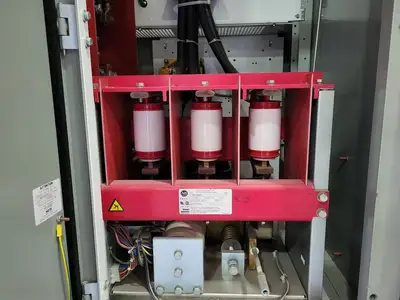

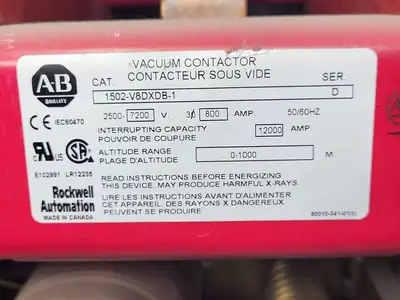

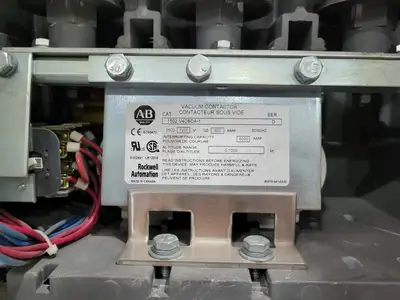

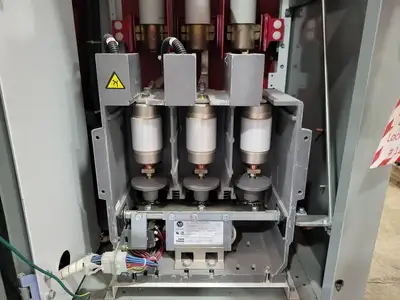

ALLEN-BRADLEY Vacuum Contactor, 2500-7200V, 800A, 12000A Interrupting Capacity
3 x Donut-Type Current Transformers
Structure 2:
Structure Configuration: 2-High
Series No.: 7006202-006-05
Structure Series: L
NEMA Type: 12
Bus Rating: 5000V Max., 1200A, 3-ph
Top Unit Rating: 260A
Bottom Unit Rating: 300A
Structure Total: 560A
Unit Components:

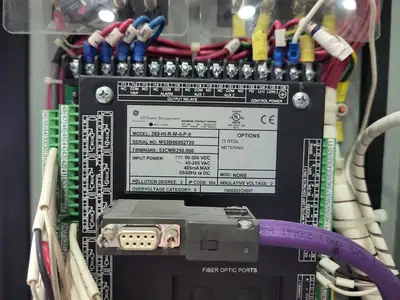

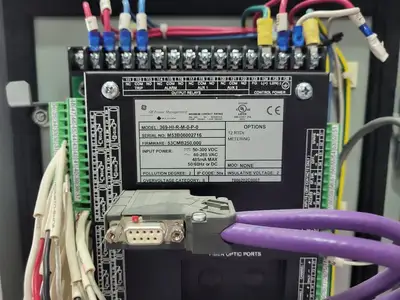

GENERAL ELECTRIC Motor Protection Relay 369-HI-R-M-0-P-0
ALLEN-BRADLEY Non-load Break Isolation Switch

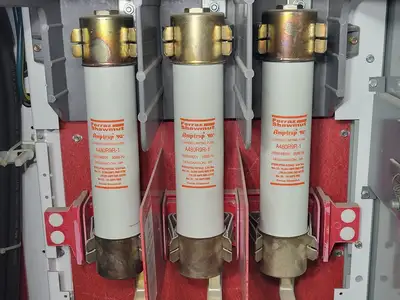

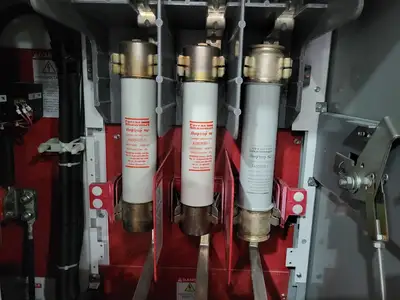

3 x FERRAZ SHAWMUT Fuses A480R3R-1 (Top)
3 x FERRAZ SHAWMUT Fuses A480R9R-1 (Bottom)
3 x Donut-Type Current Transformers
