5kV Motor Control Center (MCC) Unit w/ (4) Breakers & (2) Load-Break Switches

Max. Voltage: 4160

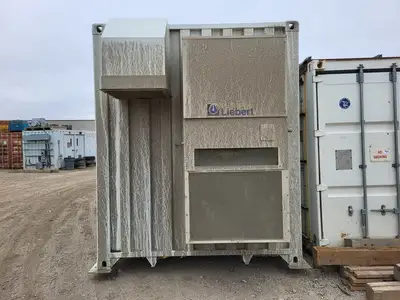

Enclosure: 2-Door, 40ft. Container
Enclosure Features: Fire suppression, HVAC, lighting
Section 1 - IC1074 5kV, 1200A Load-Break Switch:
Model: IC1074
CAT No.: 0921X0562V04A01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 833A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: Bus, Main
FLA: 833A
Section 2 - CR194 4.2kV Two-High Vacuum LIMITAMP Controller:
Configuration: Single-speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT No.: 0921X0562V04B01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 79A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: XFMR, 500kVA
FLA: 69A
Section 3 - CR194 4.2kV Two-High Vacuum LIMITAMP Controller:
Configuration: Single-speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT No.: 0921X0562V04C01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 79A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: XFMR, 500kVA
FLA: 69A
Section 4 - CR194 4.2kV Two-High Vacuum LIMITAMP Controller:
Configuration: Single-speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT No.: 0921X0562V05D01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 79A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: XFMR, 500kVA
FLA: 69A
Section 5 - CR194 4.2kV Two-High Vacuum LIMITAMP Controller:
Configuration: Single-speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: CR194A148P2
CAT No.: 0921X0562V05E01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 79A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: XFMR, 500kVA
FLA: 69A
Section 6 - CR194 4.2kV Two-High Vacuum LIMITAMP Controller:
Configuration: Single-speed, Full Voltage, Non-Reversing/Non-Braking, Fused
Model: N/A
CAT No.: 0921X0562V05F01
Int. Rating: N/A
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: N/A
Horz. Bus Rating: 1190A
Control Circuit: N/A
Power Circuit Max.: 4579V
Load: N/A
FLA: N/A
Section 7 - 5kV, 1200A Load-Break Switch:
Model: IC1074
CAT No.: 0921X0562V05G01
Int. Rating: 350MVA
Phase: 3-Ph
Voltage: 4160V
Continuous Current Rating: 7A
Horz. Bus Rating: 1190A
Control Circuit: 115V
Power Circuit Max.: 4579V
Load: XFMR, 45kVA
FLA: 6A
