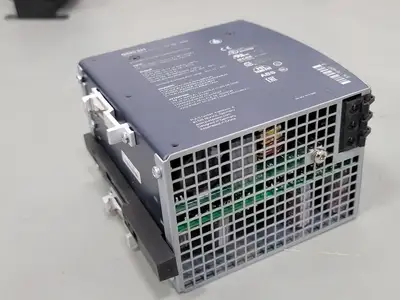

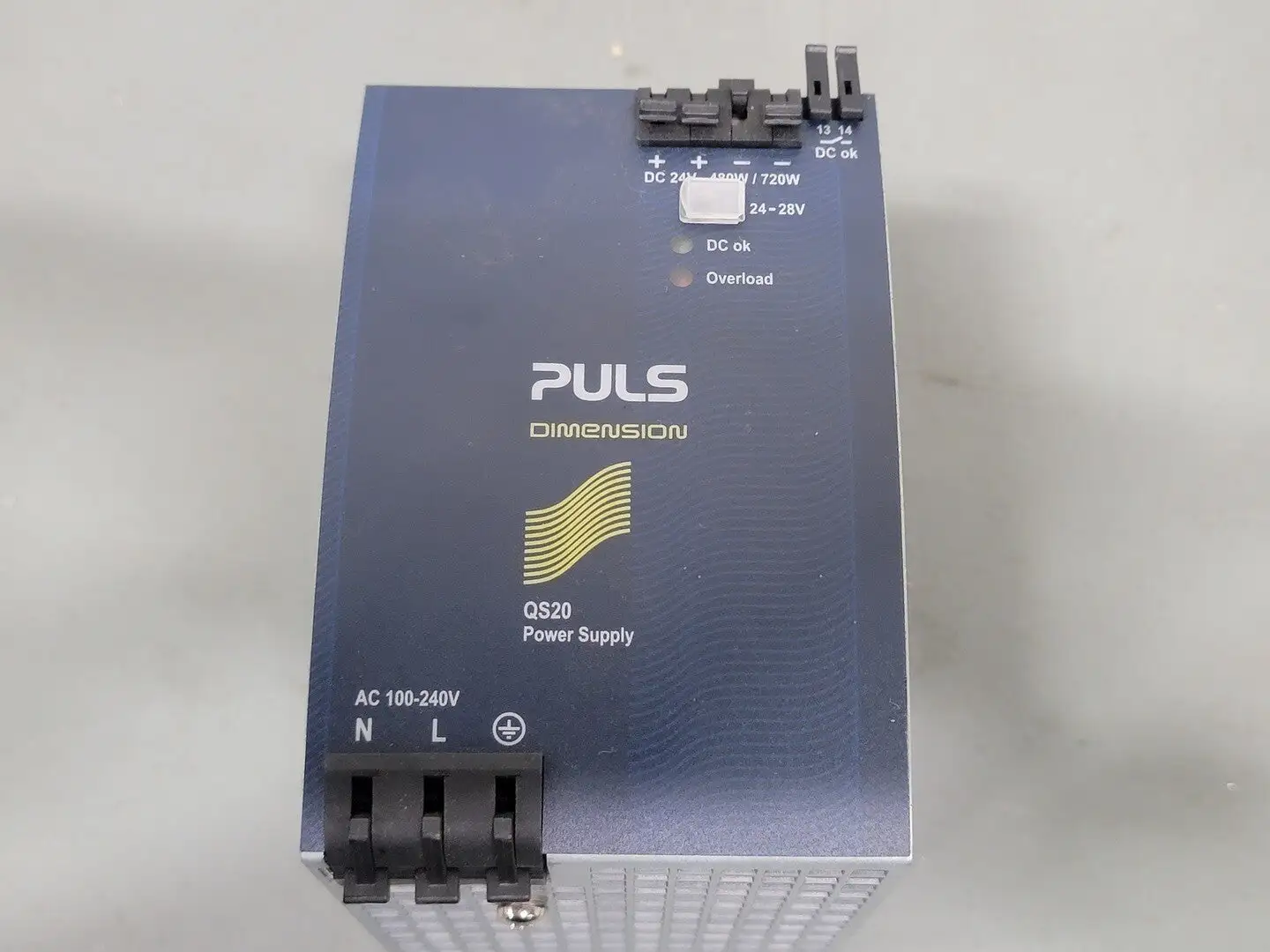

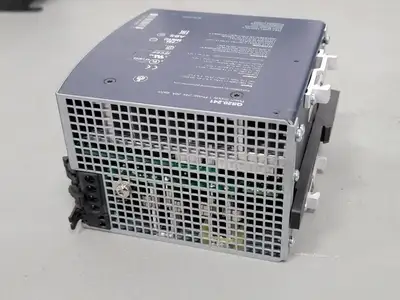

NEW PULS DIMENSION QS20.241

Type: Other
Voltage: 24 volts
Frequency: 50-60 Hz
Features and Specifications:
AC Input voltage: AC 100 - 240 V (15 %)
DC Input voltage: DC 110 V - 150 V (-20 %/+25 %)
Harmonic correction: Active
Power factor: 0.90
Input inrush current: 9 A / 7 A
External input fuse recommendation: B-10 A / C-10 A
Nominal voltage: 24 Vdc
Adjustment range: 24 - 28 V
Output current range: 20 - 17 A
Output current: 17 A at 28 V
Output power: 480 W
Power reserves: 50 % Bonus Power
Derating: 12 W/°C for >+60 °C
Ripple and noise voltage max.: 100 mVpp
